1
Issue Date: 22/05/2022

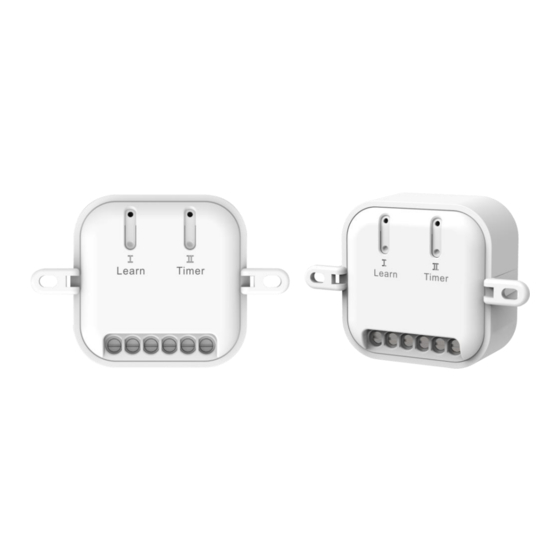

PUSH SWITCH
DELAY-OFF TIMER RECEIVER
MODULE
WBR-2203
AC and Voltage free output receiver module with delay-off timer (0s, 1s, 5s, 30s,
60s).
Compatible with standard wired Push Switch.
Transform electric device(s) to wireless control with receiver module working in
conjunction with ARC wireless remote control and at the same time keeping the
existing wired wall switch.
Compact size especially designed to fit into standard wall box.
32 memories, first in first out storage maintain.
Advertisement
Table of Contents
Related Manuals for ARC WBR-2203
Summary of Contents for ARC WBR-2203

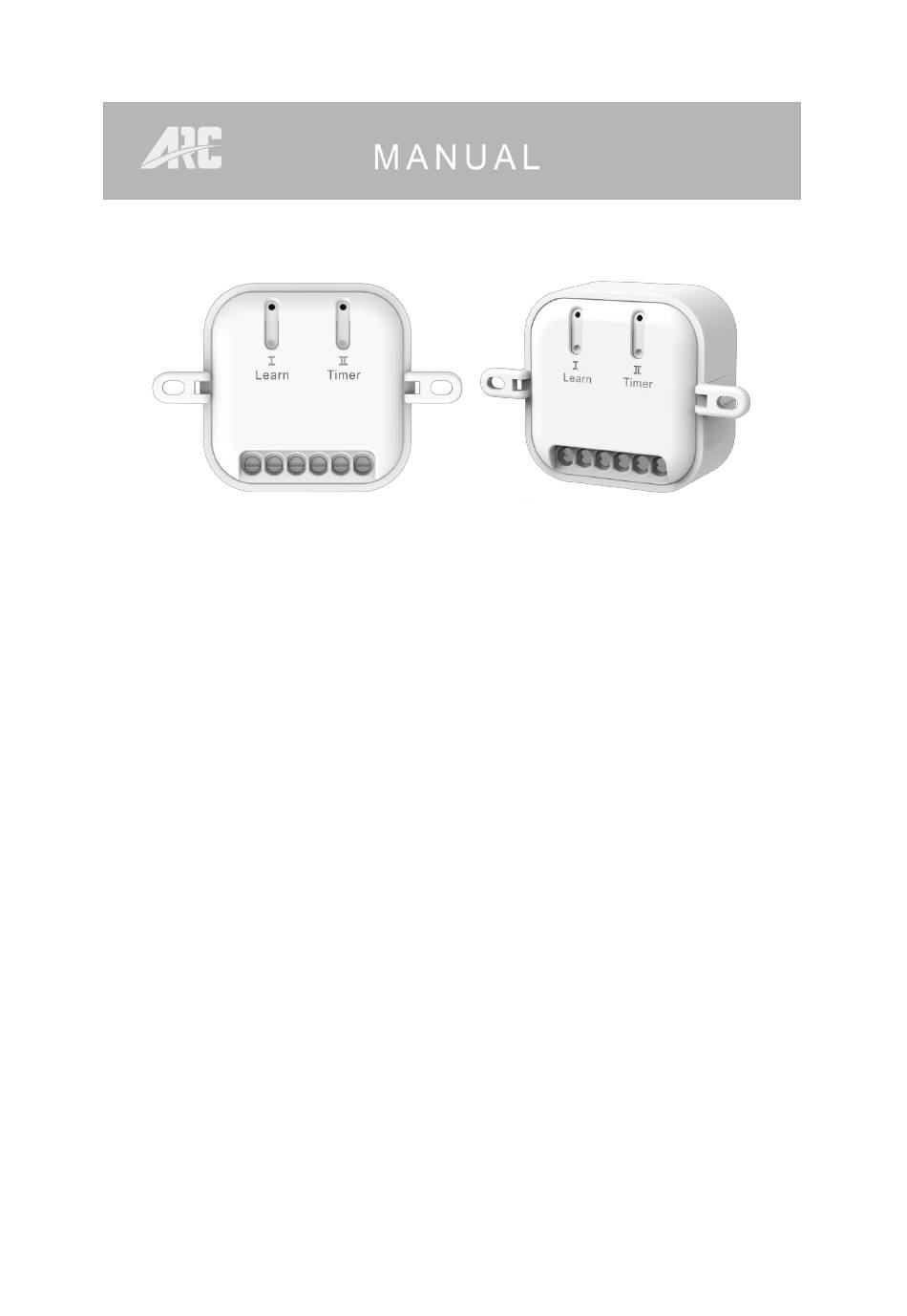

- Page 1 Compatible with standard wired Push Switch. Transform electric device(s) to wireless control with receiver module working in conjunction with ARC wireless remote control and at the same time keeping the existing wired wall switch. Compact size especially designed to fit into standard wall box.
- Page 2 Issue Date: 22/05/2022 Installation – Wiring ⚫ Strip wires at least 7mm then connect the wires as per diagrams below, ensure terminals are properly tightened and no bare wire is visible. ⚫ Suitable wire size for terminal is 1.6mm to 2mm To install module into wall box, break off the mounting tabs.
- Page 3 Issue Date: 22/05/2022 2. Voltage Free (dry port) Wiring: Input AC230V / 50Hz Output Voltage free (dry port) Compatible to push switch only. INSTALLATION - WIRING...
- Page 4 Issue Date: 22/05/2022 Pairing / Un-pairing With ARC remote control AIRING Pairing using LEARNING MODE: 1. Press ‘Learn’ button once (LED on module will flash), this will enter learning mode. 2. With a remote control press the ‘ON’ button; LED on module will flash twice to confirm that the remote control is now paired.
- Page 5 Issue Date: 22/05/2022 Timer Setup 5 Timer Selections: A / B / C / D / E Type Turn Off Number of LED flash Manual On/Off After 1s After 5s After 30s After 60s Setup Procedure: 1. Initial factory pre-set setting is in Type ‘A’ 2.
- Page 6 Issue Date: 22/05/2022 Operation You can control in conjunction with ARC remote control and wired push switch. Each time you turn ON or OFF the module, the number of LED flash will represent the timer you’ve setup in. Operation via Push Switch...
- Page 7 Issue Date: 22/05/2022 Specifications Input Rating: 230V~50Hz Output Rating: 1. AC Output 2300W Resistive Load 2. Voltage Free (Dry port) Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: up to 50 m indoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU...
