ARC ZBCMR-300 Manual

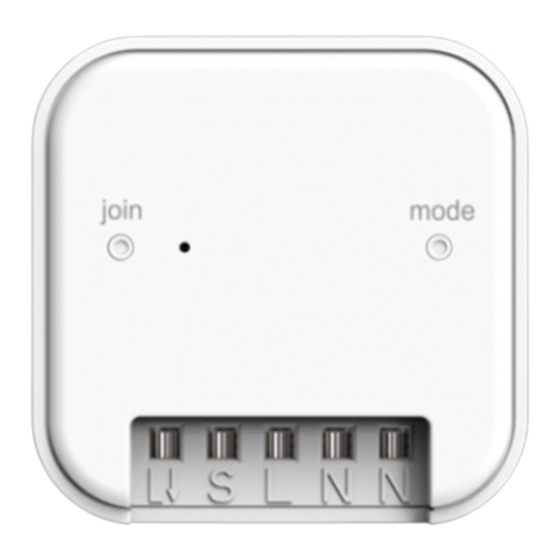

Zigbee dimmer module receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Issue Date: 18/04/2022
ZIGBEE DIMMER MODULE
CONTENTS
RECEIVER
ZBCMR-300
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZBCMR-300 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC ZBCMR-300

Summary of Contents for ARC ZBCMR-300

  • Page 1: Table Of Contents

    Issue Date: 18/04/2022 ZIGBEE DIMMER MODULE RECEIVER ZBCMR-300 CONTENTS 1. Overview and features Page 2. 2. Diagrams Page 3. 3. Installation-wiring Page 4. 4. Pairing / Factory reset Page 5. 5. Trailing & Leading edge / Filament LED bulb mode Page 7.

  • Page 2: Overview And Features

    Issue Date: 18/04/2022 1. Overview and features ZigBee dimmer module receiver, controlled by control panel app, wired wall switch or directly by ZigBee remote. Main features; • ZigBee dimmer module based on latest ZigBee 3.0 protocol. • Simple Join Mode application or TouchLink commissioning. •...

  • Page 3: Diagrams

    Issue Date: 18/04/2022 2. Diagrams Notes for the diagrams: ⚫ Strip wires at least 7mm then connect the wires as per diagrams below, ensure terminals are properly tightened and no bare wire is visible. ⚫ Suitable wire size for terminal is 1.6mm to 2mm DIAGRAMS...

  • Page 4: Installation-Wiring

    Issue Date: 18/04/2022 3. Installation – Wiring Do wiring according to connection diagram correctly. Cut off main power before installing and wiring. 1. Remove current Live-in AC 230V wire & Neutral-in AC 230V wires from the existing wall switch. 2. Connect Live-in AC 230V wire & Neutral-in AC 230V wires into module terminal ‘L &...

  • Page 5: Pairing / Factory Reset

    Issue Date: 18/04/2022 4. Pairing / Factory Reset AIRING 2 Ways of pairing. Join Mode - ZigBee Network Pairing through Coordinator or Hub 1. Remove the device from previous ZigBee network if it has already been added to, otherwise pairing will fail. (please refer to “Factory Reset Manually) 2.
  • Page 6 Issue Date: 18/04/2022 ACTORY ESET Removing from a ZigBee Network through Coordinator or Hub Interface 1. From your ZigBee controller or hub interface, choose to delete or reset the module receiver as instructed. 2. Once successful reset, the connected output will flash twice to confirm. Factory reset thru a ZigBee Remote (TouchLink Reset) 1.

  • Page 7: Trailing & Leading Edge / Filament Led Bulb Mode

    Issue Date: 18/04/2022 5. Trailing & Leading Edge / Filament LED Mode Setup Initial factory pre-set is at ‘Trailing Edge’. Depending on the output you are using, please use the appropriate setting. To change between the 3 modes, please follow below setup. Switch in-between Trailing &...

  • Page 8: Operation

    Issue Date: 18/04/2022 7. Operation Depending on the mode you have set up in, when turning ON the Dimmer module the LED on module will flash differently representing Trailing & Leading Edge / Filament LED bulb mode. ⚫ Leading Edge: Amber LED → then ending in Green LED. ⚫...

  • Page 9: Led & Output Indication

    Issue Date: 18/04/2022 8. LED & Output Indication Mode LED Indication Output Indication Initial power ON before entering network, module Green LED on module will flash every 5 seconds No indication will enter join mode. Time out in 60 seconds ⚫...

  • Page 10: Specifications

    Issue Date: 18/04/2022 9. Specifications Input Rating: 230V~50Hz Output Rating: 3~24W Max. LED 300W Max. Incandescent Lamp Radio Frequency: 2.4GHz 1W Power consumption: ºC Environment Temperature: 0-40 Dimension (L x W x H) 47 x 47 x 18mm Weight: 20 g NOTE ⚫...
