Wireless On/Off Receiver Module
Specification
Function:
On / Off
Frequency:
433.92MHz
Input Rating:
220V-240V~ /50Hz.
Output Rating:
Max. 1000W Resistive Load
Overview

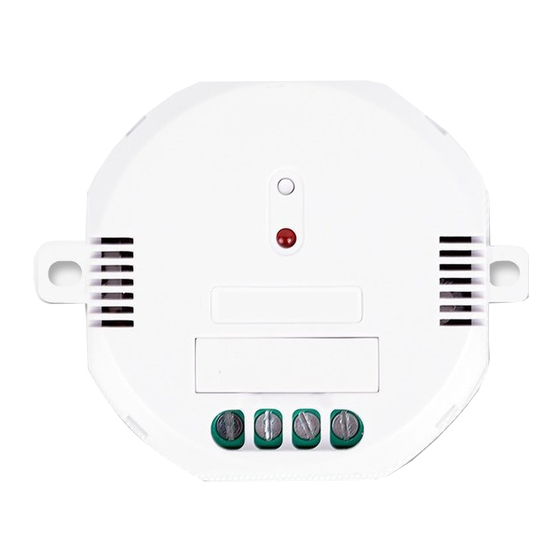

Wireless on/off receiver module
Easy install into wall or ceiling box.
Changeable fuse.
Can pair up to 6 different remote controls.
Maximum load 1000 Watt
LCMR-1000
Version 2.
Advertisement
Table of Contents
Related Manuals for ARC LCMR-1000
Summary of Contents for ARC LCMR-1000

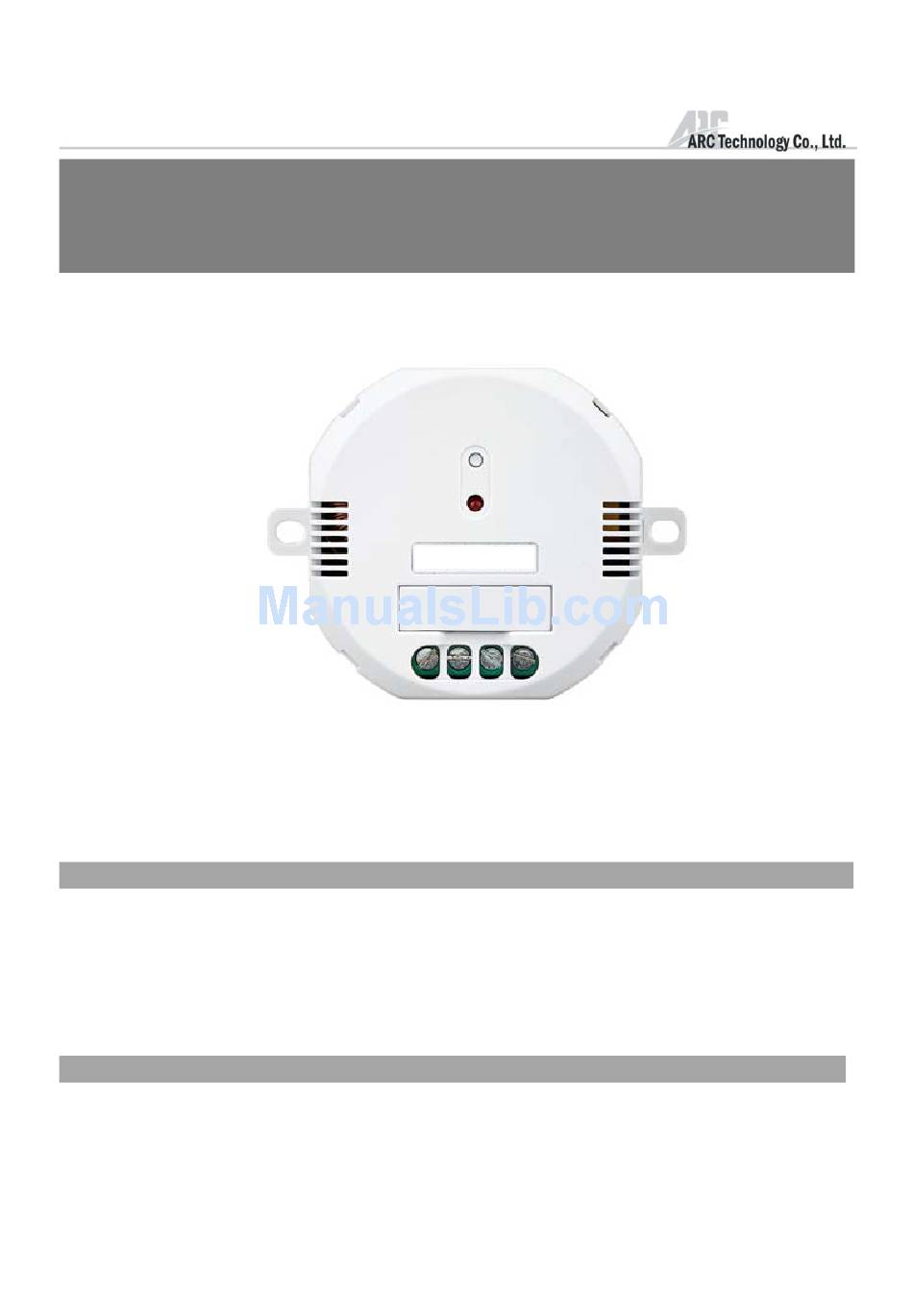

- Page 1 Wireless On/Off Receiver Module LCMR-1000 Specification Function: On / Off Frequency: 433.92MHz Input Rating: 220V-240V~ /50Hz. Output Rating: Max. 1000W Resistive Load Overview Wireless on/off receiver module Easy install into wall or ceiling box. Changeable fuse. Can pair up to 6 different remote controls.
- Page 2 Preparation for installation and use IRING 1. Turn Off mains power before installing and wiring. 2. Connect AC 230V Live / Neutral wire into [IN] Live wire into outer left terminal L. Neutral wire into outer right terminal N. 3. Connect 2 wires into [OUT] 2 output wires into inner terminal and inner terminal N 4.
- Page 3 6. Turn On mains power and proceed pairing module with wireless wall switch or remote control. Pairing Receiver ※ Important※ Load (s) must be under ‘OFF’ state when performing ‘pairing’ and ‘un-pairing’ mode. Module can pair with up to 6 different remote controls at any one time as it has 6 memories. Module is not compatible to “Code Switch”...
- Page 4 2. With a remote control press the ‘ON’ button intended to be paired; load(s) will flash twice to confirm that the remote control is now paired. NOTE: Learning mode lasts for 12 seconds; if no signal is received from a remote control during this time then the module will automatically exit learning mode without pairing the device.
- Page 5 Clearing Memory (will remove all paired remote controls): On the module press the ‘Learn’ button for 6 seconds (LED on module will flash), release then press once again. Load(s) will flash twice to confirm that all remote control is unpaired. Operation ON/OFF Function: Press the ‘ON’...
