USER MANUAL

Model LYCR-300 Dimmer Receiver

FEATURES:

● No wiring, easy operation, just plug and use.
● 67 million codes, self program function receiver.
● Receiver has 6 memory settings, no memory loss forever.
● Red LED indicator for POWER ON and PROGRAMMING SETTINGS.
● Transmitter with 16 receivers control on paged channel.

INSTALLATION:

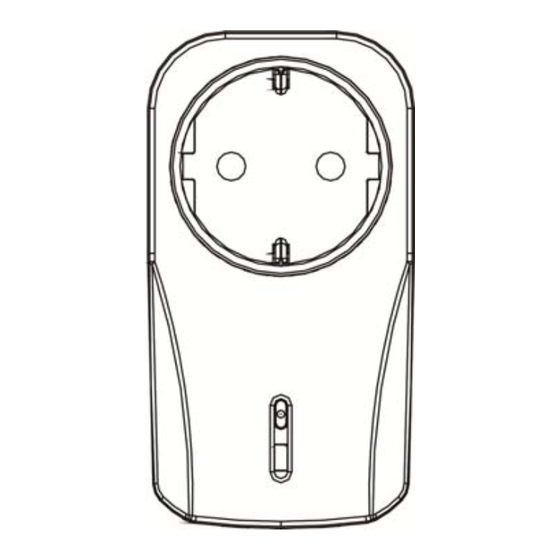

Controller (Receiver)
● Just plug-in receiver into wall outlet
● Indicator on receiver should light on.
● Connect lamp plug into receiver
Remote control (Transmitter)
● Remote control till 30M in open area
:

OPERATION

ON/OFF RECEIVER
* Press transmitter button 'ON' to switch on.
* Press transmitter button 'OFF' to switch off.
DIMMER RECEIVER
* Press transmitter button 'ON' twice, light will start to dim, press again, light stops at required brightness.

HOW TO LINK CODE:

To start, program your transmitter with the receiver.
*
* Receiver plugged on power
* Bring the transmitter near the receiver, push the self program button on receiver once
* Receiver led will blink slowly, press transmitter selected "ON" button
* Receiver connected lamp will blink twice, code is confirmed and led stops blinking.
* Remember the transmitter button you selected for the programmed receiver.
* Transmitter and Receiver codes are auto programmed.

TO CHANGE OR DELETE CODE :

INDIVIDUAL DELETE -
* Push the self program button once, led will blink slowly
* Press selected "OFF" button on transmitter, programmed memory is deleted.
* Receiver connected lamp will blink twice for confirmation.
* Repeat step for re-setting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LYCR-300 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC LYCR-300

Summary of Contents for ARC LYCR-300

  • Page 1: User Manual

    USER MANUAL Model LYCR-300 Dimmer Receiver FEATURES: ● No wiring, easy operation, just plug and use. ● 67 million codes, self program function receiver. ● Receiver has 6 memory settings, no memory loss forever. ● Red LED indicator for POWER ON and PROGRAMMING SETTINGS.

  • Page 2: Fault Finding

    ALL MEMORY DELETE - * Push the self program button till the LED blinking continuously * Release and push again once. * Receiver connected lamp will blink twice for confirmation. * ALL PROGRAMMED MEMORY WILL BE DELETED FROM RECEIVER RECEIVER HAS 6 MEMORY SETTINGS : * Self program function RECEIVER has 6 memory settings.
