USER MANUAL

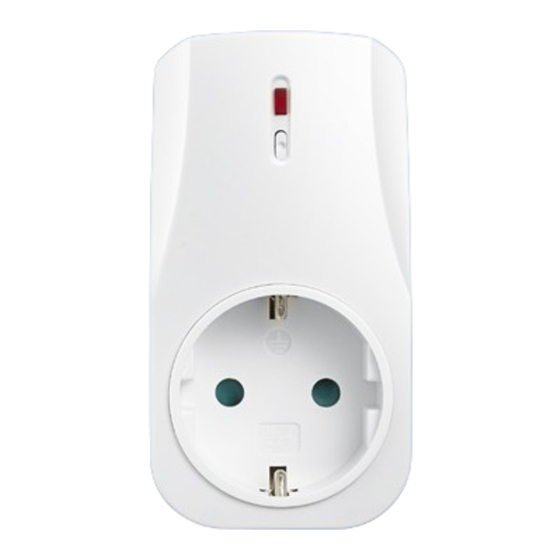

Model LYCR-3500 Receiver
FEATURES:
● No wiring, easy operation, just plug and use.
● 67 million codes, self program function receiver.
● Receiver has 6 memory settings, no memory loss forever.
● Red LED indicator for POWER ON and PROGRAMMING SETTINGS.
● Transmitter with 16 receivers control on paged channel.
INSTALLATION:
Controller (Receiver)
● Just plug-in receiver into wall outlet
● Indicator on receiver should light on.
● Connect lamp plug into receiver
Remote control (Transmitter)
● Remote control till 30M in open area
:
OPERATION
ON/OFF RECEIVER
* Press transmitter button 'ON' to switch on.
* Press transmitter button 'OFF' to switch off.
HOW TO LINK CODE:
To start, program your transmitter with the receiver.
*
* Receiver plugged on power
* Bring the transmitter near the receiver, push the self program button on receiver once
* Receiver led will blink slowly, press transmitter selected "ON" button
* Receiver connected lamp will blink twice, code is confirmed and led stops blinking.
* Remember the transmitter button you selected for the programmed receiver.
* Transmitter and Receiver codes are auto programmed.
TO CHANGE OR DELETE CODE :
INDIVIDUAL DELETE -
* Push the self program button once, led will blink slowly
* Press selected "OFF" button on transmitter, programmed memory is deleted.
* Receiver connected lamp will blink twice for confirmation.
* Repeat step for re-setting
ALL MEMORY DELETE -
* Push the self program button till the LED blinking continuously
* Release and push again once.
Advertisement
Table of Contents
Related Manuals for ARC LYCR-3500
Summary of Contents for ARC LYCR-3500
- Page 1 USER MANUAL Model LYCR-3500 Receiver FEATURES: ● No wiring, easy operation, just plug and use. ● 67 million codes, self program function receiver. ● Receiver has 6 memory settings, no memory loss forever. ● Red LED indicator for POWER ON and PROGRAMMING SETTINGS.
- Page 2 * Receiver connected lamp will blink twice for confirmation. * ALL PROGRAMMED MEMORY WILL BE DELETED FROM RECEIVER RECEIVER HAS 6 MEMORY SETTINGS : * Self program function RECEIVER has 6 memory settings. * It can be programmed as to your requirement with special effect. It can be programmed to switch ON at one time individually or programmed with different combinations switching.
