Instruction Booklet: Dissembling your Scooter

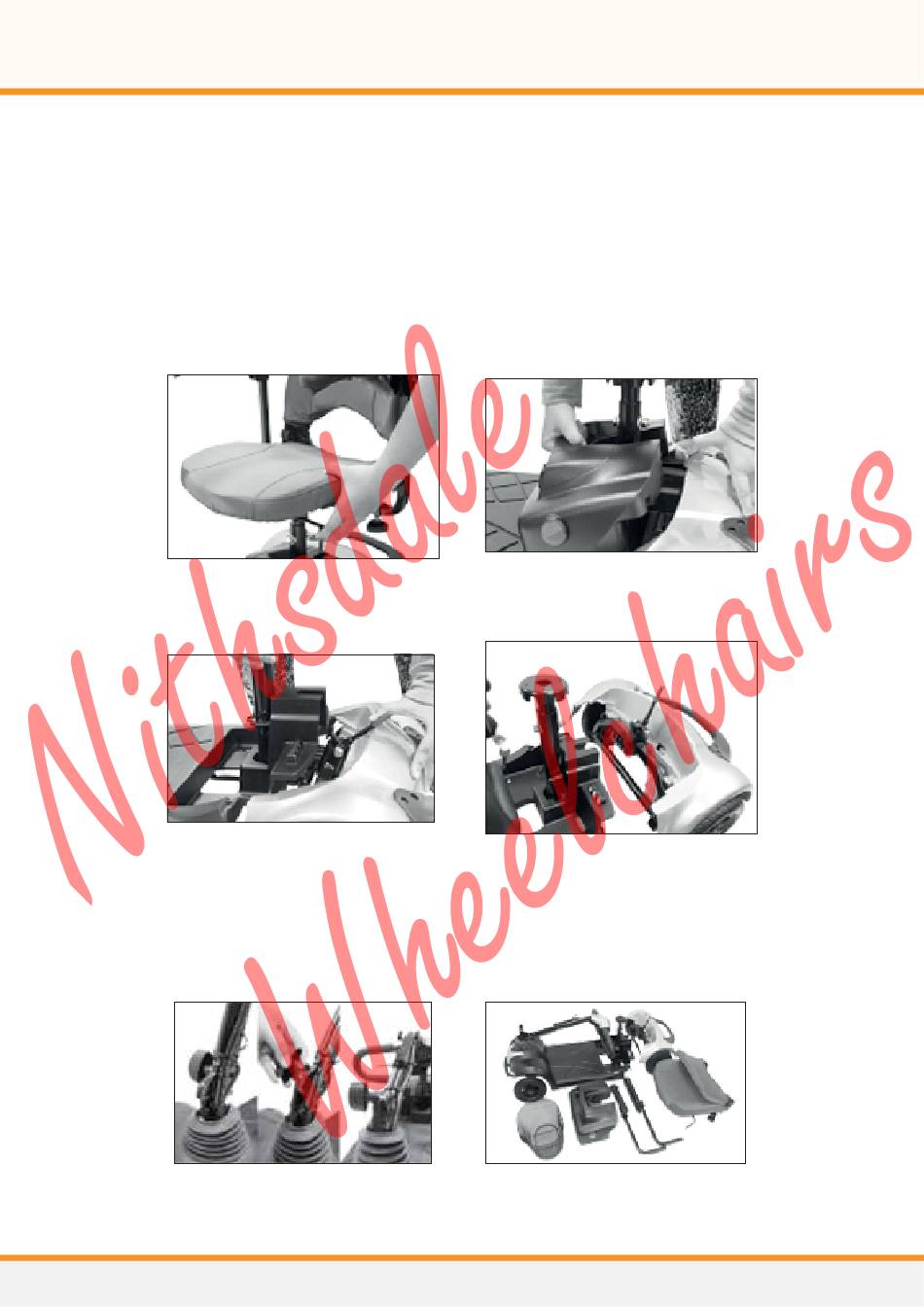

1. Seat disassembling:
Remove seat by lifting seat rotation lever (J). Then rotate seat (K) and lift up away from scooter.
2. Battery pack disassembling:
As indicated, pull battery pack handle (R) to remove battery box (S) from scooter. Caution: Battery
box is heavy. When lifting, please use correct lifting posture to avoid injury. Ask for assistance if
necessary.
CAUTION: When assembling battery pack (S), make sure to aim for the battery terminal
connection for proper electricity conductivity.
K
3. Front and rear frame disassembling:
Hold front & rear frame with release lever (T) to disassemble front and rear frame.
Tiller fold method:
Turn the cap (I) to fold down the tiller (U) to the lowest position as shown below. When the tiller (U)
is in the lowest position it can be locked in place by the adjustment pin.
Competition of disassembling:
The scooter can be disassembled into 7 main parts as shown below.
I
CAUTION: Re-assemble your scooter by reversing the above disassembling procedures.
