Dantel 44022-00 Installation & Operation Manual

About this Practice:
This document has been reissued to:
• Update Figs. 2 and 4.
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
Issue date: July 1998
Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered
44022-00
S
UBSCRIBER
I
NTERFACE
Table of Contents
CAUTION
•
Install or remove modules from the shelf only when the power is off.
If you install a module in the shelf with the power on, the internal
circuitry may suffer damage and the product warranty will be void.
•
Remove and install circuit boards only in a static-safe environment
(use antistatic wrist straps, smocks, footwear, etc.).
•
Keep circuit boards in their antistatic bags when they are not in use.
•
Do not ship or store circuit boards near strong electrostatic, electromag-
netic, magnetic, or radioactive fields.
•
For more complete information on electrostatic discharge safety
precautions, refer to Bellcore
Printed in the U.S.A.
I & O
NSTALLATION
44022-00-0898 <90-00023>
L
M
ODULE

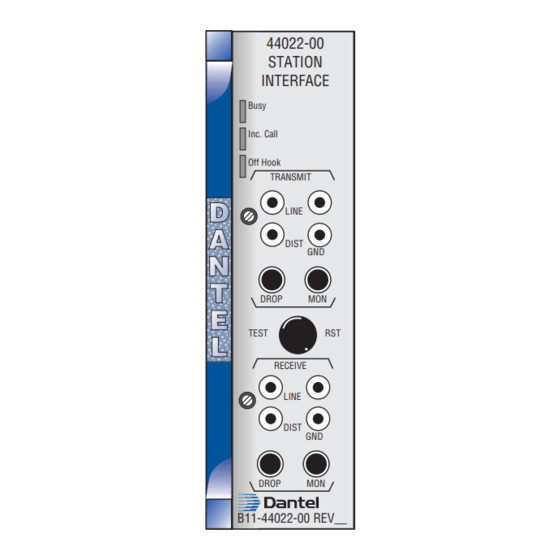

44022-00
STATION
INTERFACE
Busy
Inc. Call
Off Hook
TRANSMIT
LINE
DIST
GND
DROP MON
TEST RST
RECEIVE
LINE
DIST
GND
DROP MON
B11-44022-00 REV__
Technical Reference # TR-NWT-000870.
TM
M
PERATION ANUAL
INE
