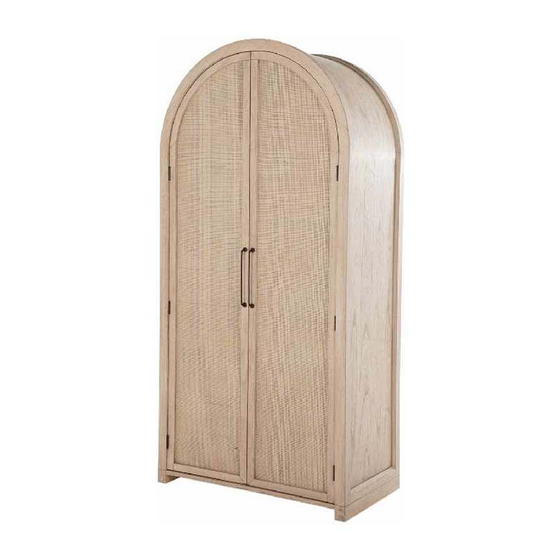

- Page 1 ASSEMBLY INSTRUCTION ELBA CABINET SCH-170430 Component parts Wooden Shelf 2 pcs Handle 2 pcs Hanging Rod 1 pc Date - Nov 28, 2022 Page 1 of 5...
- Page 2 Hardware Pin Shelf 8 pcs Bolt 4 pcs An�-Tip Kit 2 set Tool Required (Not Included) Screwdriver 1 pc Date - Nov 28, 2022 Page 2 of 5...
- Page 3 Important Notes: For Bolt: Insert bolt into female insert in both handles (B) and turn the bolt (D) clockwise using Philip screwdriver un�l �ght, do the same steps to the remaining bolts. Step 2 (Bolt) Step 1 (Bolt) For Pin Shelf: Insert each nail glide (C) into each female insert of the inside of the cabinet and put the wood shelf (A) on top of the nail glides.
- Page 4 Important Notes: For Leveler: If the floor is uneven adjust the levelers located at the underside of the feet, to do this li� the side that need to be elevated to provide access to the levelers, turn the leveler un�l adequate contact with the floor. Step 2 (Leveler) Step 1 (Leveler) For An�-Tip Kit: A�ach the brackets (C) horizontally to the back of the cabinet...
- Page 5 Then insert the other side. The cabinet is ready to use. Step 2 (Hanging Rod) Step 1 (Hanging Rod) Step 4 (Hanging Rod) Step 3 (Hanging Rod) Date - Nov 28, 2022 Page 5 of 5 We hope you enjoy this Gabby purchase.
