GABBY Kensley SCH-167040 Assembly Instruction

ASSEMBLY INSTRUCTIONS

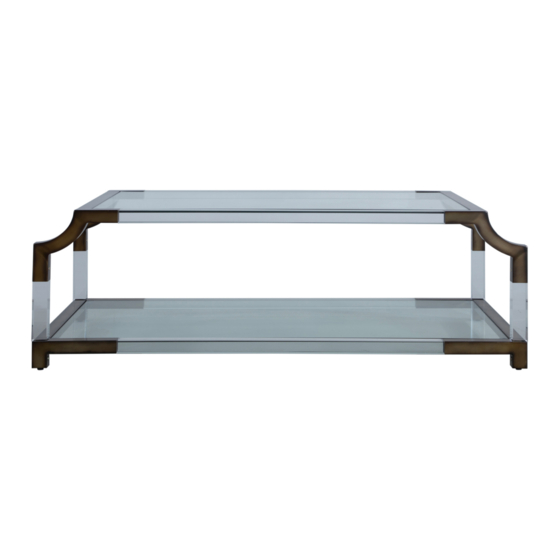

Kensley coffee table
SCH-167040

TOOLS INCLUDE:

Hardware List
NO.
A
Hex head bolt 1/4"x19MM
B
Allen wrench 4MM
C
Glass pad
Prior to assembly, unwrap all the parts and components on a carpeted or non-abrasive surface.
Unwrap the table parts from the packaging.

Step 1:

Insert the leg 3 to the bottom frame 4 with allen wrench（B）to hex head bolts （A),
but not tight.
Put the glass pad （C）on the frame.Then put the larger glass top 5 on the glass

Step 2:

pad carefully.

PARTS INCLUDE:

1-small glass top x1pc
QTY
2-upper frame x1pc
leg x4pcs
3-
8pcs
4-
bottom frame x1pc
1pc
5- larger glass top x1pc
8pcs
Please put this end of the leg
on the bottom !
3
A
4
B
c
1
5
5
2
3
4
P. 1 of 2
