Summary of Contents for Rego-fix reCool RCS/ERMX 16

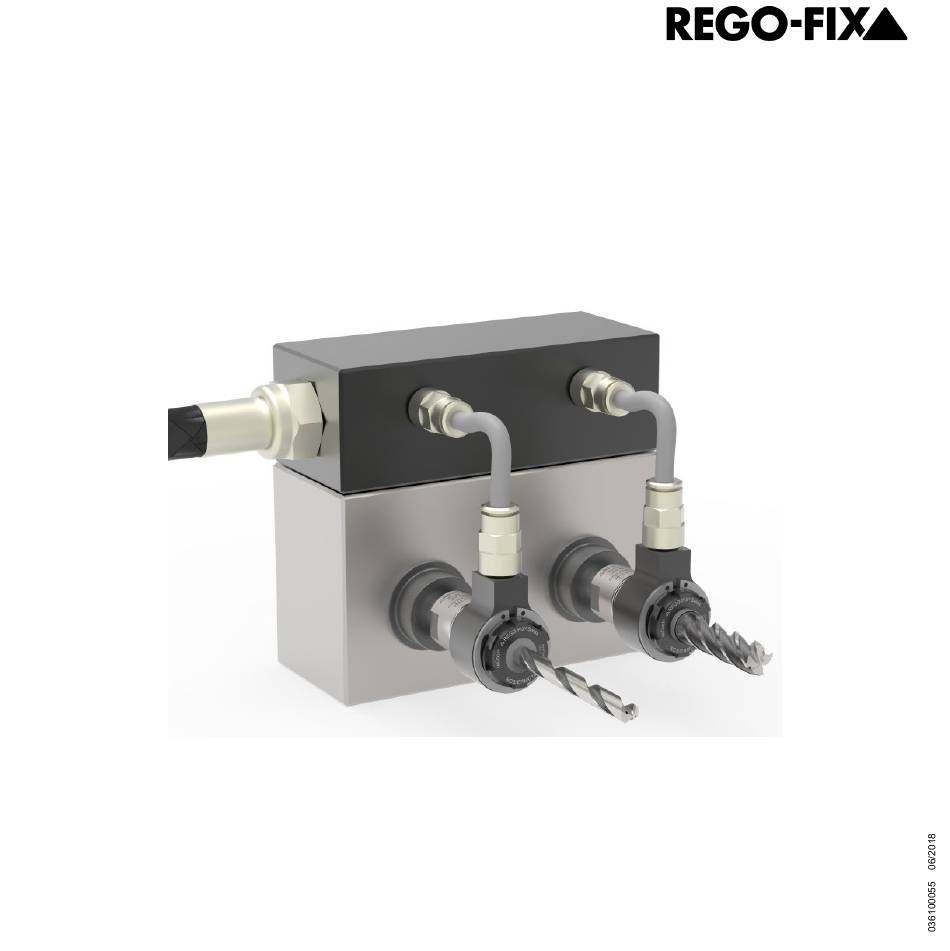

- Page 1 reCool ® Static Coolant Supply System RCS / ERMX Maintenance and Operating Manual...
- Page 2 Copyright The copyright of this operating manual remains the property of REGO-FIX AG. This operating manual is intended for use by the customer and their operating personnel only. • This Operating Manual, or parts thereof must not be: copied •...
-
Page 3: Table Of Contents
Contents Principle Safety Advise ..........................1 Danger when Operating the System or Subassemblies ................1 Appropriate Use ............................1 Inappropriate Use ............................1 Maintenance, Repair, Fault elimination ...................... 2 Warranty and Liability ..........................2 Use ................................3 Technical Data ............................3 Dimensions .............................. - Page 4 Wrench Heads A-E ........................... 10 Spanner / Wrench Head Extensions V-E MX ................... 10 Torque Wrenches TORCO-FIX ........................ 10 REGO-FIX Collets ER Standard and ER-UP Ultra Precision ..............10 ® REGO-FIX Sealing Disks DS/ER ......................11 ® REGO-FIX® Coolant Flush Disks KS/ER ....................11...
-
Page 6: Principle Safety Advise
(cutters and drills) to be used in static tools. The machine must be ® equipped with external flood cooling ports (used as peripheral cooling). All other use is considered inappropriate. Consequently, REGO-FIX does not take any responsibility for damage caused by inappropriate use. Appropriate use means, among other things: •... -
Page 7: Maintenance, Repair, Fault Elimination
® the unit go long periods between uses. Warranty and Liability REGO-FIX will not honor the warranty or accept any liability for damages caused to either persons or machinery ® which can be attributed to one or several of the following causes: •... -
Page 8: Use
Overview reCool is used exclusively for clamping tools with ER Collets (DIN 6499 / ISO 15488). ® Only original collets, sealing and cooling disks REGO-FIX are to be used. ® Technical Data Coolant pressure: The reCool static RCS/ERMX is designed for up to 150 bar / 2175 PSI and is available ®... -
Page 9: Preparing The Manifold For Static Tools
Assembly Preparing the manifold for static tools 1. Remove the old coolant pipe or fitting. 2. Screw in the supplied fitting (1/8": BSP straight or 90° angle). If the coolant pressure is higher than 100 bar, screw in the high-pressure braided steel hose RHS-HP (≤150 bar) with the fixed thread side. -
Page 10: Preparation Of Recool
Preparation of reCool® 1. Insert the small diameter of the disk into the center of the coolant nut and apply even pressure until the disk is properly seated into the nut. Sealing Disk DS Coolant Flush Disk KS Marking Marking If reCool ®... -
Page 11: Inserting The Tool And Mounting On The Toolholder
Improper assembly can permanently damage the concentricity of the collet and may result in the damage to the clamping nut. Only mount reCool ® with correctly inserted collets! Never place the collet into the holder without first assembling into the reCool ®... - Page 12 The maximum torque shall not be more than 25% above the recommended tightening torque. 3. Push the supplied hose into the fitting of the reCool to the stop and cut to ® the shortest possible length. With a coolant pressure higher than 100 bar, screw in the high-pressure hose fitting RHS-HP (≤150 bar) with the loose fitting side.
-
Page 13: Long Term Interruption Of Use
2. With wrench Type E MX or torque wrench with wrench head Type A-E MX and unscrew by hand. 3. Remove and replace tool with the same diameter, or replace the collet and sealing disc with new diameter and insert the new tool 4. -
Page 14: The Set Includes
Sets – reCool ® Static Coolant Supply System – RCS/ERMX (≤100 bar) Type Part No. Set RCS / ERMX 16 3716.50000 Set RCS / ERMX 20 3720.50000 The set includes Pos. Qty. Type Part No. Description RCS / ERMX XX 37XX.59000 reCool static coolant supply system... - Page 15 Coolant pipe with protector (≤100 5 - 50 TORCO-FIX I 7150.05050 bar) TORCO-FIX II 7150.20200 20 - 200 Type Part No. REGO-FIX ® Collets ER Standard SET RHS-100 3799.95000 and ER-UP Ultra Precision Clamping range Type [mm] Spanners E MX Type Part No.
- Page 16 3.00 - 10.00 DS/ER 20 2.50 - 13.00 KS/ER 20 3.00 - 13.00 For further information see www.reCool.ch or www.rego-fix.com. Source of supply and service location REGO-FIX AG Obermattweg 60 4456 Tenniken / Switzerland Tel. +41 61 976 14 66 Fax +41 61 976 14 14 info@rego-fix.com...
