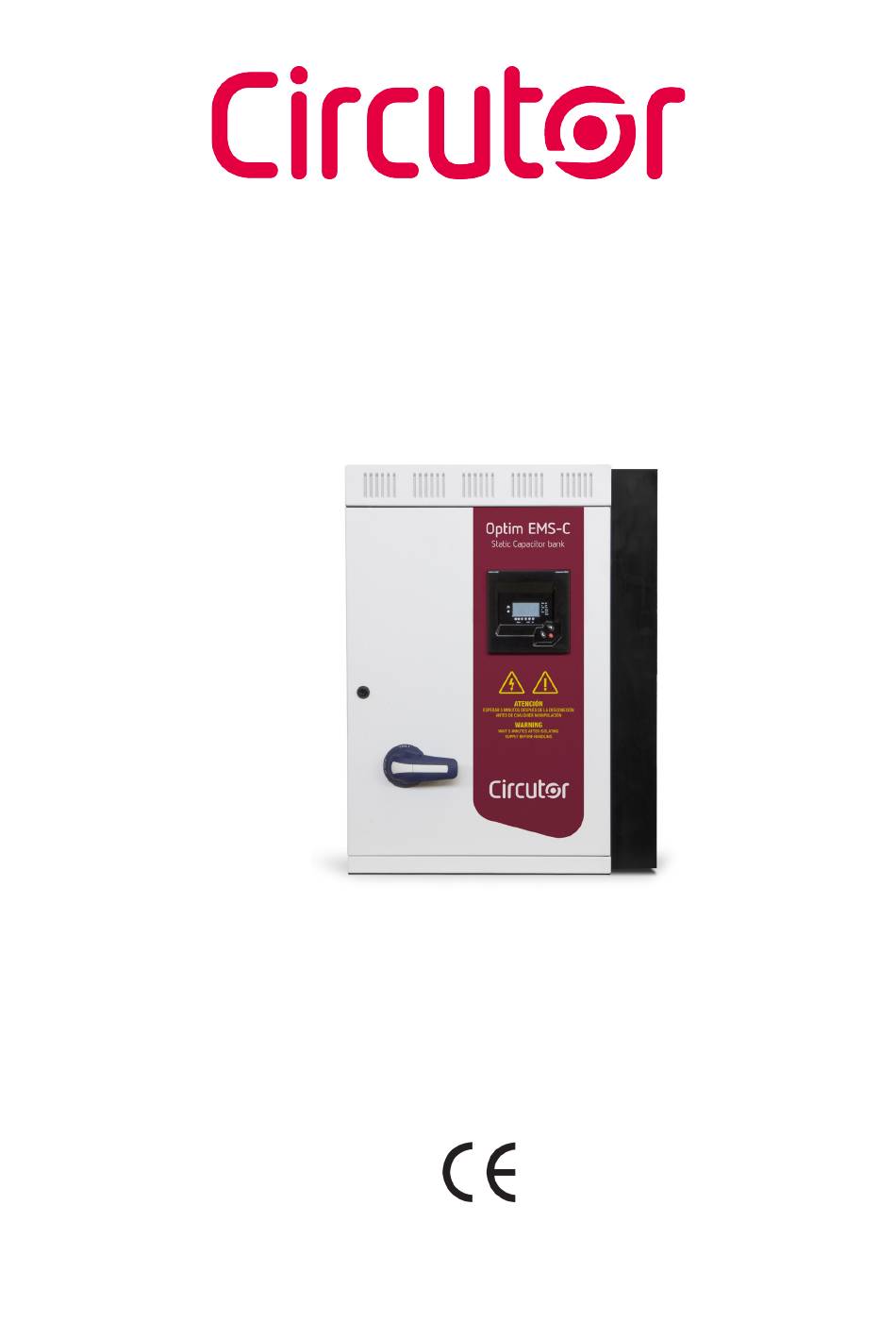

- Page 1 Low voltage capacitor bank with static switching operation. OPTIM EMS-C series INSTRUCTION MANUAL (M057B01-03-19A)
- Page 2 OPTIM EMS-C series Instruction Manual...
-
Page 3: Safety Precautions
CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice. -
Page 4: Table Of Contents
OPTIM EMS-C series CONTENTS SAFETY PRECAUTIONS ............................3 DISCLAIMER ................................3 CONTENTS ................................4 REVISION LOG ...............................5 1.- VERIFICATION UPON RECEPTION ......................... 6 1.1.- RECEPTION PROTOCOL .......................... 6 1.2.- TRANSPORT AND HANDLING ......................... 6 1.3.- STORAGE..............................7 2.- PRODUCT DESCRIPTION ..........................8 2.1.- CAPACITOR BANK COMPONENTS ...................... -
Page 5: Revision Log
OPTIM EMS-C series REVISION LOG Table 1: Revision log. Date Revision Description 10/14 M057B01-03-14A Initial Version Changes in the following sections: 11/19 M057B01-03-19A 3.2. - 4.2. - 10. Note: The images of the units are solely for the purpose of illustration and may differ from the original unit. -
Page 6: Verification Upon Reception
- The unit manual - The regulator installation guide. If any problem is noticed upon reception, immediately contact the transport company and/or CIRCUTOR's after-sales service. 1.2.- TRANSPORT AND HANDLING The transport, loading and unloading and handling of the unit must be carried out with proper precautions and using the proper manual and mechanical tools so as not to damage it. -
Page 7: Storage
OPTIM EMS-C series When unloading and moving the unit, use a forklift with forks long enough to support the entire length of the base. Otherwise, the forks should be long enough to support at least ¾ of said depth. The forks must be flat and supported firmly by the base. Raise the cabinet by placing the forks underneath the profile that supports the unit. -
Page 8: Product Description
OPTIM EMS-C series 2.- PRODUCT DESCRIPTION The purpose of this manual is to assist during the installation, start-up and maintenance of OPTIM EM-C series low voltage (LV) capacitor banks with static switching operation. Carefully read the manual to achieve the best performance from said units. -
Page 9: Power Block
OPTIM EMS-C series Alimentación Potencia Radiador PLACA PLACA CONTROL CONTROL CPC4 CPC4 Mando Conexión a Condensador de 3 Bornes Figure 3: Basic connection diagram of the CPC4 to the power block. 2.1.3. POWER BLOCK The power block of an OPTIM EMS-C unit consists of 2 to 4 groups of thyristor-diode semicon- ductors + three-phase capacitor + three-pole circuit breaker. -
Page 10: Installation
OPTIM EMS-C series 3.- INSTALLATION 3.1.- PRELIMINARY RECOMMENDATIONS In order to use the unit safely, it is critical that individuals who handle it follow the safety measures set out in the standards of the country where it is being used, use the personal protective equipment necessary, and pay attention to the vari- ous warnings indicated in this instruction manual. -
Page 11: Preparation
3.2.- PREPARATION CIRCUTOR OPTIM EMS-C static capacitor banks come ready for easy installation and start- Remove the packaging of the unit and verify that its electrical features are suitable for connec- tion to the available mains. -
Page 12: Installation Location
OPTIM EMS-C series 3.3.- INSTALLATION LOCATION It is important to maintain a minimum distance around the unit to facilitate cooling. As it is a wall-assembled cabinet, use the three 10 mm diameter holes made in the rear of the cabinet for wall mounting, as shown in... -
Page 13: Connection Of The Capacitor Bank To The Mains
OPTIM EMS-C series 3.4.-CONNECTION OF THE CAPACITOR BANK TO THE MAINS Check that the rated voltage of the capacitor bank matches the voltage between phases of the mains to which it is being connected. For more information see section “... -
Page 14: External Isolation And Protection Elements
OPTIM EMS-C series 3.6.- EXTERNAL ISOLATION AND PROTECTION ELEMENTS The capacitor bank has a manual internal four-pole isolator, but it must be connected to a line that is protected by a circuit breaker as well as earth leakage protection at the header, in ac- cordance with Spanish Low-Voltage Electrotechnical Regulations (LVR) and depending on the earthing system of the installation. -
Page 15: Current Transformer (Ct) Connection
OPTIM EMS-C series 3.9.- CURRENT TRANSFORMER (CT) CONNECTION A current transformer (CT) outside the capacitor bank must be installed to measure the total load current, plus that of the capacitor bank itself Figure 8 The standard transformer must have a nominal output of 5 A at the secondary. - Page 16 OPTIM EMS-C series Figure 9: Current transformer (CT) connection terminals. Once the cables are installed, disconnect the jumper connecting the S1 and S2 terminals of the capacitor bank ( Figure 10 Figure 10: Jumper for short-circuiting the secondary winding of the current transformer (CT).
-
Page 17: Static Capacitor Bank Start-Up
OPTIM EMS-C series 4.- STATIC CAPACITOR BANK START-UP 4.1.- BEFORE START-UP The static capacitor banks include a power factor regulator. Prior to start-up, the operation of said regulator must be known; for this reason, all capacitor banks come with the specific manual of the regulator being used. - Page 18 OPTIM EMS-C series 2.- Connect the power supply to the panel and check that the regulator display illuminates im- mediately. Otherwise, stop and check the previous step. 3.- Check the regulator's cos φ indication. If the indication is out of the 0.5 to 1 range, it may be possible that the current transformer and / or the power supply to the regulator are improperly connected.
-
Page 19: Checks After The Capacitor Bank Is Connected And The Regulator Adjusted
OPTIM EMS-C series 4.3.- CHECKS AFTER THE CAPACITOR BANK IS CONNECTED AND THE REGULATOR ADJUSTED 1.- After start-up, make sure that the unit is operating correctly. A sign of proper operation after the regulator's reaction time has passed is that the display shows a cos φ approaching 1, and the reactive energy meter must stop. -
Page 20: Maintenance
OPTIM EMS-C series 5.- MAINTENANCE 5.1.- SAFETY REGULATIONS Take the safety regulations listed in section of this manual into account before operating the units “3.1.- PRELIMINARY RECOMMENDATIONS” The National Electric Code of the country where the capacitor bank is installed or operated should be strictly followed. -
Page 21: Tightening Torque Of The Electrical Connections
OPTIM EMS-C series 5.2.2. TIGHTENING TORQUE OF THE ELECTRICAL CONNECTIONS The connections must be tight. The tightening torques for the fuse bases are indicated in Table 2. Table 2:Torques for the power cables of the three-pole circuit breakers. Circuit breaker Torque (Nm) In ≤... -
Page 22: Cleaning The Cabinet
OPTIM EMS-C series 5.2.6. CLEANING THE CABINET Remove any solid particles. Clean the inside of the cabinet. Clean ventilation grilles. 5.3.- MAINTENANCE WITH THE CAPACITOR BANK CONNECTED Check that the main switch turns on and off without having to force the mechanism. -
Page 23: Regulator Checks
OPTIM EMS-C series 5.3.1. REGULATOR CHECKS See the specific regulator manual or quick guide used for the capacitor bank. The manual or quick guide is always provided with the capacitor bank Make sure that there are no damaged segments on the display (abnormal brightness). -
Page 24: Technical Features
OPTIM EMS-C series 6.- TECHNICAL FEATURES Electrical features Working voltage and nominal frequency Un / fn, listed on the label Design voltage Un+ 10% (440 V for 400V units) Nominal power and distribution of steps Qn and composition, (see label) -
Page 25: Optim Ems-C Type Diagram
OPTIM EMS-C series 7.- OPTIM EMS-C TYPE DIAGRAM Th-D 8 PPPC8 Th-D 7 PPPC7 Th-D 6 PPPC6 Th-D 5 PPPC5 Th-D 4 PPPC4 Th-D 3 PPPC3 Th-D 2 PPPC2 Th-D 1 PPPC1 Figure 14: OPTIM EMS-C diagram. Instruction Manual... -
Page 26: Maintenance And Technical Service
• CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”... -
Page 27: Ce Certificate
OPTIM EMS-C series 10.- CE CERTIFICATE Instruction Manual... - Page 28 OPTIM EMS-C series Instruction Manual...
- Page 29 OPTIM EMS-C series Instruction Manual...
- Page 30 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.es...
