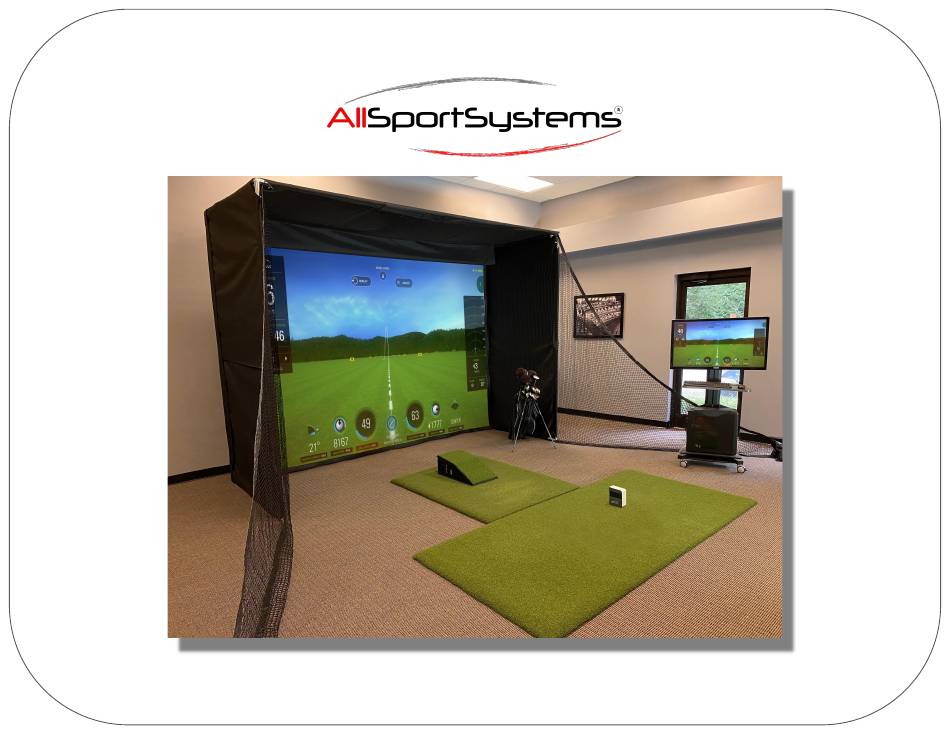

- Page 1 SuperBay™ Installation Guide 2/17/2023...
-
Page 2: Important Warning
IMPORTANT WARNING USE THIS PRODUCT AT YOUR OWN RISK. NO CLAIM IS MADE AS TO ITS SAFETY, FITNESS, OR RELIABILITY FOR ANY PURPOSE. HITTING GOLF BALLS IN AN INDOOR ENVIRONMENT IS EXTREMELY DANGEROUS! ALWAYS EXERCISE CAUTION WHEN USING YOUR SYSTEM. WE RECOMMEND HITTING 'ALMOST... - Page 3 SuperBay™ Parts List Fabric Parts: Connector Kit: 2 x Black Fabric Side Panels ● 6 x 3-Way Connectors 2 x Black Fabric Corner Panels ● ● 1 x Black Fabric Top Center Panel 2 x 90° Connector 1 x Black Fabric Back Panel ●...
- Page 4 Couplers & Corner Connectors Insert poles ¼” from crimp couplers only, replace For couplers only replace ● eye-bolts with hex bolts eye-bolts with hex bolts. ● Do not insert pole all the way into couplers. Pull pole about ¼” back from the crimp point.
- Page 5 SuperBay™ EMT Pole Cutting Chart (5ft Deep) Use this chart to purchase and cut your own EMT Poles for cages 5ft Deep Actual dia 1-3/16” (30.16 mm) SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included.
- Page 6 SuperBay™ EMT Pole Cutting Chart (8ft Deep) Use this chart to purchase and cut your own EMT Poles for cages 8ft Deep Actual dia 1-3/16” (30.16 mm) SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included.
- Page 7 SuperBay™ EMT Pole Cutting Chart (10ft Deep) Use this chart to purchase and cut your own EMT Poles for cages 10ft Deep Actual dia 1-3/16” (30.16 mm) SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included.
- Page 8 CAGE ASSEMBLY - EMT’s Purchased Locally Use this diagram to assemble your cage from EMT’s purchased and cut locally SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included. Note that your EMT pole count will be reduced by 1 or 2 width poles respectively. On each coupler replace eye-bolts with hex bolts.
- Page 9 SuperBay™ 1” EMT Pole Kit Chart (5ft Deep) This chart shows quantity and length of poles for the Precut 1” EMT Pole Kit upgrade, for 5ft deep cages SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included.
- Page 10 SuperBay™ 1” EMT Pole Kit Chart (8ft Deep) This chart shows quantity and length of poles for the Precut 1” EMT Pole Kit upgrade, for 8ft deep cages SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included.
- Page 11 SuperBay™ 1” EMT Pole Kit Chart (10ft Deep) This chart shows quantity and length of poles for the Precut 1” EMT Pole Kit upgrade, for 10ft deep cages SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included.
- Page 12 CAGE ASSEMBLY - EMT Pole Kit Use this diagram to assemble your cage from the Precut 1” EMT Pole Kit upgrade Be sure to see SkyBridge SkyRailPlus setup guides for modified cage assembly if these upgrades are included. Note that your EMT pole count will be reduced by 1 or 2 width poles respectively. °...
- Page 13 ● Verify and adjust outer dimensions to match ordered enclosure size...
- Page 14 Add Blackout Sleeves 4x Blackout Velcro sleeves ●...
-
Page 15: Install Cables
Install Cables Hardware: Loop 2 x SideRite cables around upper and lower 3 x Nylon coated steel cable wire depth poles 12” from back 3 x Turnbuckles 12 x Wire nuts Loop 1 x ShotDefender cable around upper depth poles 6”... - Page 16 Attach 1 x Interior Net Pull netting over cage. ● Secure with cable ties. ●...
- Page 17 Install Overlapping Blackout Panels 2 x Side Panels ● 2 x Corner Panels ● 1 x Top Center Panel ● See following pages for more information on attaching this panels…...
-
Page 18: Install Side Panels
Install Side Panels Wrap side panels around front Side panel will velcro to inside pole with bottom of panels of cage through the netting. flush with floor. Install on left and right side of enclosure. - Page 19 Install Side Panels Attach bottom and back edge of side panels to cage using cable ties.
- Page 20 Install Corner Panels Wrap corner panels around Corner panel will velcro to front poles. Triangle cutout inside of cage through the will go around front corner netting. pole connector. Install on left and right corners of enclosure.
- Page 21 Install Corner Panels Attach back edge of corner panels to rear of cage using cable ties.
- Page 22 Install Center Panels Wrap center panel around front Center panel will velcro to inside of pole. Center panel will overlap left cage through the netting. and right side corner panels.
- Page 23 Side, Corner, and Center Panels Installed...
- Page 24 Install Back Panel Hang back panel using cable ties through top grommets...
- Page 25 Install Back Panel Wrap back panel around both sides and velcro to side/corner panels.
- Page 26 Install Baffle Net Hang baffle net from screen pole using cable ties. Attach sides of baffle net to cage netting BEHIND your SideRite™ Cables.
-
Page 27: Install Screen
Cables. Do not tighten cable ties all the way. Progressively adjust cable ties to apply even side tensioning of screen. Tighten cable ties enough to flatten and smooth screen. Impact screen should NOT be overly tensioned. AllSportSystems logo is on bottom left corner of screen... - Page 28 Install ShotDefender™ Wrap ShotDefender™ safety valance around cable and velcro closed ● Using Cable ties attach valance through grommets to side cabling or netting. ●...
- Page 29 Your SuperBay™ is ready to go! setup guides if you purchased SkyGuard or Triangle netting upgrades. ●...
