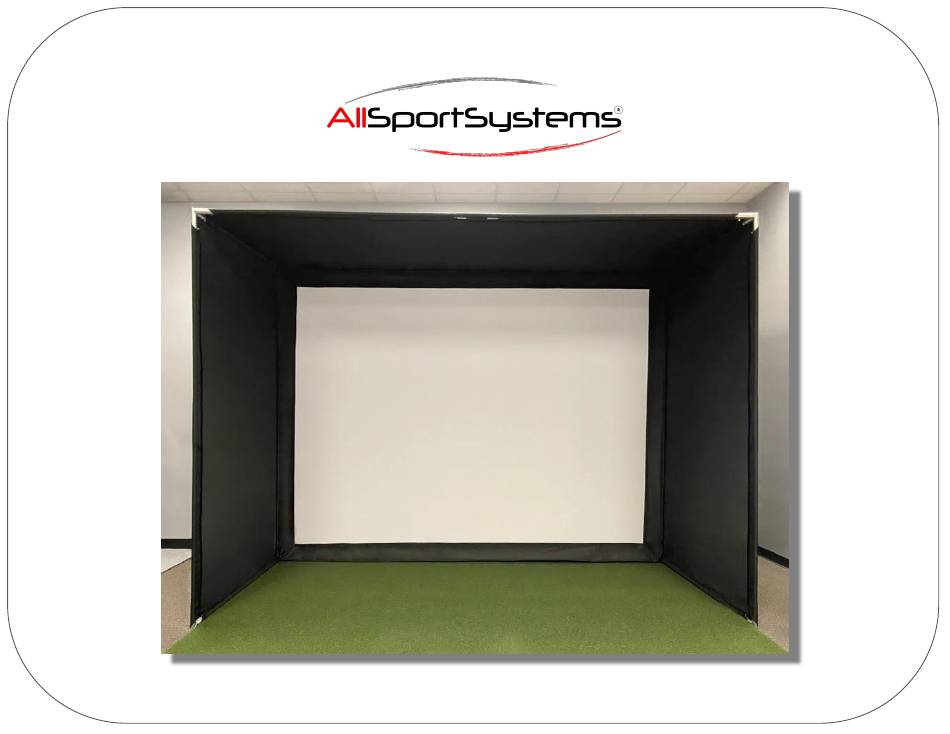

- Page 1 DIY Bay™ Installation Guide 2/27/2023...
-
Page 2: Important Warning
IMPORTANT WARNING USE THIS PRODUCT AT YOUR OWN RISK. NO CLAIM IS MADE AS TO ITS SAFETY, FITNESS, OR RELIABILITY FOR ANY PURPOSE. HITTING GOLF BALLS IN AN INDOOR ENVIRONMENT IS EXTREMELY DANGEROUS! ALWAYS EXERCISE CAUTION WHEN USING YOUR SYSTEM. WE RECOMMEND HITTING 'ALMOST... - Page 3 DIY Bay Parts List Fabric Parts: Connector Kit: ● 1 x Black Fabric Wrapper ● 6 x 3-Way Connectors ● 2 x Black Pole Sleeves ● 2 x 90° Connector ● 1 x Impact Screen ● 3 x Couplers (only if wider than 10ft) ●...
- Page 4 Couplers & Corner Connectors Insert poles ¼” from crimp couplers only, replace Replace eye-bolts with hex bolts ● eye-bolts with hex bolts on all couplers. ● Do not insert pole all the way into couplers. Pull pole about ¼” back from the crimp point.
- Page 5 DIY Bay 1” EMT Pole Cutting Chart (5ft Deep) Use this chart to purchase and cut your own EMT Poles for cages 5ft Deep Actual dia 1-3/16” SkyRailPlus setup guide for modified cage assembly if this upgrade is included. Note (30.16 mm)
- Page 6 Cage assembly for EMT’s Purchased Locally Use this diagram to assemble your cage from EMT’s purchased and cut locally SkyRailPlus setup guide for modified cage assembly if this upgrade is included. Note that your EMT pole count will be reduced by 2 width poles for this upgrade. On each coupler replace eye-bolts with hex bolts.
- Page 7 DIY Bay 1” EMT Pole Kit Chart (5ft Deep) This chart shows quantity and length of poles for the Precut 1” EMT Pole Kit upgrade, for 5ft deep cages SkyRailPlus setup guide for modified cage assembly if this upgrade is included. Note that your EMT pole count will be reduced by 2 width poles for this upgrade.
- Page 8 Cage assembly for EMT Pole Kit Use this diagram to assemble your cage using the EMT Pole kit SkyRailPlus setup guide for modified cage assembly if this upgrade is included. Note that your EMT pole count will be reduced by 2 width poles for this upgrade. On each coupler replace eye-bolts with hex bolts.
- Page 9 Confirm Cage Size IMPORTANT: BEFORE PROCEEDING Verify that the outer dimensions match the expected size. If not, adjust depth that poles are inserted to connectors as needed.
- Page 10 Add Blackout Sleeves 2x Blackout Velcro sleeves ● (top depth poles only)
- Page 11 Install the Wrapper Drape wrapper over the ● cage with grommets at the back. Wrap sides under bottom ● depth poles connecting to velcro. Wrap front edge around ● front height and width poles last connecting to velcro.
- Page 12 Wrapper continued… Bungee wrapper to rear ● poles. Rear of cage Bungee balls face toward inside of the cage.
- Page 13 ● Starting at the corners, bungee the screen to top and Bungee balls for screen installation should face bottom poles. outside of the cage. ● Bungee to side poles last. Screen front AllSportSystems logo bottom left screen corner Front View of cage...
- Page 14 Install Baffle net (optional) ● If you purchased baffle net, use cable ties to attach the net to the rear of of the cage.
- Page 15 Close Flaps Close Flaps on wrapper and ● bungee to rear poles. Rear of cage...
- Page 16 Install Side & Top Trim Fabric Attach long edge of trim fabric to side wall velcro. Position optional foam wedges as shown. Wrap trim fabric around foam and attach to screen velcro. Repeat for other side and top. Bungee balls may need to be adjusted when attaching fabric trim to main wrapper.
- Page 17 Install Bottom Trim Fabric Attach trim fabric to bottom pole using ball bungees Place optional foam wedges on trim fabric. Wrap fabric around foam and velcro to bottom of screen.
- Page 18 Finished Trim Trim panels will overlap each other.
- Page 19 Your DIY Bay™ is ready to go! ● If you purchased SkyGuard™ or Triangle netting upgrades see respective Setup Guide.
