Summary of Contents for AllSportSystems DIY Bay

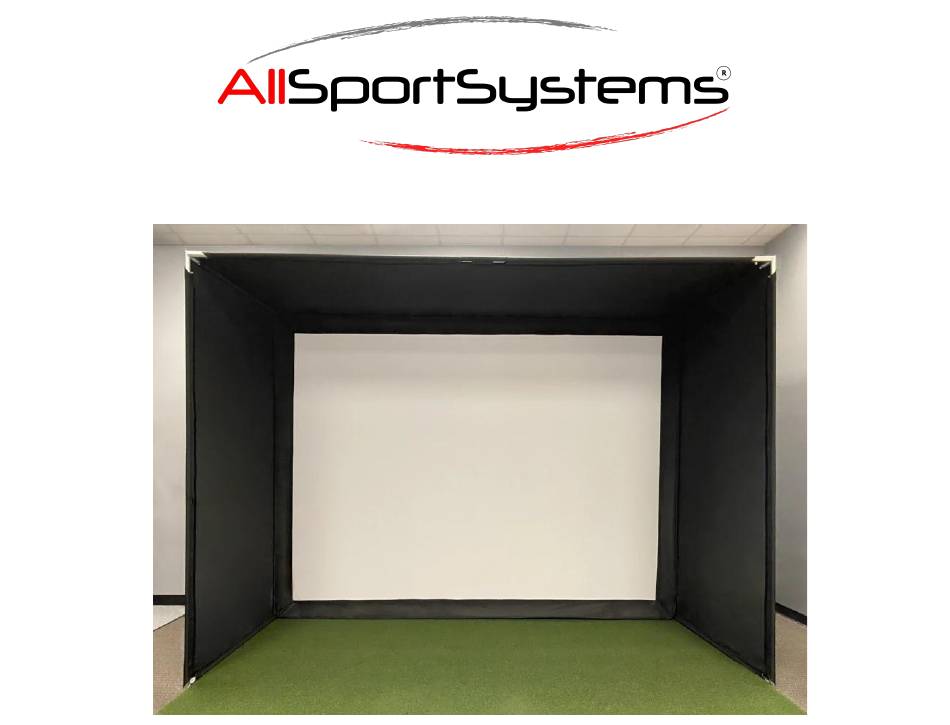

- Page 1 DIY Bay Installation Guide...
- Page 2 DIY Bay Parts List Fabric Parts: Connector Kit: 1 x Black Fabric Wrapper ● 6 x 3-Way Connectors ● 2 x Black Pole Sleeves ● 2 x 90° Connector ● 1 x Impact Screen ● 4 x Screen/Foam Trim Panels ●...
- Page 3 Prepare Poles & Connectors Mark each pole 4-½” from ● end. Insert poles 4-½” into ● connectors. For best results, remove ● eye-bolts and replace with connector bolts for all connectors and couplers.
- Page 4 DIY Bay 1” EMT Pole Cutting Chart For customers who did not purchase the 1” EMT Pole Kit 10’ Poles Width Bay Size Height Width Depth Needed Extension QTY 4 Poles QTY 3 Poles QTY 2 Poles to 8’H x 10’W x 5’D None needed 7’-9”...
- Page 5 2x 3-Ways 4) BUILD 2x Height poles FRONT 1x Width pole 1x Coupler + extender* *Couplers + extender poles only For pole count and lengths see needed for bays larger than 10ft wide. DIY Bay 1” EMT Pole Cutting Chart...
- Page 6 DIY Bay 1” EMT Pole Kit Chart For customers who purchased the 1” EMT Pole Kit Bay Size Height Poles Width Poles Depth Poles QTY 8 Poles QTY 6 Poles QTY 4 Poles 8’H x 10’W x 5’D 3’-11 ½”...
- Page 7 2x Width poles + coupler 3) BUILD 2x Depth poles DEPTH 2x 3-Ways 4) BUILD 4x Height poles + couplers FRONT 2x Width poles + couplers For precut pole count and lengths see DIY Bay 1” EMT Pole Kit Chart...
- Page 8 Modified Cage assembly for SkyRailPlus For SkyRailPlus customers ● Use unistrut for top width poles ● See SkyRailPlus and SkyBridge ● setup guides for more detail on installation of unistrut channels.
- Page 9 Confirm Cage Size IMPORTANT: BEFORE PROCEEDING Verify that the outer dimensions match the expected size. If not, adjust connection depths as needed.
- Page 10 Add Blackout Sleeves ● 2x Blackout Velcro sleeves (top depth poles only)
- Page 11 Install the Wrapper Drape wrapper over the ● cage with grommets at the back. Wrap sides under bottom ● depth poles connecting to velcro. Wrap front edge around ● front height and width poles last connecting to velcro.
- Page 12 Wrapper continued… Bungee wrapper to rear ● poles. Bungee balls face toward inside of the cage. Rear of cage...
- Page 13 Install the Screen ● AllSportSystems Logo should face to the front. Velcro is sewn along all edges of screen front. Starting at the corners, bungee ● the screen to top and bottom poles. ● Bungee to side poles last. screen Close wrapper flaps...
- Page 14 Install Baffle net (optional) ● If you purchased baffle net, use cable ties to attach the net to the rear of of the cage. Close wrapper flaps Close flaps on wrapper and ● bungee to rear poles.
- Page 15 Install trim fabric and optional foam inserts Attach long edge of trim fabric to side wall velcro. Position optional foam wedges as shown. Wrap trim fabric around foam and attach to screen velcro. Complete both sides ● and top in the same manner.
- Page 16 Install bottom trim and optional foam inserts Attach trim fabric to bottom pole using ball bungees Place foam wedges on trim fabric. Wrap fabric around foam and velcro to bottom of screen.
- Page 17 Finished Trim Trim panels will overlap each other.
- Page 18 Your DIY Bay™ is ready to go! ● SkyGuard™ customers, see setup guides. 10/25/2022...
