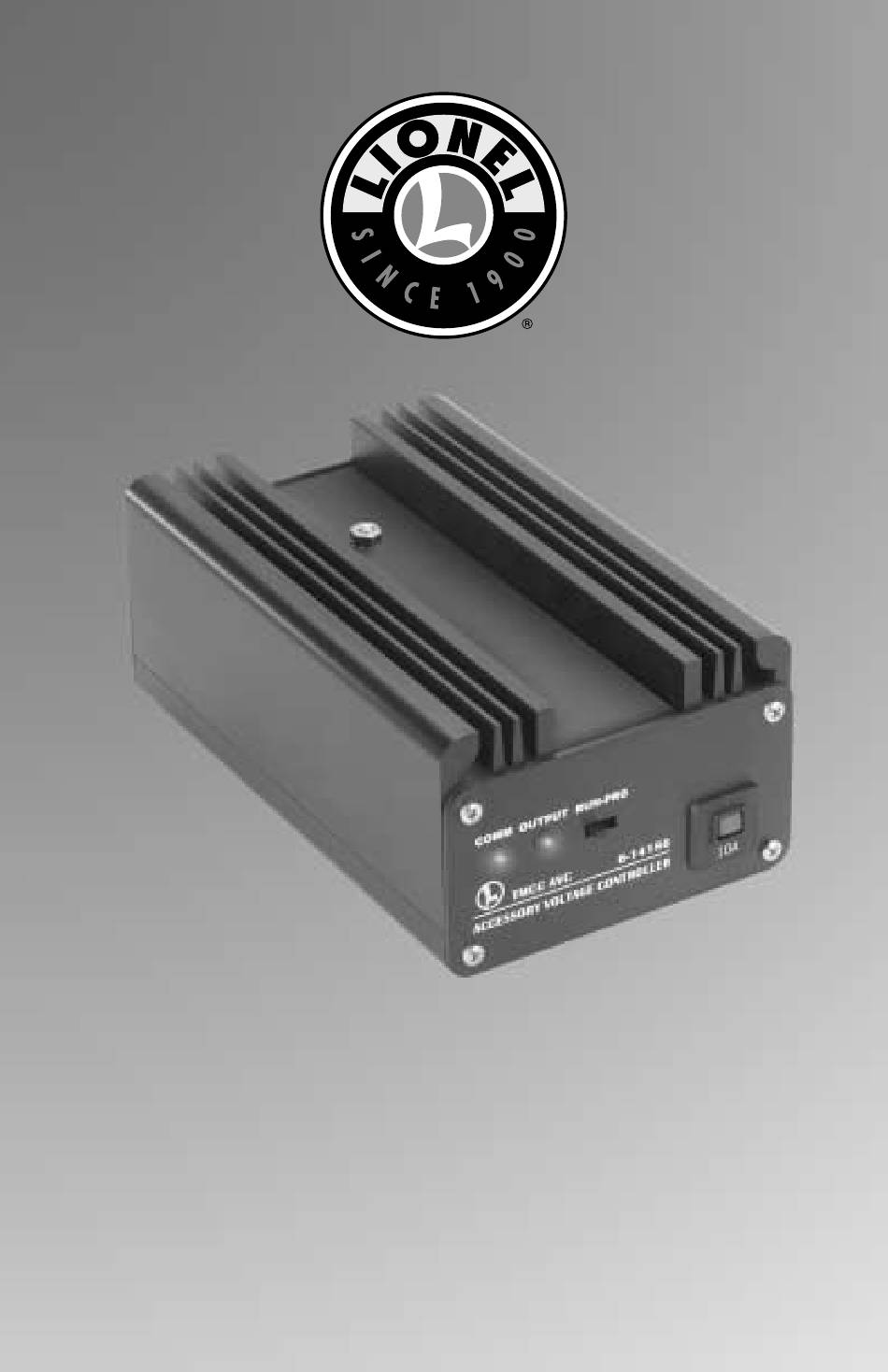

- Page 1 71-4186-250 11/02 TMCC Accessory Voltage Controller (AVC)
-
Page 2: Table Of Contents
Using a set voltage Specifications Template Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel®, TrainMaster®, Odyssey®, RailSounds™, CrewTalk™, TowerCom™, DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1 Remote Controller®,... -
Page 3: Wiring Your Accessory Voltage Controller
Wiring your Accessory Voltage Controller Powering the Accessory Voltage Controller ower your AVC using one of the options illustrated in Figure 1. A separate power supply is used in Option 1; the AVC is connected to the outside rail or common layout ground in Option 2. -
Page 4: Connecting The Comm Wires
Wiring your Accessory Voltage Controller Connecting the COMM wires our AVC unit will need to communicate with the Command Base and any other TMCC products you have connected to your AVC unit. To make these connections, you will need the Command Base Cable (available separately, 6-14191 for a 6’ cable and 6-14195 for a 20’... -
Page 5: Connecting Additional Tmcc Products In A "Daisy Chain
To daisy chain the COMM connections, attach one wire to the DAT terminal of the AVC unit and connect it to the DAT terminal of the next TMCC product. Then, attach another wire to the COM terminal of your AVC unit and connect it to the COM terminal of the next product. Add... -
Page 6: Connecting Your Accessories To The Avc Unit
Wiring your Accessory Voltage Controller Connecting your accessories to the AVC unit onnect your accessories to the TRACK OUT terminals on the AVC unit as illustrated in Figure 3. In Options 1 and 2, the AVC and accessory are powered by a separate power supply. -
Page 7: Assigning An Id# To The Avc Unit
Wiring your Accessory Voltage Controller Assigning an ID# to the AVC unit ollow these steps to assign an ID# to your AVC unit so you can adjust the accessory voltages with your CAB-1 Remote Controller. 1. Slide the RUN/PRG switch to PRG. This switch is located on the front of the AVC unit. -
Page 8: Using A Preset Voltage Level
Wiring your Accessory Voltage Controller Using a preset voltage level he AVC features three preset voltage ranges. The broadest voltage range allows you to set the voltage from 0 percent to 100 percent, or full voltage. Access this range by pressing H on your CAB-1 Remote Controller as discussed below. -
Page 9: Setting A Specific Voltage
Wiring your Accessory Voltage Controller Setting a specific voltage ou may adjust the voltage to a setting of your choice with the red knob on the CAB-1 Remote Controller if you choose not to select a preset voltage. While turning the red knob on the CAB-1 Remote Controller, you can examine the intensity of the lamps and the operation of the accessories. -
Page 10: Using A Set Voltage
Wiring your Accessory Voltage Controller Using a set voltage 1. Press TR or ENG (determined when you assigned the ID#) and enter the ID# of the AVC unit into the CAB-1 Remote Controller. 2. Press the AUX1 button to activate the numeric keys. 3. -
Page 11: Template
Template Figure 5. Controller mount template Your service and warranty information is on the other side. Be sure to photocopy Caution! this page or the warranty. -
Page 12: Limited Warranty/Lionel Service
