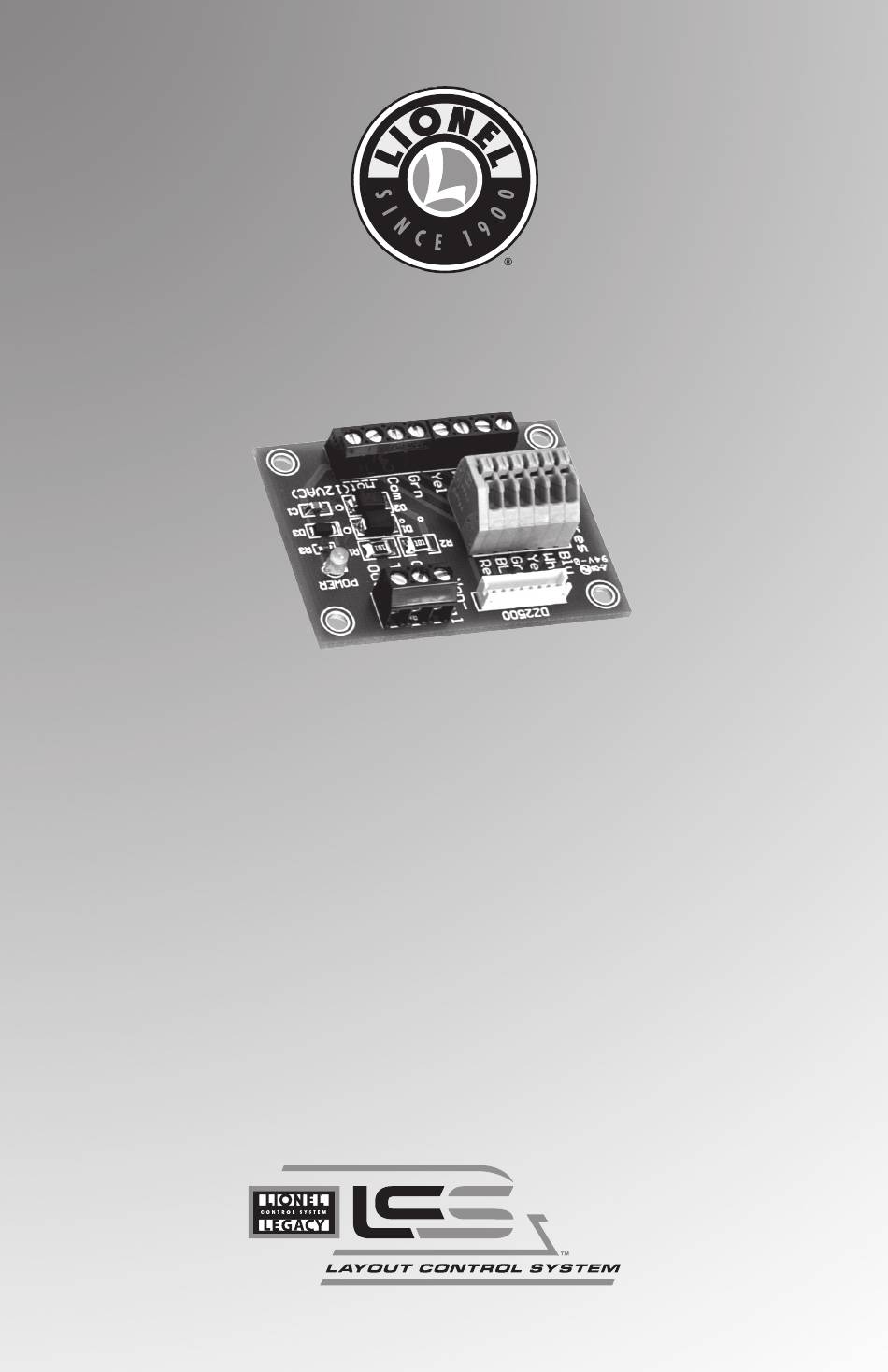

- Page 1 10908010250 6/18 Lionel Lionel Custom Switch Custom Switch Machine Controller Machine Controller (CSM2) Breakout Board (CSM2) Breakout Board Owner's Manual Owner's Manual...
- Page 2 Breakout Board if more than one DZ-2500 is being used. Carefully read the labels on the Breakout Board. 3. Connect the switch-sense to the CSM2. Your first DZ-2500 goes to the #1 screw terminal. Following DZ-2500 switch machines go to #2 and so on. Each CSM2 can provide switch-sense to the LCS app for up to 7 total DZ-2500 switch machines.
- Page 3 Wiring the DZ-2500 Switch Machine to the CSM2 using the Break-out Board BLACK GREEN YELLOW WHITE BLUE Figure 1. Wiring DZ-2500 to CSM2 using Lionel Breakout Board...
- Page 4 Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
