PALECEK MONTERRA 7840-03 Installation Instructions

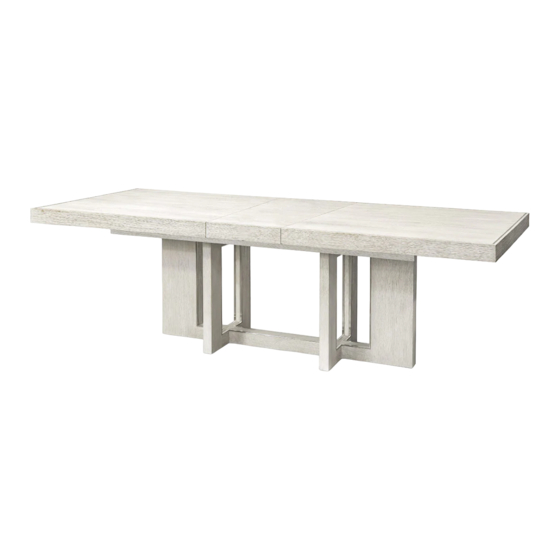

MONTERRA DINING TABLE INSTALLATION INSTRUCTIONS
These instructions are provided for your convenience. It is very important that they are read carefully and completely before beginning installation
of this item.(Applies to items 7840-03)
Hex Screw

TOOLS NEEDED:

1. Allen Wrench (included).

TO ASSEMBLE:

1. Unbox all components onto a non scratching surface.
2. Ensure the TABLE BASE is in an upright position.
3. Carefully place MENDING BOARD BASE onto TABLE BASE, aligning the screw holes.
4. Insert a LOCK WASHER and a FLAT WASHER onto a HEX SCREW, and insert into the twelve (12) holes
indicated in Diagram #1. Tighten with the included ALLEN WRENCH.
5. Place the TABLE TOP upside down on a non scratching surface.
6. Place the MENDING BOARD TOP onto underside of TABLE TOP, aligning the holes.
Diagram #1
6 0 1 P A R R B O U L E V A R D , R I C H M O N D , C A 9 4 8 0 1
Mending
Board Base
Table Base
T . 8 0 0 . 2 7 4 . 7 7 3 0 | F . 5 1 0 . 2 3 4 . 7 2 3 4
P A L E C E K . C O M
ITEM 7840-03
Mending
Board Top
Diagram #2
Table
Top
