PALECEK BOCA Assembly Instructions

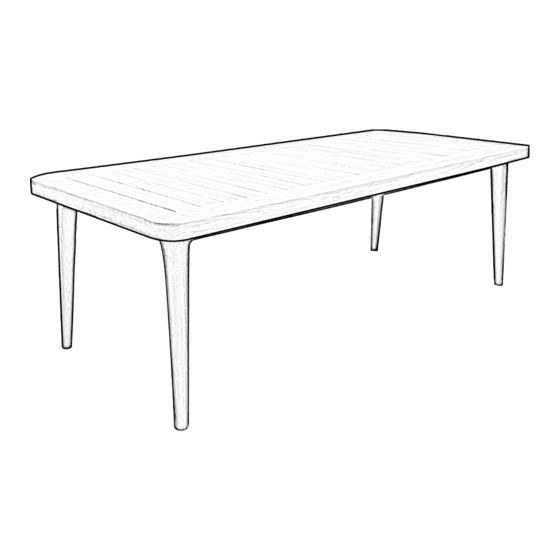

BOCA OUTDOOR DINING TABLE ASSEMBLY INSTRUCTIONS
These instructions are provided for your convenience. It is very important that they are read carefully and completely before beginning installation
of this item.(Applies to item 7226-79). Installation by two (2) persons recommended.
PARTS:
A. TABLE TOP (1x).
B. LEG (4x).
C. ALLEN BOLT (8x).
D. LOCK WASHER (8x).
E. WASHER (8x).
A.
TOOLS NEEDED:
F. ALLEN WRENCH (INCLUDED).
TO ASSEMBLE:
Step 1). Unpack box and ensure all parts are accounted for.
Step 2). Using two persons, lay Table Top (A) upside down on a soft, non-scratching surface.
Step 3). Insert one LEG (B) into corner blocks of Table Top (A), aligning holes in leg with holes in corner block. See diagram 1.
Step 4). Thread Allen Bolt (C) through Lock Washer (D), then Washer (E), and insert bolt assembly into corner block hole. Do not
tighten until second bolt assembly is inserted into remaining hole. Once both bolt assemblies are inserted into corner block/leg, use
the Allen Wrench (F) to tighten. Repeat steps for all remaining Legs (B). See diagram 2.
Step 5).
Using two persons, turn assembled table upright and place in desired location.
Step 6). If floor surface is uneven, use the pre-installed adjustable levelers in each leg to make contact with the floor by rotating counter
clockwise.
Step 7).
Assembly complete.
CARE:
Dust with a soft dry cloth. Wipe up spills immediately. Clean with damp cloth. Do not use cleaning solutions or abrasives.
6 0 1 P A R R B O U L E V A R D , R I C H M O N D , C A 9 4 8 0 1
B. C.
T . 8 0 0 . 2 7 4 . 7 7 3 0 | F . 5 1 0 . 2 3 4 . 7 2 3 4
P A L E C E K . C O M
D. E. F.
