- Page 1 PBAT600 String Sensor Installation & Operation Manual V1.0 珠海横琴派诺技术有限公司 ZHUHAI PILOT (HENGQIN) CO., LTD.
- Page 2 Danger and warning! This device can be installed only by professionals. The manufacturer shall not be held responsible for any accident caused by the failure to comply with the instructions in this manual. Risks of electric shocks, burning, or explosion ...
-
Page 3: Table Of Contents
Contents Chapter 1 Product Overview ......................... 1 Chapter 2 Installation and Wiring ......................3 2.1 Environment ..........................3 2.2 Order Information........................6 2.3 Power Supply ..........................6 Chapter 3 Measuring Parameters ......................7 3.1 Voltage ............................7 3.2 Current ............................7 3.3 Cell Data Acquisition ........................ -
Page 4: Chapter 1 Product Overview

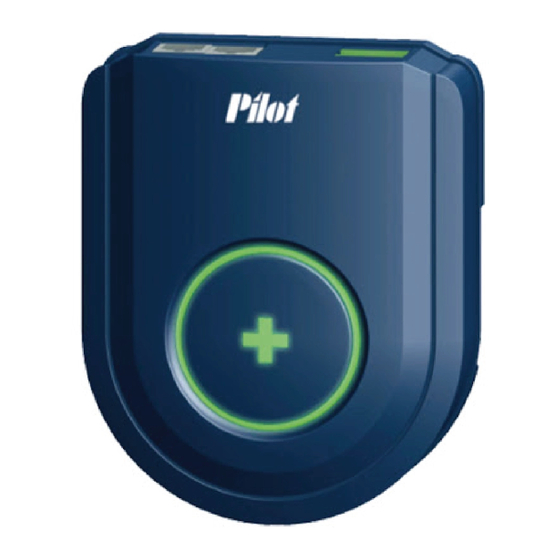

Chapter 1 Product Overview PBAT600 battery string sensor is specially designed as highly integrated smart sensor module for VRLA batteries, can quickly and accurately measure the VRLA’s voltage, charge and discharge current and other parameters. String sensor uses specified isolated communication bus, equipped with PBAT61 battery cell sensor, to realize the real-time monitoring of the entire string of batteries. - Page 5 achieve non-destructive measurement. Balancing function, the battery pack keep voltage balance under floating status, this allows each battery to maintain the best active state, improve the battery backup time and operating life. With PBAT61 collector, it collects the collected data into the register for use by the background device.
-
Page 6: Chapter 2 Installation And Wiring
Chapter 2 Installation and Wiring 2.1 Environment 2.1.1 Environmental requirements temperature：0℃ ～ +45℃ ◇Standard operating ：-10℃ ~ +55℃ ◇ Operating temperature limit ：-40℃～ +70℃ ◇ Storage temperature ：5% ～ 95%RH， ◇ Working humidity Non-condensing 2.1.2 Installation and Dimensions Unit：mm 8 5 . 0 3 8 . - Page 7 2.1.3 Structure and Terminals COM1 COM2 (0~600V)
- Page 8 The main terminal definitions： Symbol Definition Positive power supply +24V Negative power supply -24V Interface for the string current sensor Hall Terminal Negative terminal for the string voltage measurement Positive terminal for the string voltage measurement RS+485 communication port 485+ RS-485 communication port 485- DL-BUS communication，RJ11 interface...
-
Page 9: Order Information
Charge and discharge current measurement PBAT600 For battery string DL-BUS communication Collector information centralized processing 2.3 Power Supply PBAT600 is supplied by 24VDC with the range from DC 18V to DC 36V，and its power loss is less than 1W. -
Page 10: Chapter 3 Measuring Parameters
Chapter 3 Measuring Parameters 3.1 Voltage PBAT600 could measure the real-time voltage of VRLA battery string, with the range from DC 0V to DC 800V 3.2 Current PBAT600 could measure the real-time charge and discharge current of VRLA battery string with the range from -1000 to +1000A. -
Page 11: Internal Resistance Test
Note: Please refer to the "PBAT600 Software Application Manual" for the balanced configuration. 3.5 Internal Resistance test The battery is in floating state, PBAT600 regularly send a test command to the cell sensor for internal resistance test.（Internal resistance only measure under floating status）... -
Page 12: Soh Health Status
10.8V Recovery voltage 2.12V 12.68V The characteristic parameters of the battery can be configured via the PBAT600 commissioning software. The default value（Recovery voltage）is the optimal value from a large number of experiments, if no special circumstances do not change. Note：Note setting for voltage rank, float range, cut-off voltage, recovery voltage, please refer to "PBAT600 software application manual”... -
Page 13: Chapter 4 Description Of Indicated Led
Chapter 4 Description of Indicated LED Indicated LED Status Running LED L1（Green） Normal working Breathing mode String Voltage/Current surpass high limit or low limit String SOC surpass low limit Normal working Alarm LED L2（Red） String Voltage/Current surpass high limit or low limit String SOC surpass low limit Hall connection abnormal... -
Page 14: Chapter 5 Maintenance And Fault Remove
RS485 is grounded. Communication is Check whether the communication cable interrupted. is disconnected. Communication line Check the communication wire PBAT600 interruption is disconnected with the Cell sensor Point table configuration Re-configure the PBAT600 point table error Unable Protocol: Extended protocol and standard... -
Page 15: Chapter 6 Technical Specifications
Chapter 6 Technical Specifications Dimension Main-body：104.5mm（L）×85mm（W）×38.5mm（H） Power Rated voltage is DC 24V with the normal range from DC18V to DC36V power Supply loss：<=1W Item Range Accuracy Note Voltage DC 20~800V ±0.5% Resolution：0.01V Current DC-1000A~1000A ±2%（15℃~35℃） Resolution：0.01A Item Test Conditions > 10MΩ Insulation Insulation voltage: DC1000V,... - Page 16 Item Reference Standard Class GB/T17626.2-2006 Electrostatic discharge immunity (IEC61000-4-2:2001) GB/T17626.3-2006 RFEMS (IEC61000-4-3:1998) GB/T17626.4-2008 Electrical fast transient burst immunity (IEC61000-4-4:1998) GB/T17626.5-2008 Surge Immunity (IEC61000-4-5:2005) GB/T17626.6-2008 RF conducted immunity (IEC61000-4-6:1998) GB/T17626.8-2008 Power frequency magnetic field immunity (IEC61000-4-6:2001) GB/T14598.16-2002 Electromagnetic emission limits (IEC60255-25:2000)
- Page 17 Notice: PILOT reserves the right to modify this manual without prior notice in view of continued improvement. Email: marketing@pmac.com.cn Tech Support Email: systemtech@pmac.com.cn PILOT (HENGQIN) CO., LTD Add: No. 15, Keji 6 Road, Chuangxin Haian, Tangjia High-tech Zone, Zhuhai, Guangdong, 519085 China Tel: +86-756-3629166 / 3639029 Fax: +86-756-3631718...
