- Page 1 PBAT-61 Cell Sensor Installation & Operation Manual V1.0 珠海横琴派诺技术有限公司 PILOT (HENGQIN) CO., LTD.
- Page 2 Danger and warning! This device can be installed only by professionals. The manufacturer shall not be held responsible for any accident caused by the failure to comply with the instructions in this manual. Risks of electric shocks, burning, or explosion ...
-
Page 3: Table Of Contents
Contents Chapter 1 Product Overview ....................1 Chapter 2 Installation and Wiring .................... 2 2.1 Environment ........................2 2.2 Order Information......................5 2.3 Power Supply ....................... 7 2.4 Wiring ..........................7 Chapter 3 Measuring Parameters ................... 8 3.1 Voltage ........................... 8 3.2 Internal resistance ....................... -
Page 4: Chapter 1 Product Overview

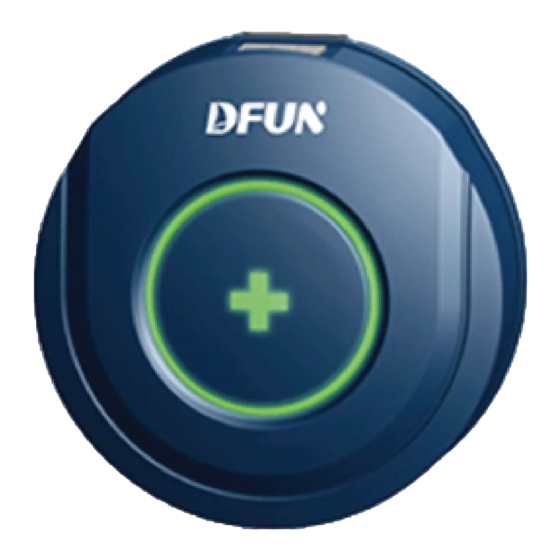

Chapter 1 Product Overview PBAT61 battery cell sensor is specially designed as highly integrated smart sensor module for VRLA batteries, can quickly and accurately measure the VRLA’s voltage, resistance and negative pole temperature. Cell sensors use specified isolated communication bus, and multiple sensors can be very easily cascaded to realize the real-time monitoring of the entire strings of batteries. -
Page 5: Chapter 2 Installation And Wiring
Chapter 2 Installation and Wiring 2.1 Environment 2.1.1 Environmental requirements ：0℃ ～ +45℃ ◇Standard operating temperature ：-10℃ ~ +55℃ ◇ Operating temperature limit ：-40℃～ +70℃ ◇ Storage temperature ：5% ～ 95%RH， ◇ Working humidity Non-condensing 2.1.2 Installation and Dimensions （1）Dimensions Unit：mm （2）Structure and Terminals Unit：mm... - Page 6 Note: wire length 30cm 2.1.3 The main terminal definitions Symbol Definition Negative power supply, connected directly with the V- Bat battery negative pole. Measuring input of the voltage, connected directly with V- Sense the battery negative pole. It contacts with V-Bat. Temperature sensor input Temperature sensor input Measuring input of the voltage, connected directly with...
- Page 7 Positive power supply, connected directly with the V+ Bat battery positive pole. COM1 DL-BUS communication，RJ11 interface COM2 DL-BUS communication，RJ11 interface Note: The cell sensor uses four-line method to measure the internal resistance of VRLA.‘V+ Sense’ and ‘V- Sense’ need to be connected directly with the battery pole.
-
Page 8: Order Information
2.2 Order Information Model： PBAT61 Real-time cell voltage measurement Internal resistance PBAT61-02 For 2V battery measurement on line Negative pole temperature measurement DL-BUS Communication Real-time cell voltage measurement Internal resistance PBAT61-12 For 12V battery measurement on line ... - Page 9 Real-time cell voltage measurement Internal resistance measurement on line PBAT61-02-B For 12V battery Negative pole temperature measurement DL-BUS Communication Balancing function...
-
Page 10: Power Supply
2.3 Power Supply PBAT61-2 is supplied by the battery with the range from DC 1.6~2.6V, Power loss when working is less than ＜ 200mW, and power loss when dormancy is less than＜12mW. PBAT61-12 is supplied by the battery with the range from DC 7.5~15.6V , Power loss when working is less than ＜... -
Page 11: Chapter 3 Measuring Parameters
Connect to Previous node V+ Sense V+ Bat COM1 PBAT61 COM2 V- Sense V- Bat Connect to next node Chapter 3 Measuring Parameters 3.1 Voltage PBAT61 could measure the real-time voltage of VRLA battery cell. The measuring range of PBAT61-2 is from DC 1.6~2.6V , and PBAT61-12 is form DC 7.5~15.6V. -
Page 12: Chapter 4 Accessibility Features
Chapter 4 Accessibility Features 4.1 Communication PBAT61 communicates with other sensors by the DL-BUS, One PBAT-Gate can support maximum 240 PBAT61 sensors. In order to ensure communication quality, the distance between two PBAT61 should no longer than 1m, and the total distance of one DL-BUS line should no longer than 70m. -
Page 13: Chapter 6 Maintenance And Trouble Shooting
Chapter 6 Maintenance and Trouble shooting Problems Causes Solutions Check whether the proper power is Running LED is not Power can not input in supplied on the V+ Bat and V- Bat ON after power on. the device terminal Unit ID of the sensor is Check whether Unit ID of the sensor is wrong the same as the master. -
Page 14: Chapter 7 Technical Specifications
Chapter 7 Technical Specifications Dimension Main-body：65mm（L）×65mm（W）×28.8mm（H） PBAT61-2 rated voltage is DC 2V with the range from DC 1.6 to DC 2.6V. Power Power loss：200mW( )/12mW( working mode sleep mode Supply PBAT61-12 7.5V～15.6V rated voltage is DC 12Vwith the range from DC Power loss：125mW( )/10mW( working mode... - Page 15 Item Reference Standard Class GB/T17626.2-2006 Electrostatic discharge immunity (IEC61000-4-2:2001) GB/T17626.3-2006 RFEMS (IEC61000-4-3:1998) Electrical fast GB/T17626.4-2008 transient burst (IEC61000-4-4:1998) immunity GB/T17626.5-2008 Surge Immunity (IEC61000-4-5:2005) GB/T17626.6-2008 RF conducted immunity (IEC61000-4-6:1998) Power frequency GB/T17626.8-2008 magnetic field (IEC61000-4-6:2001) immunity GB/T14598.16-2002 Electromagnetic emission limits (IEC60255-25:2000) GB/T17626.12-1998 Sasser immunity (IEC61000-4-12:1995)
- Page 16 Notice: PILOT reserves the right to modify this manual without prior notice in view of continued improvement. Marking Email: marking@pmac.com.cn Tech Support Email: systemtech@pmac.com.cn PILOT (HENGQIN) CO., LTD Add: No. 15, Keji 6 Road, Chuangxin Haian, Tangjia High-tech Zone, Zhuhai, Guangdong, 519085 China Tel: +86-756-3629166 / 3639029 Fax: +86-756-3631718...
