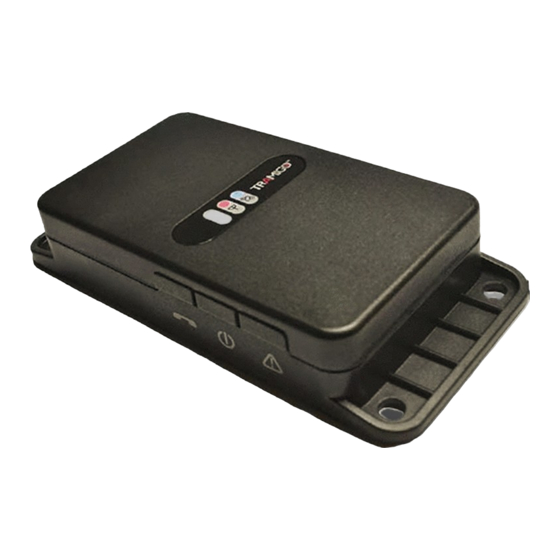

Tramigo T23 Fleet Quick Start Manual

T23 Fleet GPRS
T23 Fleet has the new options in which you can send commands and receive reports via SMS, GPRS or both SMS & GPRS connection.
GPRS mode (also called Data Mode) is a mobile feature that allows you to access or connect to the unit via the internet. Through GPRS connection,
you can also update or configure your unit remotely. The following information will give you the idea on how to setup GPRS on the T23 Fleet device.

Step 1. Prepare

THIS DOCUMENT REQUIRES YOU TO HAVE FOLLOWED T23 FLEET QUICK START FIRST BEFORE PROCEEDING.
REQUIREMENTS:
T23 Fleet USB Cable
Tramigo Manager OEM installed on PC
Configuration file for GPRS
SIM Card enrolled to data plan
TIPS TO REMEMBER
Know the GPRS settings for data connection enabling, such as APN, check you mobile network provider.
GPRS will use data connection for traffic, the amount of data used should be specified to match the selected plan (for e.g. 10 MB or 20 MB/month).
One (1) report is in average 500 bytes (0.5 KB).
Modem (SMS messages) can be used as backup especially for the alarm messages.
GPRS CONNECTION IS NOT APPLICABLE TO M1MOVE or any MOBILE PHONE GPRS.

Step 2. Setup

Following commands can be sent via SMS or Tramigo Manager OEM.
STEP
T23 FLEET
1
Tramigo: GPRS APN was set,
12:03 Sept 8
Send: GPRS,APN,<APN>,<APN user>,<APN password>
Leave blank if there is No APN username or No APN password

Step 3. Connect

STEP
Send: GPRS,Connect,gprs server IP,port,tcp (default port = 9566)
1
GPRS,Connect,123.123.123.123,9566,tcp
e.g.
T23 Fleet Response: Tramigo: GPRS connection process started, 12:07 Sept 8
STEP
Send: STATUS (to check connectivity status)
2
T23 Fleet Response 1: Tramigo: Status: Parked, GPS: 81%, GSM: 80%, GPRS: StartConnect, battery: 63% (charging),
reports: none, 14.55913, 121.01956, 12:08 Sept 8
T23 Fleet Response 2: Tramigo: Status: Parked, GPS: 81%, GSM: 80%, GPRS: Connected, battery: 64% (charging),
reports: none, 14.55913, 121.01956, 12:10 Sept 8

Step 4. Track

Send the following commands to configure automatic reporting. "R" refers to REPORT cammand and "10" is the allocated user
number for GPRS server, all reports will be sent to GPRS server. All settings mentioned can be listed and saved as CF file.
R,10,F,5,3,30
//turn on FIND reporting every 5 minutes when in trip, then every 30 minutes when not in trip, every 3 hours
R,10,ST,5,,30
//turn on STATUS reporting every 5 minutes when in trip, 30 minutes when not
R,10,Trip,ON
//turn on TRIP reporting
R,10,Power,ON
//turn on POWER reporting
R,10,Ignition,ON
//turn on IGNITION reporting
R,10,Speed,160
//turn on SPEED alarm reporting with 160km/s (160 is changeable)
© 2012 Tramigo Ltd. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior
written permission of Tramigo.
GSM/GPRS SIM Card
Registered GPRS modem SIM from Server
Customer has to run a M1Fleet Enterprise server on a dedicated server running on a public IP
and with modem installed.
GPRS,APN,Etisalat
SEND
The Best Selling GPS/GSM Tracker in the World.
For more information. Email: support
Customer can also run their own GPRS server
STEP
2
Send: Set,GPRSMsgResponse,<0/1/2>
Note: Use this if you want confirmation for ALL messages,
default is 1 which will confirm Trip and Alarm messages.
T23 FLEET
Set,GPRSMsgResponse,2
Tramigo: Set, parameter
gprsmsgresponse. value 2,
12:05 Sept 8
SEND
@tramigo.com
