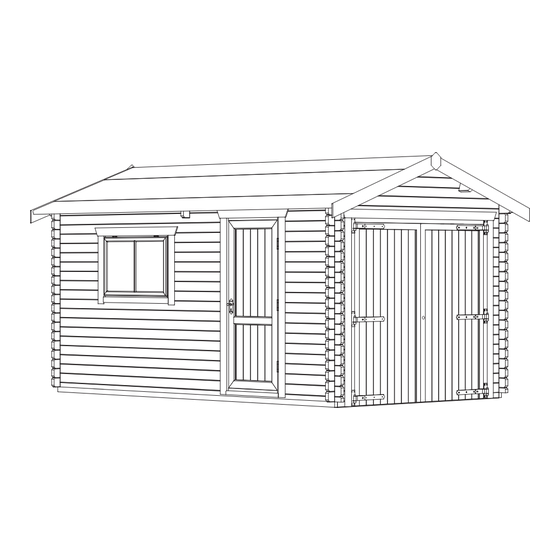

- Page 1 TIG/INS42 TIGER MALAYAN GARAGE LOG CABIN GENERAL ASSEMBLY INSTRUCTIONS...
-
Page 2: Before You Get Started
BEFORE YOU GET STARTED PLEASE READ INSTRUCTIONS CAREFULLY • Check the pack and make sure you have all the parts listed. • When you are ready to start, make sure you have the right tools at hand (not supplied). • Ensure there is plenty of space and a clean dry area for assembly. TIMBER As with all natural materials, timber can be affected during various weather conditions. - Page 3 We understand how busy life can be. Our Pro-Installation service can take the stress and strain out of assembling your quality Tiger building for you. We recommend using professional and dedicated installers to erect your building. With their knowledge and experience, they will ensure that your cabin is put properly in place ready for you to enjoy your space for years to come.
- Page 4 BEFORE YOU GET STARTED TOOLS REQUIRED We recommend using the following tools (not supplied): HAMMER RUBBER MALLET DRILL LADDER TAPE MEASURE SHARP KNIFE SPIRIT LEVEL SCREWDRIVER + WOOD SAW SPANNER FIXING KIT CONTENTS: Clout Nails (20mm Galvanised - QTY Screws (40mm - QTY 30) 300) Nails...
- Page 5 Please retain instructions for future reference BUILDING PACK CONTENTS: For full details of what should be included please see the Product Construct Diagram and itemised cutting list that is supplied with the delivery. They are also available on request in pdf form from our helpful Customer Support team –...
- Page 6 TIGER MALAYAN GARAGE LOG CABIN GENERAL INSTRUCTIONS Step 1: UNPACKING CABIN COMPONENTS: • Unpack all components from your supplied cabin pack(s) and place each individual component in the correct order using the supplied construct diagram and parts list as a guide. Ensure all components are present and in the correct position before beginning assembly.
- Page 7 Please retain instructions for future reference Step 2: GARAGE DOOR FRAME ASSEMBLY • To begin with locate the metal door strip with two tanalised bearers pre-attached and the two sides of the door frame, these will have the hinge pins pre-attached. •...
- Page 8 TIGER MALAYAN GARAGE LOG CABIN GENERAL INSTRUCTIONS Step 3: LAY DOWN TANALISED BEARERS • Refer to the floor plan of your construct diagram, position the tanalised bearers on prepared base. • For orientation. (Detail C) NOTE: ON LARGER CABINS, TANALISED BEARERS MAY BE SUPPLIED IN MORE THAN 1 PIECE.
- Page 9 Please retain instructions for future reference Step 4: BEGIN BUILDING WALLS • Place 1st layer of logs on the edges of the bearers. Ensure half logs are put down first. See construct diagram for build order. • Measure corner to corner diagonally to make sure cabin floor is square. If both values are equal, your frame is square.
- Page 10 TIGER MALAYAN GARAGE LOG CABIN GENERAL INSTRUCTIONS Step 5: INSTALL DOORS & WINDOWS • Take the assembled doors and frame and slide over the logs until fully inserted. Position centrally within opening. This will leave a gap either side for settling.
- Page 11 Please retain instructions for future reference Step 6: INSTALL GABLE TOPS • Place on top of the eaves height logs. NOTE: LARGER CABINS MAY HAVE ADDITIONAL TRUSSES TO SUPPORT ROOF. PLEASE REFER TO YOUR CONSTRUCT DIAGRAM. Step 7: INSTALL PURLINS •...
- Page 12 TIGER MALAYAN GARAGE LOG CABIN GENERAL INSTRUCTIONS Step 8: INSTALL ROOF BOARDS • Before installing the roof boards, check that the cabin is square both vertically & horizontally. Adjust if required. • Position a tongue & groove roof board flush with purlin at one end of roof.
- Page 13 Please retain instructions for future reference Step 10: FELT THE ROOF - MEASURE AND CUT BEFORE INSTALLING FELT • Roll felt out onto a clean flat surface 30 minutes before you need it so it has a chance to flatten out. •...
- Page 14 TIGER MALAYAN GARAGE LOG CABIN GENERAL INSTRUCTIONS Step 11: ATTACH ROOF FASCIA BOARDS (BARGEBOARDS) • Attach roof fascias using 4x N40 per fascia board. Nail through top purlin and bottom roof batten. Complete the look with finials over the join at apex. Secure using 2x N40 per finial.
- Page 15 Please retain instructions for future reference Step 13: INSTALL INTERNAL ROOF BATTENS • Fix internal roof battens to the top side logs using 4x S40 evenly spaced along the batten as shown. (Detail K) • These will seal roof and side walls. Step 14: ATTACH STORM BRACES •...
- Page 16 TIG/INS42 Display Agent Woodlands DIY Store Station Yard, Horsforth, Leeds, LS18 5NZ Telephone: 0113 205 4189 Website: tigersheds.com Email: customersupport@tigersheds.com...
