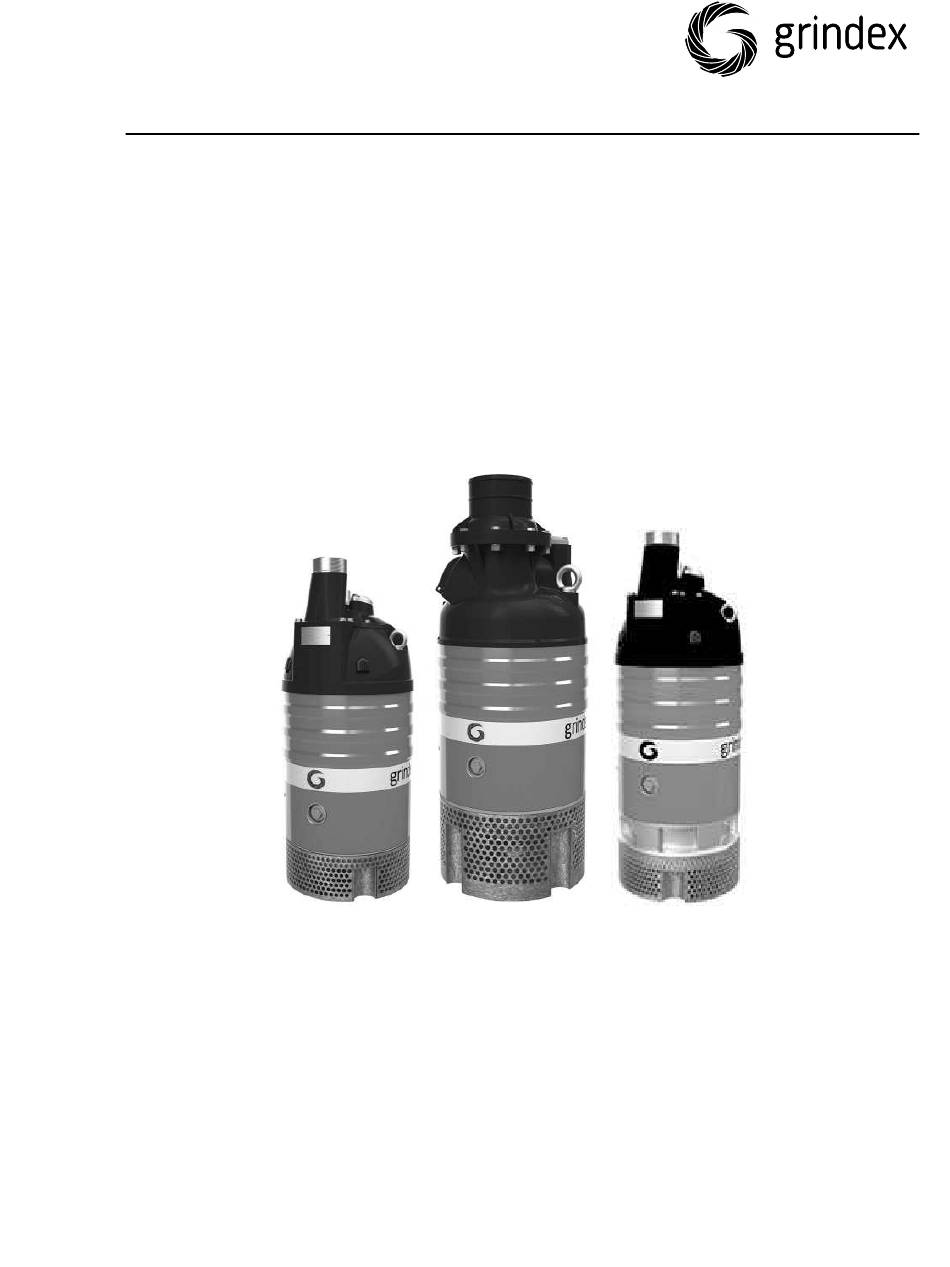

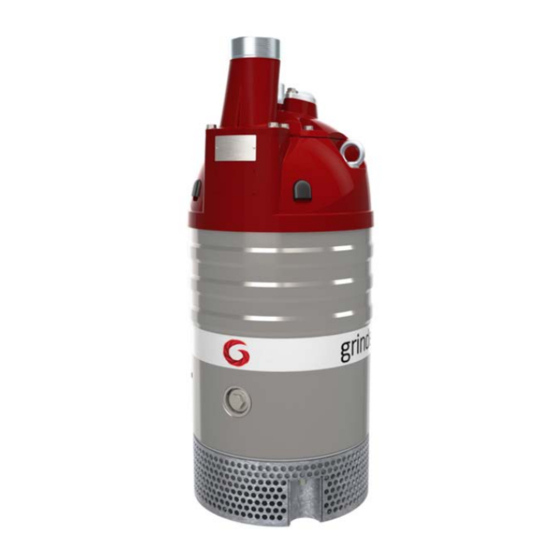

- Page 1 Revision 2.0 Installation, Operation, and Maintenance Manual 8107.011/.030/.300/.590 Maxi...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction and Safety......................3 Introduction................... 3 Safety terminology and symbols............... 3 User safety.................... 4 Special hazards..................5 Protecting the environment..............6 Spare parts....................6 Warranty....................6 Transportation and Storage....................7 Inspect the delivery................7 Inspect the package................7 Inspect the unit................... - Page 4 Table of Contents Remove the impeller, alternative 3............37 Remove the impeller, alternative 4............39 Install the impeller, alternative 1............41 Install the impeller, alternative 2............42 Install the impeller, alternative 3............45 Install the impeller, alternative 4............51 Adjust the impeller................53 Replace the diffuser................
-
Page 5: Introduction And Safety
This includes any modification to the equipment or use of parts not provided by Grindex. If there is a question regarding the intended use of the equipment, please contact a Grindex representative before proceeding. -
Page 6: User Safety
Introduction and Safety Hazard level Indication Notices are used when there is a risk of NOTICE: equipment damage or decreased performance, but not personal injury. Special symbols Some hazard categories have specific symbols, as shown in the following table. Electrical hazard Magnetic fields hazard Electrical Hazard: CAUTION:... -
Page 7: Special Hazards
Introduction and Safety Subject area Requirements Service and repair • Inspections, service, and repairs are only allowed when the portable cable is disconnected from the power supply. • Work must be performed by trained personnel (preferably the manufacturer or agent) to ensure that the pump is restored to its original state of safety in regards to all flame-arresting paths. -
Page 8: Protecting The Environment
• Sorting, recycling and disposal of solid or liquid waste • Clean-up of spills Exceptional sites CAUTION: Radiation Hazard Do NOT send the product to Grindex if it has been exposed to nuclear radiation, unless Grindex has been informed and appropriate actions have been agreed upon. Spare parts CAUTION: Only use the manufacturer’s original spare parts to replace any worn or faulty... -
Page 9: Transportation And Storage
Transportation and Storage Transportation and Storage Inspect the delivery Inspect the package 1. Inspect the package for damaged or missing items upon delivery. 2. Note any damaged or missing items on the receipt and freight bill. 3. File a claim with the shipping company if anything is out of order. If the product has been picked up at a distributor, make a claim directly to the distributor. -
Page 10: Storage Guidelines
Transportation and Storage temperatures below the freezing point. The recommended method to warm the unit up is to submerge it in the liquid which will be pumped or mixed. NOTICE: Never use a naked flame to thaw the unit. Unit in as-delivered condition If the unit is still in the condition in which it left the factory - all packing materials are undisturbed - then the acceptable temperature range during transportation, handling and storage is: –50°C (–58ºF) to +60°C (+140ºF). -
Page 11: Product Description
Always follow the limits given in Application limits on page 62. If there is a question regarding the intended use of the equipment, please contact a Grindex representative before proceeding. DANGER: Explosion/Fire Hazard Special rules apply to installations in explosive or flammable atmospheres. Do not install the product or any auxiliary equipment in an explosive zone unless it is rated explosion-proof or intrinsically-safe. -
Page 12: Monitoring Equipment
Product Description Impeller type Wear resistant Poly-Life ® Version code 011/030/300: The pump is available with polyurethane wear parts for extra resistance. Monitoring equipment The following applies to the monitoring equipment of the pump: • The stator incorporates thermal contacts connected in series that activate the alarm at overtemperature. -
Page 13: Approvals
Product Description Approvals Product approvals for hazardous locations Pump model Approvals Maxi 8107.590 MSHA: Mine Safety and Health Administration, USA. 30CFR Part 7, Approval number 07- JA090015-0 The MSHA approval plate 8107.011/.030/.300/.590 Maxi Installation, Operation, and Maintenance Manual... -
Page 14: Installation
Installation Installation Install the pump Before starting work, make sure that the safety instructions in the chapter Introduction and Safety on page 3 have been read and understood. DANGER: Electrical Hazard Before starting work on the unit, make sure that the unit and the control panel are isolated from the power supply and cannot be energized. -
Page 15: Install
Installation Figure 1: Settling pump-sump Discharge line requirements The discharge line can be run vertically or horizontally, but must be without sharp bends. Proper horizontal and vertical installation Improper installation with a sharp bend Fasteners • Only use fasteners of the proper size and material. •... -
Page 16: Make The Electrical Connections
Installation 4. Place the pump on the base and make sure it cannot fall over or sink. The base should consist of a plank, a bed of coarse gravel, or a cut-down and perforated oil drum. Alternatively, the pump can be suspended with a lifting chain just above the sump bottom. - Page 17 If the outer sheath of the cable is damaged, then replace the cable. Contact a Grindex service shop. • The voltage drop in long cables must be taken into account. The drive unit’s rated voltage is the voltage measured at the cable connection point in the pump.
-
Page 18: Product-Specific Precautions
Installation Ground (earth) conductor length The ground (earth) conductor must be 100 mm (4.0 in) longer than the phase conductors in the junction box of the unit. Product-specific precautions Short-circuit protection The short-circuit protection should be in accordance with the rated data shown on the data plate. - Page 19 Installation The prepared SUBCAB cable The prepared screened SUBCAB cable ® ® 1. T1+T2 twisted pairs in control element 1. T1+T2 and T3+T4 twisted pairs in control element 2. Drain wire in control element (bare copper wire) 2. Drain wire in control element (bare copper wire) 3.
-
Page 20: Connect The Motor Cable To The Pump: Version Code 011/030/300
Installation d) Twist all power core screens together to create a ground (earth) core and fit a cable terminal to the end. e) Check that the ground (earth) core is at least 10% longer than the phase cores in the cabinet. 5. - Page 21 Installation Part Description Screws Entrance flange Figure 4: Cable entry for version code 011 N and 030 L 1. Check the data plate to see which connections are required for the power supply: – Y – D – Y serial –...
-
Page 22: Connect The Motor Cable To The Pump: Version Code 590
Installation Connect the motor cable to the pump: Version code 590 Position number Description Position Description Hexagon head screw number Cable entry Minimum clearance 3.2 mm (0.13 in) Gland flange Cable strain relief Seal sleeve Figure 6: Cable strain relief Figure 5: Cable entry 1. -
Page 23: Cable Charts
Installation Cable charts Connection locations T1 T2 T3 T4 L1 L2 L3 Starter equipment and main Coil leads (L1, L2, L3) Ground (earth) Transformer Functional ground Capacitor Control leads (T1, T2, T3, T4) Softstarter Phase shifter Level regulator Diode Contactor, start relay or thermal relay Motor cable Thermal detector in stator... - Page 24 Installation Code Description Green GNYE Green-Yellow Grey Blue Yellow 8107.011/.030/.300/.590 Maxi Installation, Operation, and Maintenance Manual...
- Page 25 Installation View of terminal board and sensor connections 8124 Connection plate MAIN TERMINAL BOARD SENSOR TERMINALS SENSORS CONNECTION AT 4 LEADER PILOT CABLE THERMAL MAX 250v 8107 DETECTORS MAX 6A, cos =0,6 IN STATOR MAX 10A, cos =1 8108 THERMAL MAX 2,5V DETECTOR IN 8124...
-
Page 26: Check The Impeller Rotation: Pumps Without Built-In Motor Protection
Installation Motor cable, stator leads and thermal contacts connection to terminal board SYMBOLS AND DENOMINATIONS =Terminal BN=Brown BK=Black =Screen WH=White 8107 OG=Orange 8108 =Ground GN=Green GNYE=Green-Yellow 8124 =Functional ground RD=Red GY=Grey =Connection BU=Blue YE=Yellow =Crimp isolation GC= Ground check A = Cable dimension in cable specification 51 675 01 Screen as ground conductor Functional... -
Page 27: Check The Phase Sequence: Pumps With Built-In Motor Protection
Installation CAUTION: Crush Hazard The starting jerk can be powerful. Make sure nobody is close to the unit when it is started. Check the direction of rotation each time the cable has been re-connected and after phase or total supply failure. 1. - Page 28 Installation Figure 8: Start reaction 1. Connect the pump to power as follows: Condition Action The pump has a CEE plug with Connect the plug. internal phase shifter. The pump has a phase shifter with an Turn the knob on the phase shifter in on/off switch.
- Page 29 Installation Condition Action The pump has a CEE plug with 1. Pull out the plug. internal phase shifter. 2. Shift two phases. 3. Wait until the motor has stopped. 4. Connect the plug. The pump has a phase shifter with an 1.
-
Page 30: Operation
Operation Operation Precautions Before taking the unit into operation, check the following: • All recommended safety devices are installed. • The cable and cable entry have not been damaged. • All debris and waste material has been removed. NOTICE: Never operate the pump with the discharge line blocked, or the discharge valve closed. -
Page 31: Clean The Pump
Operation 3. Remove the fuses or open the circuit breaker, and check that the impeller can be rotated freely. WARNING: Crush Hazard Never put your hand into the pump housing. 4. Check that the monitoring equipment (if any) works. 5. Check that the impeller rotation is correct. 6. -
Page 32: Maintenance
Maintenance Maintenance Precautions Before starting work, make sure that the safety instructions in the chapter Introduction and Safety on page 3 have been read and understood. DANGER: Crush Hazard Moving parts can entangle or crush. Always disconnect and lock out power before servicing to prevent unexpected startup. -
Page 33: Torque Values
Maintenance Torque values All screws and nuts must be lubricated to achieve correct tightening torque. Screws that are screwed into stainless steel must have the threads coated with suitable lubricants to prevent seizing. If there is a question regarding the tightening torques, please contact the local sales and service representative. -
Page 34: Inspection
Maintenance NOTICE: Shorter intervals may be required when the operating conditions are extreme, for example with very abrasive or corrosive applications or when the liquid temperatures exceed 40°C (104°F). Inspection Regular inspection and service of the pump ensures more reliable operation. Service item Action Visible parts on... -
Page 35: Major Overhaul
Maintenance Service item Action Cable 1. If the outer jacket is damaged, replace the cable. 2. Check that the cables do not have any sharp bends and are not pinched. Cooling system If the flow through the system has been partly restricted, then rinse and clean. -
Page 36: Replace The Impeller
Maintenance 4. Fit the oil drainage tube (optional). The tube is included with the pump at delivery. 5. Turn the pump so that the oil hole faces downwards and let the oil run out into a container. Fill with oil 1. -
Page 37: Remove The Impeller, Alternative 2
Maintenance 1. Lay the pump on its side or turn it upside down. 2. Remove the strainer: a) Remove the nuts. b) Remove the strainer. 3. Remove the suction cover: a) Remove the nuts. b) Remove the washers. c) Remove the suction cover. d) Remove the O-ring. - Page 38 Maintenance 2. Remove the suction cover. 3. Remove the O-ring. 4. Loosen the impeller: a) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar. b) Remove the impeller screw and the washer. 5. Remove the impeller: a) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar.
-
Page 39: Remove The Impeller, Alternative 3
Maintenance c) Pull off the impeller. Remove the impeller, alternative 3 CAUTION: Cutting Hazard Worn parts can have sharp edges. Wear protective clothing. Table 7: Applicability Product code Pressure class Open or closed impeller 8107.011 Closed 1. Remove the strainer. 2. - Page 40 Maintenance Use pliers, a screwdriver, or similar. b) Remove the impeller screw and the washer. 5. Remove the impeller: a) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar. b) Turn the adjustment screw counterclockwise until the impeller breaks free from the shaft.
-
Page 41: Remove The Impeller, Alternative 4
Maintenance 7. Remove the inner diffuser. 8. Remove the upper diffuser. 9. Remove the impeller: a) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar. b) Turn the adjustment screw counterclockwise until the impeller breaks free from the shaft. Use a 12 mm hexagon bit adapter (Allen socket) with a 100 mm (4 in) extension. - Page 42 Maintenance 2. Loosen the impeller: a) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar. b) Remove the impeller screw and the washer. 3. Remove the impeller: a) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar. b) Turn the adjustment screw counterclockwise until the impeller breaks free from the shaft.
-
Page 43: Install The Impeller, Alternative 1
Maintenance Install the impeller, alternative 1 Table 9: Applicability Product code Pressure class Open or closed impeller 8107.030 Open 8107.590 N, H Open 1. Prepare the shaft: a) Polish off any flaws with a fine emery cloth. The end of the shaft must be clean and free from burrs. b) Clean and grease all sealing surfaces and O-rings. -
Page 44: Install The Impeller, Alternative 2
Maintenance 4. Fit the washer and the nut. For 8107.030, the fastener is a screw. 5. Tighten the impeller nut. For 8107.030, the fastener is a screw. Product code Tightening torque, Nm (ft-lb) 8107.030 76 (57) Tighten a further 1/8 turn, 45° after tightening to the correct torque. - Page 45 Maintenance 2. Align the edge of the adjustment screw with the edge of the conical sleeve so that they are flush. WS001759A 3. Grease the threads of the impeller screw and the washer. The proper lubrication of the screw and washer is lubricating grease for assembly of bolts etc., for example, Kluber ALTEMP Q NB 50 or equivalent.
- Page 46 Maintenance 7. Mount the suction cover with its O-ring and tighten. Tightening torque: 76 Nm (57 ft-lb) 8. Turn the adjustment screw clockwise until the impeller makes contact with the suction cover. Tighten a further 1/8 turn, 45°. This will ensure the correct clearance between the impeller and the suction cover in the next step.
-
Page 47: Install The Impeller, Alternative 3
Maintenance The screw will be loaded to its yield point and the load capacity of the joint will be higher. e) Check that the impeller can rotate freely. 10.Mount the strainer and the nuts. Tightening torque: 76 Nm (57 ft-lb) Install the impeller, alternative 3 Table 11: Applicability Product code... - Page 48 Maintenance 1. Prepare the shaft: a) Polish off any flaws with a fine emery cloth. The end of the shaft must be clean and free from burrs. b) Coat the inner conic, the outer cylindrical surfaces, and the thread of the conical sleeve with a thin layer of grease.
- Page 49 Maintenance 5. Assemble the upper conical sleeve and the upper impeller onto the shaft. 6. Mount the diffuser parts and tighten. 7. Mount the suction cover with its O-ring and tighten. Tightening torque: 76 Nm (57 ft-lb) 8. Turn the adjustment screw clockwise until the impeller makes contact with the suction cover.
- Page 50 Maintenance 9. Remove the suction cover. 10.Remove the O-ring. 11.Align the edge of the lower adjustment screw with the edge of the lower conical sleeve so that they are flush. WS001759A 12.Assemble the lower conical sleeve and the lower impeller onto the shaft end of the upper impeller.
- Page 51 Maintenance 13.Mount the suction cover with its O-ring and tighten. Tightening torque: 76 Nm (57 ft-lb) 14.Turn the lower adjustment screw clockwise until the lower impeller makes contact with the suction cover. Tighten a further 1/6 turn, 60°. This will ensure the correct clearance between the lower impeller and the suction cover in the next step.
- Page 52 Maintenance 15.Fasten the impeller: a) Place the washer on the impeller screw. b) Lock the impeller to prevent rotation. Use pliers, a screwdriver, or similar. c) Tighten the impeller screw. Tightening torque: 76 Nm (57 ft-lb) d) Tighten a further 1/8 turn, 45°. The screw will be loaded to its yield point and the load capacity of the joint will be higher.
-
Page 53: Install The Impeller, Alternative 4
Maintenance Install the impeller, alternative 4 Table 12: Applicability Product code Pressure class Open or closed impeller 8107.011 N, H Open 8107.300 Open 1. Prepare the shaft: a) Polish off any flaws with a fine emery cloth. The end of the shaft must be clean and free from burrs. b) Coat the inner conic, the outer cylindrical surfaces, and the thread of the conical sleeve with a thin layer of grease. - Page 54 Maintenance WS001759A 3. Grease the threads of the impeller screw and the washer. The proper lubrication of the screw and washer is lubricating grease for assembly of bolts etc., for example, Kluber ALTEMP Q NB 50 or equivalent. 4. Check that the impeller screw is clean and easy to screw into the shaft end. This is to prevent the shaft from rotating with the impeller screw.
-
Page 55: Adjust The Impeller
Maintenance Adjust the impeller Table 13: Applicability Product code Pressure class Open or closed impeller 8107.011 N, H Open 8107.030 Open 8107.300 Open 8107.590 N, H Open In order for the pump to perform at maximum capacity, the impeller must be adjusted regularly. -
Page 56: Replace The Diffuser
Maintenance 3. Fit the O-ring. Fit the washers also. 4. Press the suction cover against the impeller. 5. Tighten the adjusting nuts so that they lie flush against the suction cover. WS001825A 6. Back off all adjusting nuts another half turn (counter-clockwise). 7. - Page 57 Maintenance 2. Install the diffuser: a) Mount the diffuser. b) Fasten the diffuser with the screws and washers. Tightening torque: 160–200 Nm (120–150 ft-lb) 8107.011/.030/.300/.590 Maxi Installation, Operation, and Maintenance Manual...
-
Page 58: Troubleshooting
• The sensor indicators do not indicate an alarm. • The overload protection is not tripped. If the problem still persists: Contact the local Grindex service shop. The pump does not start Check that: automatically, but can be • The start level regulator is functioning. Clean or started manually. - Page 59 • The sump in order to prevent the impeller from clogging again. If the problem persists, contact the local Grindex service shop. Always state the product number and the serial number of your pump when you contact Grindex, Product Description on page 9.
-
Page 60: The Pump Does Not Start, For Pumps With Smart
– If no glove or phase shifter is used, then shift two phase conductors in the cabinet. If the problem persists, contact the local Grindex service shop. Always state the product number and the serial number of your pump when you contact Grindex, Product Description on page 9. -
Page 61: The Pump Starts-Stops-Starts In Rapid Sequence
The stop level is set too Raise the stop level. low. If the problem persists, contact the local Grindex service shop. Always state the product number and the serial number of your pump when you contact Grindex, Product Description on page 9. -
Page 62: The Pump Delivers Too Little Or No Water
• Or, disconnect and reconnect the power. WARNING: Crush Hazard Risk of automatic restart. If the problem persists, contact the local Grindex service shop. Always state the product number and the serial number of your pump when you contact Grindex, Product Description on page 9. - Page 63 • Depending on the installation type, add a means for priming the pump, such as a foot valve. If the problem persists, contact the local Grindex service shop. Always state the product number and the serial number of your pump when you contact Grindex, Product Description on page 9.
-
Page 64: Technical Reference
For specific weight, current, voltage, power rating, and speed of the pump, see the data plate on the pump. For starting current, see Motor data on page 62. For other applications, contact the nearest Grindex representative for information. Motor data Feature Description... - Page 65 Technical Reference 8107.011, 3-phase, 50 Hz, N, H Motor type: • 2,940 rpm • 37 kW (50 hp) Voltage, V Connection Rated current, A Starting current, 1000 8107.300, 3–phase, 50 Hz, H Motor type: • 2,910 rpm • 25 kW (34 hp) Voltage, V Connection Rated current, A Starting current,...
- Page 66 Technical Reference 8107.030, 3-phase, 50 Hz, L Motor type: • 1,465 rpm • 30 kW (40 hp) Voltage, V Connection Rated current, A Starting current, 8107.011, 3-phase, 60 Hz, N, H Motor type: • 3,540 rpm • 43 kW (58 hp) Voltage, V Connection Rated current, A Starting current, A...
- Page 67 Technical Reference Voltage, V Connection Rated current, A Starting current, A 8107.300, 3–phase, 60 Hz, H Motor type: • 3,510 rpm • 29 kW (39 hp) Voltage, V Connection Rated current, A Starting current, DSER DSER 8107.030, 3-phase, 60 Hz, L Motor type: •...
-
Page 68: Specific Motor Data: Version Code .590
Technical Reference Specific motor data: Version code .590 3-phase, 60 Hz Motor type: • 3,540 rpm • 43 kW (58 hp) Voltage (V) Rated current (A) Starting current (A) 440 D 460 D 575 D Dimensions and weights 8107.011 SH 100 mm (3.9 in) 119 mm (4.7 in) ISO-G4A... -
Page 69: 8107.011 H And 8107.300 H
Technical Reference 8107.011 H and 8107.300 H 436 mm (17 in) WS009086A Figure 12: 8107.011 H, 8107.300 H Pump Weight without motor cable, kg (lbs) 8107.011 H 240 (530) 8107.300 H 285 (628) 8107.011 N and 8107.030 L 506 mm (20 in) WS009087A Figure 13: 8107.011 N, 8107.030 L... -
Page 70: 8107.590 H
Technical Reference Dimension A Dimension B 8 in (203 mm) (hose) 1302 mm (51.3 in) ISO-G6, NPT 6 1227 mm (48.3 in) ISO-G8, NPT 8 1217 mm (47.9 in) Pump Weight without motor cable, kg (lbs) 8107.011 N 280 (618) 8107.030 L 285 (628) 8107.590 H... -
Page 71: 8107.011 Sh
Technical Reference 8107.011 SH 35 l/s 35 l/s 550 gpm 0 50 Figure 15: 8107.011 SH: 50 Hz Figure 16: 8107.011 SH: 60 Hz 8107.011 N, H: Open impeller P [kW] P [hp] / [kW] H [m] H [ft] / [m] 80 100 120 140 160 100 120 140 160 1000... -
Page 72: 8107.300 H: Open Impeller
Technical Reference 8107.300 H: Open impeller P [kW] P [hp] / [kW] H [m] H [ft] / [m] 1000 Q [l/s] Q [l/s] / [usgpm] Figure 19: 8107.300 H: 50 Hz Figure 20: 8107.300 H: 60 Hz 8107.011/.030/.300/.590 Maxi Installation, Operation, and Maintenance Manual... -
Page 73: 8107.030 L
Technical Reference 8107.030 L P [kW] P [hp] / [kW] H [m] H [ft] / [m] 500 1000 1500 2000 2500 3000 3500 Q [l/s] Q [l/s] / [usgpm] Figure 21: 8107.030 L: 50 Hz Figure 22: 8107.030 L: 60 Hz 8107.011/.030/.300/.590 Maxi Installation, Operation, and Maintenance Manual... -
Page 74: 8107.590 H
Technical Reference 8107.590 H P [hp] / [kW] H [ft] / [m] 1000 Q [l/s] / [usgpm] Figure 23: 8107.590 H: 60 Hz 8107.011/.030/.300/.590 Maxi Installation, Operation, and Maintenance Manual... - Page 76 Visit our Web site for the latest version of this document and more information Gesällvägen 33 174 07 Sundbyberg The original instruction is in English. All non-English www.grindex.com instructions are translations of the original instruction. Sweden Tel: +46-8-606 66 00 © 2009 Grindex Fax: +46-8-745 53 28 www.grindex.com 885990_2.0_en-US_2016-05_IOM.8107...
