- Page 2 Copyright notation © 2012 Nanjing IOT Sensor Technology Co., Ltd All Rights Reserved. Wulian， is the trademark and registered trade mark of Nanjing IOT Sensor Technology Co., Ltd. The other products mentioned in this article or company names may be the trademark or trade name of their respective owners.

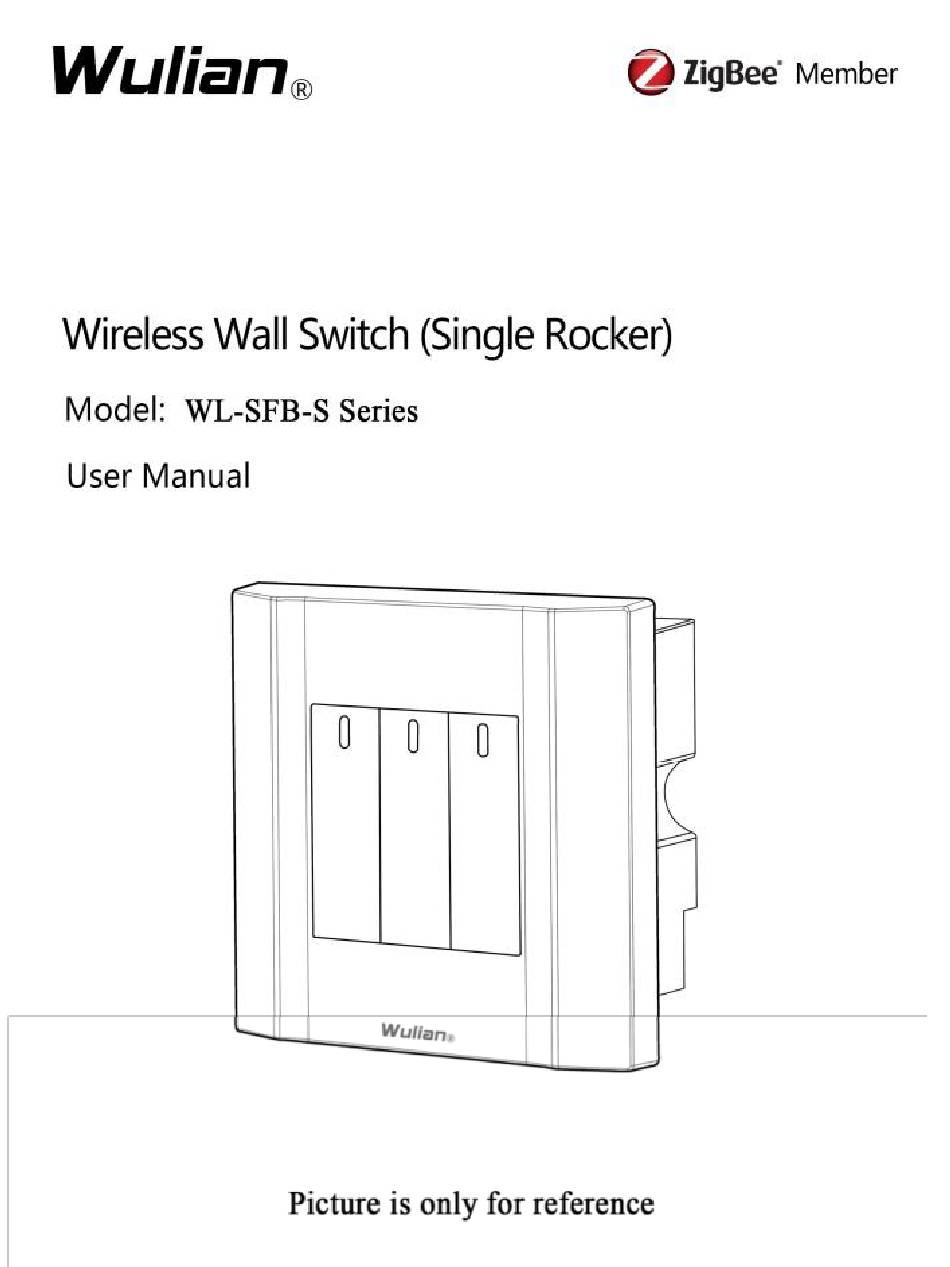

- Page 3 Wireless Wall Switch (Single Rocker) Series User Manual When using, if the practical situation of the product is different with that in the manual, or if you want to get more information, or you have any questions or ideas, please contact us as below: Ⅰ...
- Page 4 Wireless Wall Switch (Single Rocker) Series User Manual Ⅱ .Function Features Support ZigBee HA protocol ZigBee device type：Repeater Simple and fashionable shape Rocker design with easy and flexible operation Easy to install Ⅲ . Function illustration...
- Page 5 Wireless Wall Switch (Single Rocker) Series User Manual Multi - functional Key LED Indicator Decorative Cover Body...
- Page 6 Wireless Wall Switch (Single Rocker) Series User Manual Ⅳ . Installation steps Connect this product with the wire of the wall box; Null Line Version 1-way 2-way 3-way Protect the earth 1-way 1-way 1-way load output Load Output Load output (LiveLine) (LiveLine) (Live Line)
- Page 7 Wireless Wall Switch (Single Rocker) Series User Manual 2-way load 2-way output Load output ∕ (Live Line) (LiveLine) 3-way Load output ∕ ∕ (Live Line) ∕ ∕ ∕ Null Line Input∕Load null line output Live Line Input Single live line version...
- Page 8 Wireless Wall Switch (Single Rocker) Series User Manual 1-way 2-way 3-way Protect the earth 1-way 1-way 1-way load Output Load output Load output (live line) (liveline) (liveline) 2-way 2-way Load output Load output ∕ (live line) (live line) 3-way Load output ∕...
- Page 9 Wireless Wall Switch (Single Rocker) Series User Manual Live Line Input Note: Please make sure that the power has been turned off before installation! Dangerous, non-professionals are prohibited operating without authorization. Choose the version that is required. Fasten the base of this product inside the wall box with 2 screws, same installation method with the ordinary wall switch;...
- Page 10 Wireless Wall Switch (Single Rocker) Series User Manual...
-
Page 11: Application Methods
Wireless Wall Switch (Single Rocker) Series User Manual Shut down the decorative cover for the final installation. V. Application methods 1. Networking setup (1) It can be used as an ordinary wall switch, or used together with communication gateway; shown in the picture). - Page 12 Wireless Wall Switch (Single Rocker) Series User Manual (2) Quickly click【multi-function key】4 times to join ZigBee...
- Page 13 Wireless Wall Switch (Single Rocker) Series User Manual network. LED indicator flashes wh en it is searching the network ; LED indicator goes out 2 seconds later when joining ZigBee netw ork succeeds. The single click time shall be within 1s. (3) Long press 【Multifunction Key】10 s to resume to default setting.
- Page 14 Wireless Wall Switch (Single Rocker) Series User Manual after flashing for 4 times Factory setup is not to join ZigBee network by default. (Note: Operation steps of 1-way and 2-way switch are the same with 3-way one.)
- Page 15 (1) Choose the related software according to different smart mobile terminal: a) Android users can search for the term“wulian” in Google Play Store, select “Wulian Smart Home” for downloading; b) iPhone and iPad users can log into APP Store and search for the term“Wulian”, select “Wulian Smart Home”for downloading;...
- Page 16 Wireless Wall Switch (Single Rocker) Series User Manual (4) It also supports computer operation according to users’ needs. 3. How to use Users can control the switch with ease via mobile terminal device and choose any scene mode. Specific operational processes see various versions of instructions.
- Page 17 Wireless Wall Switch (Single Rocker) Series User Manual dry it with soft cloth, cleaning fluid with corrosive composition and other chemical solvent are forbidden. Storage Those products packed in boxes should be placed in the location which is dry, free of corrosive gas and available to air. The height of pile should be no more than 10 layers.
- Page 18 Wireless Wall Switch (Single Rocker) Series User Manual 250g Weight 200g Net Weight Multiple colors available Color Ⅷ . Contents within the package Components Quantity Wireless Wall Switch (Single Rocker) Decorative cover...
- Page 19 Wireless Wall Switch (Single Rocker) Series User Manual Instruction Screw(s) Ⅸ . Ordering Information Product Art.No. Model NO. WLPN1211151 （Single live line version） 1-way WL-SFB-S01 WLPN1211161 （Null line version） WLPN1211152 2-way WL-SFB-S02 （Single Live line version）...
- Page 20 Wireless Wall Switch (Single Rocker) Series User Manual WLPN1211162 （Single live line version） WLPN1211153 （Single live line version） 3-way WL-SFB-S03 WLPN1211163 （Null line version） Packing 138×118×68mm Size Power 110V-250V Type of Workload...
- Page 21 Wireless Wall Switch (Single Rocker) Series User Manual Capacitive/Resistive load: 300W per way （Incandescent lamp & downlight） Single live line version Inductive load: 150W per way （inductive fluorescent lamp） Resistive load: 1000W per way Inductive / capacitive load: 350W Null line version Total load shall be within 2000W （resistive load）...
