Instructions for Use
Bed Exit and Occupancy Monitor
Applicable to products:

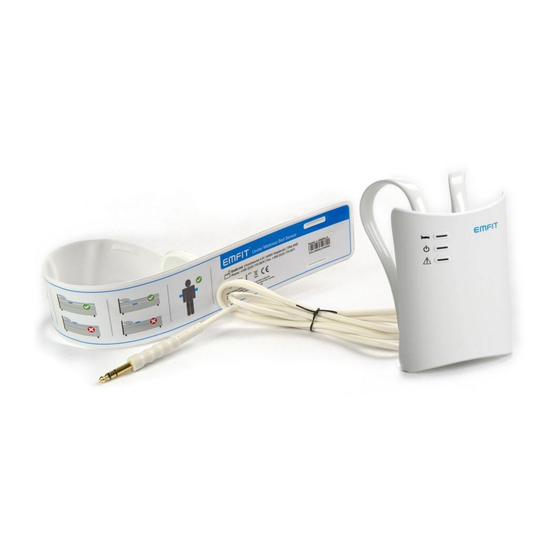

Control unit D-1070-2G, t66 v.1.2.3
Bed sensor L-0656SLC
04 April 2013
Emfi t, the Emfi t logo and Safebed are either registered
trademarks or trademarks of Emfi t Ltd.
Copyright © 2002–2013 Emfi t Ltd. All right reserved. Patented,
patents pending (see list at www.emfi t.com).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Safebed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emfit Safebed

Summary of Contents for Emfit Safebed

  • Page 1 Control unit D-1070-2G, t66 v.1.2.3 Bed sensor L-0656SLC 04 April 2013 Emfi t, the Emfi t logo and Safebed are either registered trademarks or trademarks of Emfi t Ltd. Copyright © 2002–2013 Emfi t Ltd. All right reserved. Patented, patents pending (see list at www.emfi t.com).

  • Page 2: Table Of Contents

    17. CLEANING ..............................10 18. DISPOSAL OF THE DEVICE AFTER USE ....................10 19. DECLARATION OF CONFORMITY (EU) ..................... 10 20. EMFIT LIMITED WARRANTY STATEMENT ....................10 21. TECHNICAL SPECIFICATIONS ........................12 21.1. Control unit ............................12 21.2. Sensor ............................... 12 21.3.

  • Page 3: Advarsler

    1. Advarsler 1.1. Vigtig information. læs før enheden tages i brug. Må ikke anvendes i situationer, hvor en forsinkelse i ankomsten af passende pleje, kan føre til en potentielt livstruende situation. • Denne enhed er kun beregnet til at blive brugt som en hjælp til en omsorgsperson. •...

  • Page 4: Introduction

    Følg alle instruktioner i dette dokument vedrørende installation, brug og rengøring af enheden. • I overensstemmelse med den påtænkte anvendelse, der er defineret i afsnit 3.1 nedenfor, er Emfit Safebed ikke en medicinsk • anordning som defineret i direktivet om medicinsk udstyr 93/42 / EØF.

  • Page 5: Senge Sensor (Picture 6)

    5.2. Bed sensor (picture 6) The bed sensor produces a millivolt alternating current when detecting movement. The control unit calculates the frequency and scale of the movement from this signal and, on this basis, detects the person's presence in the bed. Heartbeat causes micro-movement that allow the device to detect the person's presence.

  • Page 6: Justering Af Lydstyrken (Switches #7 And #8)

    6.3. Justering af lydstyrken (switches #7 and #8) Der er fire lydstyrker: Meget højt, højt, lav og mute. Fabriksindstillingen er meget højt. Lydstyrke Switch #7 Switch #8 Meget højt OFF (down) OFF (down) Højt ON (up) OFF (down) Lav. OFF (down) ON (up) Mute ON (up)

  • Page 7: Connectors And Cables

    X1 / connector for an external power supply. Only use Globtek inc. power supply model no. GTM41060-1505 and P/N: WR9QA3000L- CP-N-MNK which can be obtained as an original accessory from Emfit Ltd. X2 / AUX connector to connect the device to a nurse call system, a personal emergency phone or an external wireless transmitter.

  • Page 8: With Bed Side Clip

    10.1. With bed side clip 1) Press the control unit down to the clip (picture 20) 11. INSTALLATION OF THE BED SENSOR • Place the bed sensor across the bed, under the mattress at approximately chest height. (picture 12) • To prevent the bed sensor from moving, fix the sensor to the bed bottom or mattress using the double sided tape provided or e.g.

  • Page 9: Signal Lights (Picture 22)

    Adjust the sensitivity of the device every time the sensor is re-installed, if the user or the sensor changes. 14. SIGNAL LIGHTS (PICTURE 22) 14.1. Green – Presence Slow flash A person is on the bed or other movement is being made. Flashing A person has been on the bed for 1 minute and the device has become activated.

  • Page 10: Troubleshooting

    YOUR GUARANTEE By this Guarantee, Emfit guarantees the product to be free from defects in materials and workmanship at the date of original purchase for a period of two (2) years from that date.
  • Page 11 Emfit’s products designed to be used with the product iii.

  • Page 12: Technical Specifications

    21. TECHNICAL SPECIFICATIONS 21.1. Control unit Model: D-1070-2G Operating voltage: 3V DC with batteries/ 5V DC with external power supply Input and output Power supply, AUX and bed sensor connectors: Dry-contact output: Max. 100mA A, <60V DC, <25V AC Switches and SW1 (On/Off/Reset switch), 8 pcs DIP switches for settings (volume, delay), one 10-position rotary controls: switch for adjusting sensitivity.

  • Page 13: Electromagnetic Conditions

    Note! RF communications equipment can effect medical electrical equipment! Guidance and manufacturer’s declaration – electromagnetic emissions The Emfit Safebed is intended for use in the electromagnetic environment specified below. The customer or the user of the equipment should assure that it is used in such an environment.
  • Page 14 IEC 61000-4-11 for 5 cycles interruptions, it is recommended that 70 % UT the Emfit Safebed be powered from an (30 % dip in UT) uninterruptible power supply or battery. for 25 cycles <5 % UT (>95 % dip in UT)
  • Page 15 Guidance and manufacturer’s declaration – electromagnetic immunity The Emfit Safebed is intended for use in the electromagnetic environment specified below. The customer or the user of the equipment should assure that it is used in such an environment. Immunity test...

  • Page 16: Manufacturer

    Emfit Safebed. The Emfit Safebed is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Emfit Safebed can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Emfit Safebed as recommended below, according to the maximum output power of the communications equipment.
  • Page 18 1...8 Green Blue...
