29 September 2010
Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG
Installation and User Guide
SafeBed™ and SafeSeat™
Bed / Seat Occupancy Monitor
User's Manual with Operation and Installation
Instructions and Warranty Terms
WARNING! Must Not be used IN sItuAtIoNs WHeRe A MAlfuNctIoN
oR A lAteNt desIGN flAW IN tHe PRoduct could leAd to A delAy IN
delIveRy of APPRoPRIAte MedIcAl cARe oR tHAt Would lIkely leAd
to A PoteNtIAlly lIfe tHReAteNING sItuAtIoN

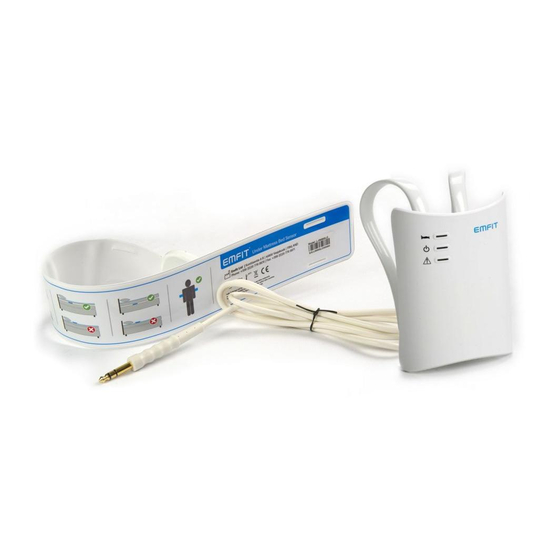

Applicable model numbers:
control unit d-1070-2G
under Mattress bed sensor l-4060sl
seat sensor l-3030sl
29 september 2010, t46 v1.1.5
emfi, emfit and emfit logo are either registered trademarks or trademarks of emfit ltd
in eu, usA, Japan and/or other countries. copyright © 2002-2010 emfit ltd. All rights
reserved. Patented, patents pending. list of patents is seen at manufacturer's web site
www.emfit.com
www.emfit.com
Advertisement
Table of Contents
Related Manuals for Emfit SafeBed
Summary of Contents for Emfit SafeBed
- Page 1 29 september 2010, t46 v1.1.5 emfi, emfit and emfit logo are either registered trademarks or trademarks of emfit ltd in eu, usA, Japan and/or other countries. copyright © 2002-2010 emfit ltd. All rights reserved. Patented, patents pending. list of patents is seen at manufacturer’s web site www.emfit.com...
-
Page 2: Important Safety Precautions
• Must not be used in situations where a delay in the arrival of appropriate medical care, could lead to a potentially life-threatening situation • Never use emfit sensors with other manufacturers’ devices • the notification may fail to sound if the sensor or its cable is damaged or the sensor is improperly positioned •... -
Page 3: Table Of Contents
13. tRoublesHootING ...................... 12 14. cleANING ........................12 15. MAteRIAls dIsPosAl ....................13 16. declARAtIoN of coNfoRMIty (eu) ................13 17. eMfIt lIMIted WARRANty stAteMeNt ................13 18. tecHNIcAl sPecIfIcAtIoNs ..................15 19. electRoMAGNetIc coNdItIoNs ................... 16 20. MANufActuReR’s coNtAct INfoRMAtIoN ..............21... -
Page 4: General Information
1. GENERAL INFORMATION 1.1 Intended Use the emfit safebed™ bed and seat occupancy Monitor (device model d-1070-2G and sensor model l-4060sl or l-3030sl) is intended to be used for a person with Alzheimer’s or dementia, for notifying the caregiver in the event that the person has left the bed or seat or has not returned to it within a predefined time. -
Page 5: Basic Settings
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 3. BASIC SETTINGS be sure to set the dIP switches to their desired settings before using. the control unit comes with the following factory default settings. Always remove the batteries and unplug the AC adapter (if using) before making changes to the DIP switch positions. -
Page 6: Setting The Notification Time Delay
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 3.2 Setting the Notification Time Delay Time Delay Switch # 1 Switch #2 Switch #3 shortest (3 or 5 sec) off (down) off (down) off (down) 5-7 seconds off (down) oN (up) off (down) 3 minutes oN (up) -
Page 7: Installing The Sensor
Never place the sensor right below the blanket or in direct contact with the person. the emfit bed sensor is designed to withstand 2 years of use below a foam mattress, against a hard bed bottom. the manufacturer recommends replacing the bed sensor after 2 years of use. -
Page 8: Connectors And Wiring
(dc), WHeRe botH Poles HAve beeN sePARAted fRoM tHe electRIcAl NetWoRk (so cAlled floAtING APPlIed PARt). MAX loAd cuRReNt 100 X3 - sensor connector (use only emfit bed sensor model l-4060sl or seat sensor model l-303sl) 6.1 X2 (AUX) Connector Pin Order from left to right:... -
Page 9: Installing The Wall Mount And The Device Into It
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 7. INSTALLING THE WALL MOUNT AND THE DEVICE INTO IT Attach the wall mount with the slide the device into the mount Press the device downwards so included two anchors and screws you hear a “click” sound 8. INSTALLING BATTERIES AND BATTERY CONSUMPTION Product operates with 2 pcs AA size 1.5 v alkaline batteries. -
Page 10: About The Optional 5V Adapter
4 pcs sure it stays in its place the emfit sAfebed bed / seat occuPANcy MoNItoR is designed and tested to be used only with Globtek Inc. power supply model: no GtM41060-1505 ANd P/N:WR9QA3000lcP-N-MNk. Any other type of Ac AdAPteR may affect the product’s safety. -
Page 11: Sw1 - Reset Switch / On-Off Switch
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 3. Red LED / Fault • the red light will blink quickly when the sensor is not connected or is broken. A notification sound is heard the first time 10 seconds after the device notices a sensor fault, and thereafter every 45 seconds. -
Page 12: Troubleshooting
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 13. TROUBLESHOOTING Always check first that the installation is correct and test the device properly after every adjustment. Notification is not getting forward via • check that the connection cable is connected correctly and is in good condition. often both... -
Page 13: Materials Disposal
Misuse, including: • treatment resulting in physical, cosmetic or surface damage or changes to the product • failure to install or use the product for its normal purpose or in accordance with emfit’s instructions on installation or use • failure to maintain the product in accordance with emfit’s instructions on proper maintenance •... - Page 14 apply.
-
Page 15: Technical Specifications
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 18. TECHNICAL SPECIFICATIONS Control Unit Model: d-1070-2G Operating voltage: 5 v dc Input / output connectors: Power, AuX and sensor Dry-contact outputs: Max. 100 mA, <60 v dc, <25 v dc Switches and controls: on/off/Reset switch, 8 dIP switches for program settings, 1 pcs 10... -
Page 16: Electromagnetic Conditions
RF communications equipment can effect medical electrical equipment! Electromagnetic emissions the emfit safebed bed / seat occupancy Monitor is intended for use in the electromagnetic environment specified below. the customer or the user of the equipment should assure that it is used in such an environment. - Page 17 40 % U environment. If the user lines Iec 61000-4-11 (60 % dip in U ) for 5 of the the emfit safebed cycles bed / seat occupancy 70 % U Monitor enquires continued (30 % dip in U...
- Page 18 Portable and mobile Rf communications equipment should be used no closer to any part of the the emfit safebed bed / seat occupancy Monitor, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
- Page 19 EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG • field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and fM radio broadcast and tv broadcast cannot be predicted theoretically with accuracy. to assess the electromagnetic environment due to fixed Rf transmitters, an electromagnetic site survey should be considered.
- Page 20 Recommended separation distances between portable and mobile RF communications equipment and the [EQUIPMENT or SYSTEM] the emfit safebed bed / seat occupancy Monitor is intended for use in an electromagnetic environment in which radiated Rf disturbances are controlled. the customer or the user of the emfit...
-
Page 21: Manufacturer's Contact Information
EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG 20. MANUFACTURER’S CONTACT INFORMATION Manufacturer: emfit ltd konttisentie 8 fI-40800 vAAJAkoskI fINlANd Phone: +358-14-332-9000 fax: +358-14-332-9001 email: info@emfit.com Internet: www.emfit.com www.emfit.com... - Page 22 EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ www.emfit.com...
- Page 23 EMFIT Manual-SafeBed-SafeSeat-t46-v1-1-5-v3.0-ENG NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ www.emfit.com...
- Page 24 Emfit Ltd Emfit, Corp. Konttisentie 8 P.O. Box 342394 40800 Vaajakoski Austin, TX 78734 FINLAND Tel: +358 14 332 9050 Office: (512) 266-6950 Fax: +358 14 332 9001 Toll Free: (877) 32EMFIT info@emfit.com Fax: (512) 266-7203 Email: sales.us@emfit.com www.emfit.com...
