Emfit safebed Operation And Installation Instructions Manual

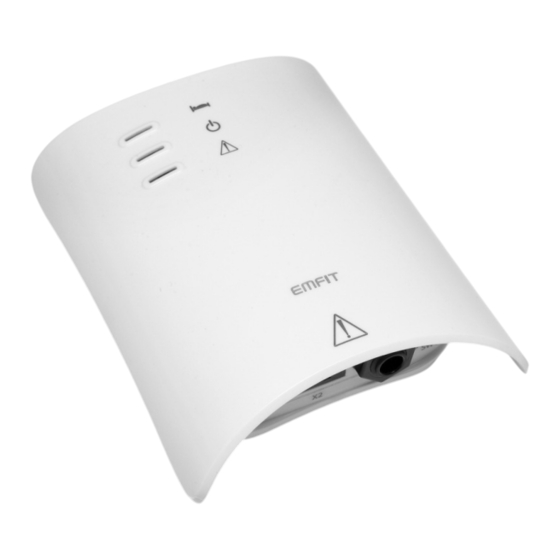

Bed occupancy monitor control unit (50 hz) and under mattress bed sensor
Hide thumbs Also See for safebed:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installer and User Manual
®
SafeBed™
Bed Occupancy Monitor
User's Manual with Operation and Installation Instructions and
Warranty Terms
WARNING! MUST NOT BE USED IN SITUATIONS WHERE A MALFUNCTION
OR A LATENT DESIGN FLAW IN THE PRODUCT COULD LEAD TO A DELAY IN
DELIVERY OF APPROPRIATE MEDICAL CARE OR THAT WOULD LIKELY LEAD
TO A POTENTIALLY LIFE THREATENING SITUATION
Applicable model numbers:
Control Unit D-1070-2G, version t46 v1.0.3 (50 Hz) or newer
Under Mattress Bed Sensor L-4060SL
Date June 27th, 2008. V2.1
Emfi, Emfit and Emfit logo are either registered trademarks or trademarks of Emfit Ltd in EU, USA, Japan and/or other countries.
Copyright © 2002-2008 Emfit Ltd. All rights reserved. Patented, patents pending. List of patents is seen at manufacturer's
website www.emfit.com.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the safebed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emfit safebed

Summary of Contents for Emfit safebed

  • Page 1 Date June 27th, 2008. V2.1 Emfi, Emfit and Emfit logo are either registered trademarks or trademarks of Emfit Ltd in EU, USA, Japan and/or other countries. Copyright © 2002-2008 Emfit Ltd. All rights reserved. Patented, patents pending. List of patents is seen at manufacturer’s...

  • Page 2: Table Of Contents

    13. TROUBLESHOOTING..............................8 14. CLEANING................................9 15. IMPORTANT SAFETY PRECAUTIONS........................... 9 16. MATERIALS DISPOSAL............................10 17. DECLARATION OF CONFORMITY (EU) ........................10 18. EMFIT LIMITED WARRANTY STATEMENT ........................10 19. TECHNICAL SPECIFICATIONS ..........................12 20. ELECTROMAGNETIC CONDITIONS..........................12 21. MANUFACTURER’S CONTACT INFORMATION......................15 DANGER NOTES THE FOLLOWING NOTES ARE PROVIDED FOR BOTH YOUR PERSONAL SAFETY AND TO PROTECT THE DESCRIBED PRODUCT OR ATTACHED DEVICES FROM DAMAGE.

  • Page 3: General Information

    Intended Use The Emfit SafeBed™ Bed Occupancy Monitor (device model D-1070-2G and sensor model L-4060SL) is intended to be used for monitoring bed occupancy and giving notification when no occupancy is detected. The product consists of a bed sensor and a control unit.

  • Page 4: Table Of Dip Switch Settings

    Table of DIP Switch Settings Switch # OFF (down) ON (up) Notification time delay setting, see next chapter Notification time delay setting, see next chapter Notification time delay setting, see next chapter Notification time delay setting, see next chapter Shortest notification time 5 seconds Shortest notification time 10 seconds Normal sensitivity for noticing micro-movements;...

  • Page 5: Installing The Bed Sensor Below Mattress

    SENSOR MUST NOT BE IN DIRECT CONTACT WITH A PERSON! THE EMFIT BED SENSOR IS DESIGNED TO WITHSTAND USE BELOW A MATTRESS, AGAINST A HARD BED BOTTOM FOR 4 – 5 YEARS OF USE. MANUFACTURER RECOMMENDS REPLACING IT AFTER 6 YEARS FROM MANUFACTURING DATE OR AFTER 5 YEARS OF USE, WHICHEVER COMES FIRST.

  • Page 6: X2 (Aux) Connector Pin Order

    X2 (AUX) Connector Pin Order From left to right: Pin #1 Common return Pin #2 Normally Open (NO) send Pin #3 Normally Closed (NC) send Pin #4 Low Battery send Pin #5 Not in use, do not connect Pin #6 Not in use, do not connect Pin #7 Not in use, do not connect...

  • Page 7: About The Optional 5V Ac Adapter

    4 pcs sure it stays in its place THE EMFIT SAFEBED BED OCCUPANCY MONITOR IS DESIGNED AND TESTED TO BE USED ONLY WITH GLOBTEK INC. POWER SUPPLY MODEL: NO GTM41060-1505 AND P/N:WR9QA3000LCP-N-MNK. ANY OTHER TYPE OF AC ADAPTER MAY AFFECT THE PRODUCT’S SAFETY.

  • Page 8: Sw1 - Reset Switch / On-Off Switch

    11. SW1 - RESET SWITCH / ON-OFF SWITCH As Reset Switch When the notification sound is ongoing it can be silenced by pressing briefly the SW1 switch (see picture). When person returns to the bed the sound stops also automatically after about 10 seconds.

  • Page 9: Cleaning

    - MUST NOT BE USED IN SITUATIONS WHERE A DELAY IN THE ARRIVAL OF APPROPRIATE MEDICAL CARE, COULD LEAD TO A POTENTIALLY LIFE-THREATENING SITUATION. - NEVER USE EMFIT SENSOR WITH OTHER MANUFACTURERS’ DEVICES. - THE NOTIFICATION MAY FAIL TO SOUND IF THE SENSOR OR ITS WIRE IS DAMAGED OR IMPROPERLY POSITIONED.

  • Page 10: Materials Disposal

    - treatment resulting in physical, cosmetic or surface damage or changes to the product - failure to install or use the product for its normal purpose or in accordance with Emfit’s instructions on installation or use - failure to maintain the product in accordance with Emfit’s instructions on proper maintenance...
  • Page 11 POSSIBILITY OF SUCH DAMAGES). Where applicable law prohibits or limits these liability exclusions, Emfit excludes or limits its liability only to the maximum extent permitted by applicable law. For example, some countries prohibit the exclusion or limitation of damages resulting from negligence, gross negligence, wilful misconduct, deceit and similar acts.

  • Page 12: Technical Specifications

    19. TECHNICAL SPECIFICATIONS Control Unit Model: D-1070-2G Operating voltage: 5 V DC Input / output connectors: Power, AUX and Sensor Dry-contact ouputs: Max. 100 mA, <60 V DC, <25 V DC Switches and controls: On/Off/Reset switch, 8 DIP switches for program settings, 1 pcs 10 position rotary switch for sensitivity adjustment Light indicators: 3 LEDs...
  • Page 13 Electromagnetic emissions The Emfit SafeBed Bed Occupancy Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the equipment should assure that it is used in such an environment. RF emissions The Emfit SafeBed Bed Occupancy Monitor...
  • Page 14 Portable and mobile RF communications equipment should be used no closer to any part of the The Emfit SafeBed Bed Occupancy Monitor, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

  • Page 15: Manufacturer's Contact Information

    The Emfit SafeBed Bed Occupancy Monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Emfit SafeBed Bed Occupancy Monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Emfit SafeBed Bed Occupancy Monitor alarm as recommended below, according to the maximum output power of the communications equipment.
