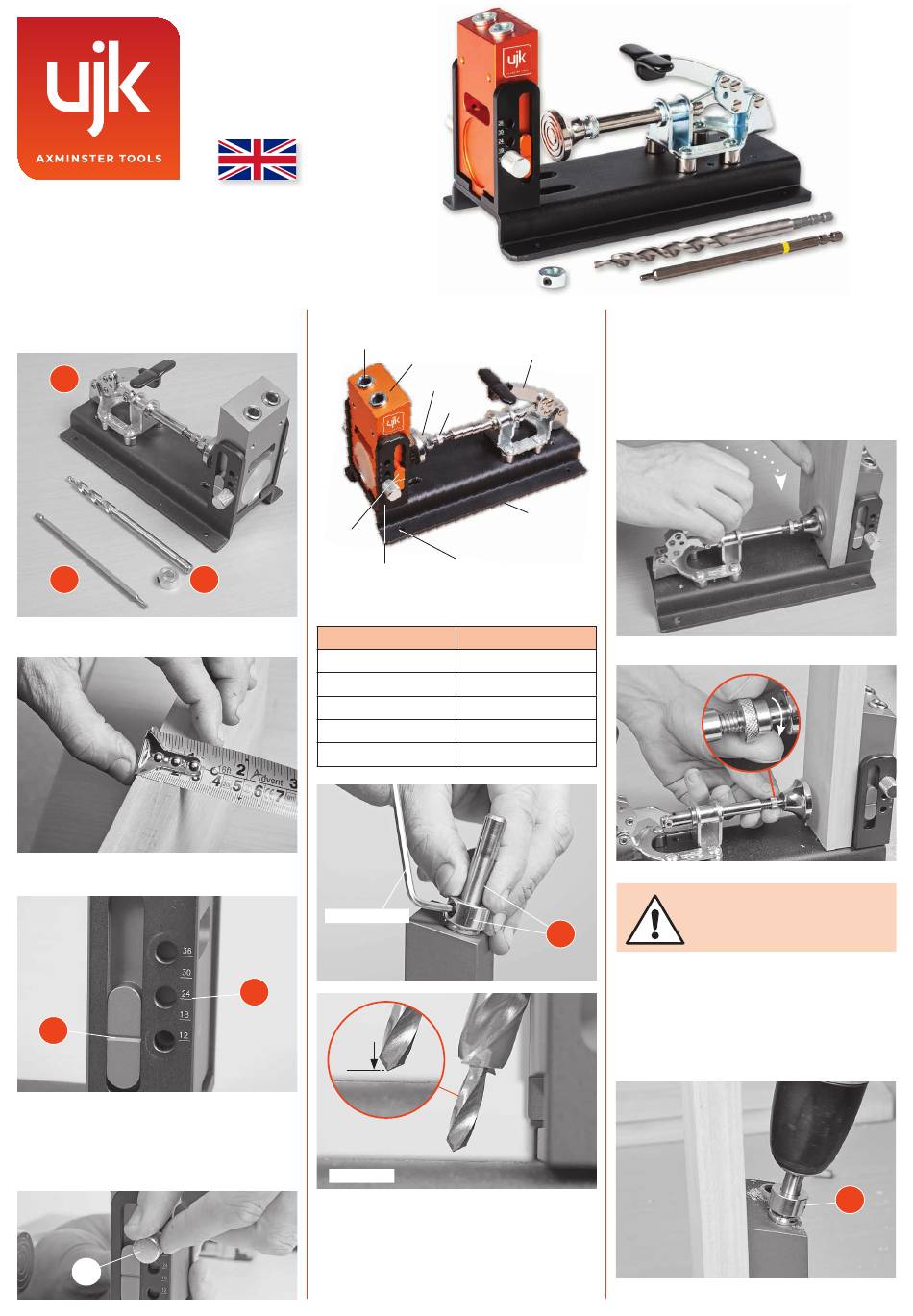

ujk technology 503726 Manual

Pocket Hole Jig
What's Included
A x1 Pocket Hole Jig
B x 1 Long Torx T20 Pozidrive bit (Code 503457)
C x 1 M2 Hex shank step drill bit and ring collar
clamp
A
B

Operating Instructions

Step 1 Measure the width of the timber, see
picture above.
a
Step 2 Line-up the machined groove (a) with
the numbered scale (b) to match the timber
thickness. See the "Drill Guide Block Chart"
to set the correct height. Lock the block in
position using the two threaded locking pins
(c).
c
English
Version
Bushing guide
Locking
Pin
Thickness guide
C
Drill Guide Block Chart
Timber Thickness
13 -17mm
18-23mm
24-29mm
30-35mm
36+mm
3mm Hex key
b
2-3mm
Base plate
Step 3 Place the ring collar clamp (C) over step
drill bit shaft, inset the drill bit into the bushing
guide hole, raise the drill bit so it's (2-3mm)
above the base plate and tighten the ring
collar flush against the bushing guide. DO NOT
OVERTIGHTEN!
Lever handle
Guide block
Clamp
Adjuster
Base plate
Work bench
mounting hole
USE
12mm
18mm
24mm
30mm
36mm
C
Code 503726
Step 4 Clamp the timber against the guide
block by pushing the lever handle forward,
making sure the timber is clamped square
and firm. If there is too much pressure or not
enough, pull back the lever handle and rotate
the threaded adjuster on the clamp shaft and
try again. Repeat the procedure until correct.
(See diagrams below)
NOTE: SET THE CORDLESS
DRILL TO HIGH SPEED!
Step 5 Attach the drill bit to the drill,carefully
insert the drill bit into one of the bushing guide
holes, start the drill, using stage cutting for
adequate chip clearance until the ring collar
(C) is flush against the bushing guide. (See
diagrams below) Repeat for the remaining hole.
Date: 21.09.2022
C
Continues Over...
