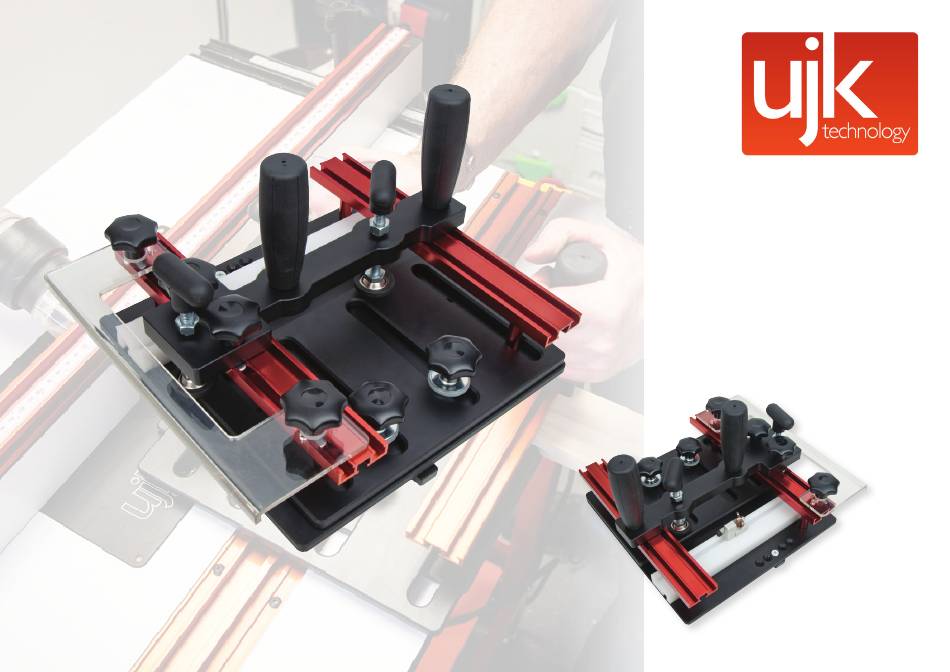

Coping Sled
AT&M: 16.03.2017
Book Ref: 103833
• Work safely, securely and achieve accurate results
• Low friction base allows for smooth gliding cuts
• 19mm Mitre bar suitable for Tee or plain slot, adjustable for zero play
• Work pieces firmly held horizontally and vertically, eliminating kickback
• Vertical clamp close to the point of cut; minimises vibration
• Nylon rear fence prevents tear-out and will not damage router cutter
• Repeat stop for multiple work pieces
• Rubberised handles, safe and secure grip for complete control
• Max width 135mm, max thickness 40mm
• Designed for use on a Router Table
Code: 102946
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ujk technology 102946
Summary of Contents for ujk technology 102946
- Page 1 • Repeat stop for multiple work pieces • Rubberised handles, safe and secure grip for complete control • Max width 135mm, max thickness 40mm • Designed for use on a Router Table Professional Coping Sled AT&M: 16.03.2017 Code: 102946 Book Ref: 103833...
-
Page 2: Table Of Contents
Sled has a 45mm wide x 22mm deep nylon fence. Unlike aluminium, nylon will not damage your router cutter. You The UJK Technology Coping Sled holds the key to working can use the fence as a spelcher if you wish or use an off-cut... -
Page 3: Parts Breakdown
Parts Breakdown... -
Page 4: Assembly Instructions
Assembly Instructions Washer Star washer/nut Remove the star washer/nut and washers from the countersink Phillips screws (P) and place safely aside. Insert the screws Tighten using a Phillips screwdriver and open ended spanner Locate the top plate (A) and place it on top through the two countersink holes on either side of the ‘T’... - Page 5 Assembly Instructions Insert the Adjustable Stop (O), ‘T’ bolt into Manoeuvre the ‘Adjustable Stop’ (O) to the centre Locate the four height spacer tubes (J), dismantle and insert Introduce the height spacer tubes the ‘T’ slot to the end of assmbly (F) and slide on of assembly (F) and lightly tighten the butterfly nut the Phillips screws into the four holes in the base (C) down over the four threads as shown...
- Page 6 Assembly Instructions Insert the two clamping knobs (K) down through the Locate the two handles (I), insert the handle with the longest Screw the other handle (I) into the remaining Insert the two remaining oval nuts (N) as described in step 23 holes in assembly (B), into the oval nuts (N), see above thread through the hole in assembly (B) into the oval nut (N) hole in the assembly (B) and lightly tighten...
-
Page 7: Parts Illustraction & Description
Parts Illustration & Description Clamping beam Clamping beam locking knob Hold down clamp Operating handle Fence guide clamping knob Guide rail Base plate Top plate ‘T’ Bar position holes Top plate clamping knob Perspex chip guard Nylon sled fence ‘T’ Bar Adjustable stop... -
Page 8: Operating Instructions
Introduction The UJK Technology professional coping sled has been designed toease the cutting of difficult end grain timber sections on the router table, from short lengths that are tricky to hold through to longer lengths that become a problem to balance and support. -
Page 9: Accessories
Operating Instructions 8. Do a test cut to check that everything is set up correctly. Use an off cut to check the correct setting up of the cutter and router table fence. Ensure that the work is held within the sled, connect the power, load sled onto the T slot on the right hand side of the table, connect power supply and ensure PPE is used. -
Page 10: Exploded Diagram/Parts List
Exploded Diagram/Parts List Index Part No Description Size 21310010 Nylon Washer 21310001 Base 940M06016 Lock Knob M6xl6 21310002 Guide Bar 21310011 Fence Oval Nuts 10100206 Guide Washer 21311001 Clamp Beam 905M06008 Flat Head M6x8 Screw 938M06020 Handle Knob M6x20 908M06008A Set Screw M6x8 938M06025... -
Page 11: Notes
Notes... - Page 12 The UJK technology brand was launched by us in 2012 with the intention of encompassing a range of carefully selected products that we held in particular high esteem. Many of these products are designed by us and manufactured by one of our most trusted suppliers. The range includes routing, measuring and wood jointing products and has already proven extremely popular.
