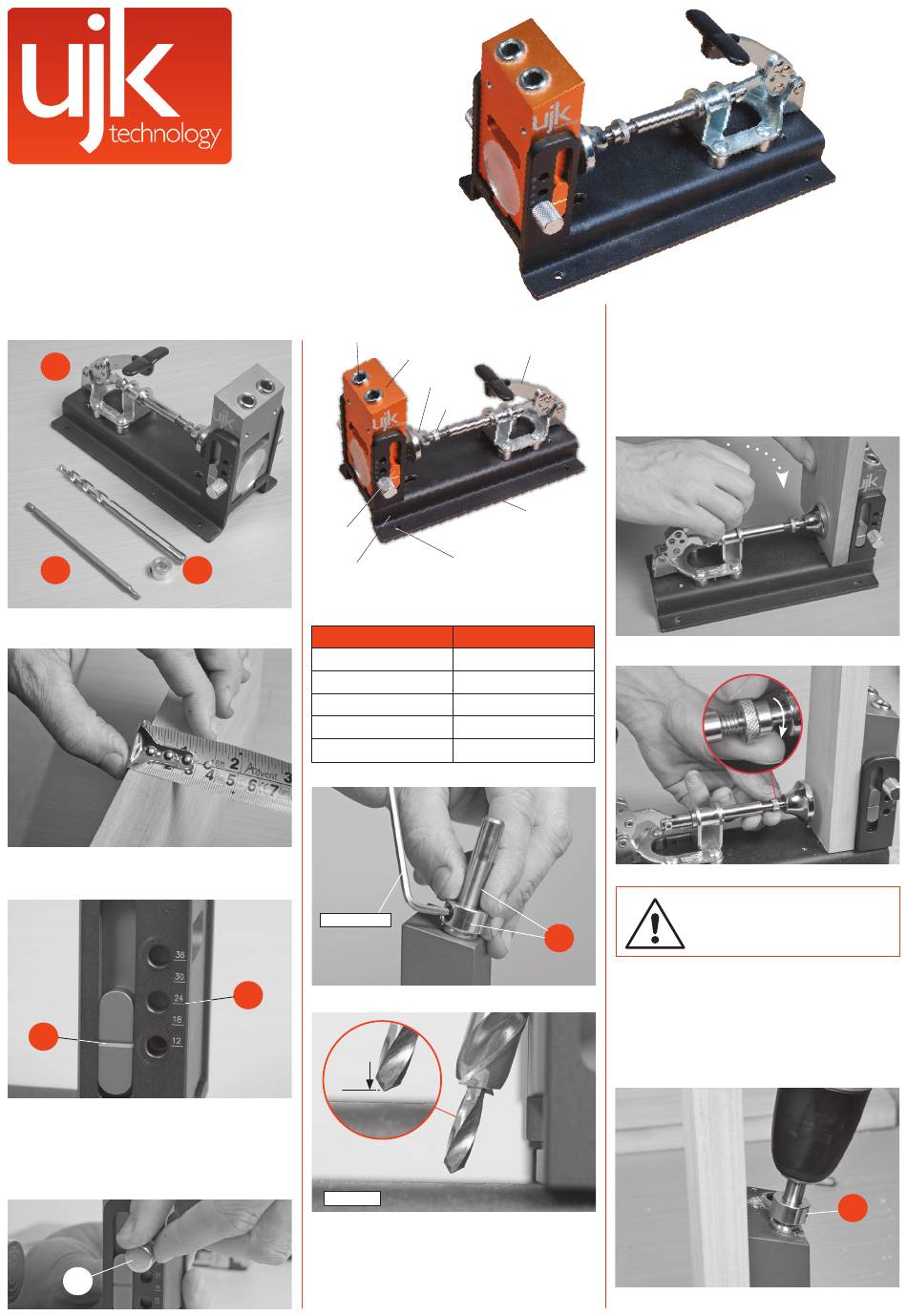

ujk technology Pocket Hole Jig Operating Instructions

Pocket Hole Jig
What's Included
A x1 Pocket Hole Jig
B x 1 Long Torx T20 Pozidrive bit ( Code 503457)
C x 1 M2 Hex shank step drill bit and ring collar clamp
A
B

Operating Instructions

Step 1 Measure the width of the timber, see picture
above.
a
Step 2 Line-up the machined groove (a) with the
numbered scale (b) to match the timber thickness.
See the "Drill Guide Block Chart" to set the correct
height. Lock the block in position using the two
threaded locking pins (c).
c
Bushing guide
Locking Pin
C Thickness guide
Timber Thickness
13-17mm
18-23mm
24-29mm
30-35mm
36+mm
3mm Hex key
b
2-3mm
Base plate
Step 3 Place the ring collar clamp (C) over step drill
bit shaft, inset the drill bit into the bushing guide
hole, raise the drill bit so it's (2-3mm) above the
base plate and tighten the ring collar flush against
the bushing guide. DO NOT OVERTIGHTEN!
Lever handle
Guide block
Clamp
Adjuster
Base plate
Work bench mounting hole
Drill Guide Block Chart
USE
12mm
18mm
24mm
30mm
36mm
Step 4 Clamp the timber against the guide block by
pushing the lever handle forward, making sure the
timber is clamped square and firm. If there is too
much pressure or not enough, pull back the lever
handle and rotate the threaded adjuster on the
clamp shaft and try again. Repeat the procedure
until correct. (See diagrams below)
NOTE: SET THE CORDLESS DRILL
TO HIGH SPEED!
C
Step 5 Attach the drill bit to the drill,carefully insert
the drill bit into one of the bushing guide holes,
start the drill, using stage cutting for adequate chip
clearance until the ring collar (C) is flush against the
bushing guide. (See diagrams below) Repeat for
the remaining hole.
Code 503726
C
Continues Over...
