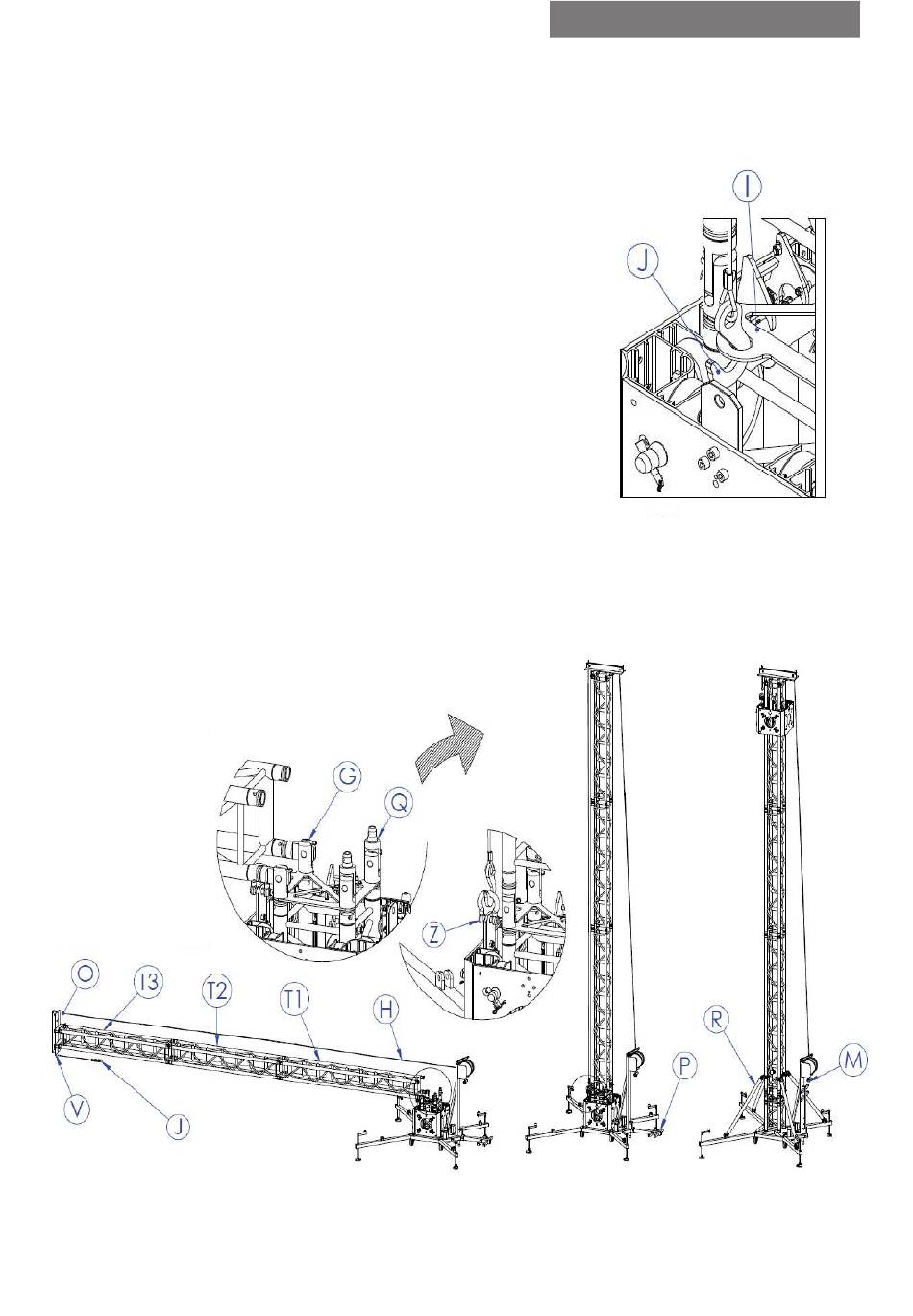

7. Slide the cable (H), pass it through the pulleys
(O) of the head (V) and hook the hook (J) into the
ring of the plate (I). Lift the ground support tower
by turning the winch handle (M) and once all the
trusses are in vertical position, connect the truss
(T1) to the rear hinges (Q) with their respective
pins. A minimum stable load of 90kg on the
counterweight (P) will be required for the lifting of
the ground support tower.
8. Hook the hook (J) into the shackle (Z) of the
sleeveblock (C) and lift it by turning the winch
handle (M).
9. With the sleeveblock (C) raised to half height,
attach the arms (R) and continue raising to the
desired height. After this, to secure the ground
support tower, it is advisable to remove the winch
handle (M).
10. For the lowering and folding process, reverse
the order of the described steps.
