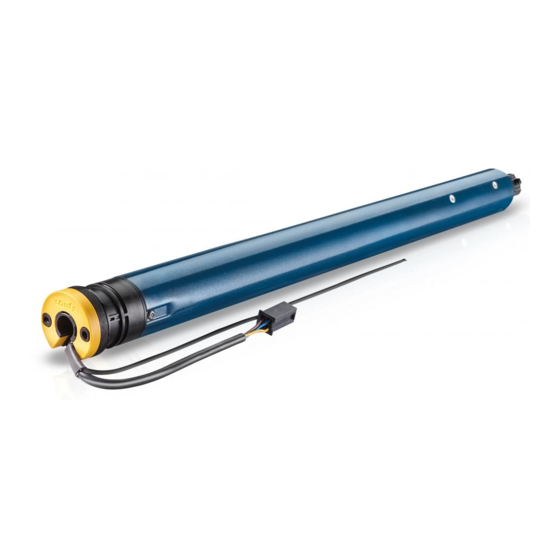

Sunea 40 Solar io
EN
Instructions
SL
Navodila

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sunea 40 Solar io and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY Sunea 40 Solar io

Summary of Contents for SOMFY Sunea 40 Solar io

  • Page 1 Sunea 40 Solar io Instructions Navodila...

  • Page 3: Table Of Contents

    Sunea 40 Solar io ORIGINAL INSTRUCTIONS These instructions apply to all Sunea 40 Solar io drives, the different versions of which are available in the current catalogue. CONTENTS 1. Prior information................................1.1. Field of application............................1.2. Liability ................................2. Installation..................................

  • Page 4: Prior Information

    • Install an individual control point for each drive. • The Sunea 40 Solar io drive must be installed with a 3.2 W Solar Panel solar panel and with either Oximo WireFree Battery, Oximo WireFree Battery Stick, or Somfy 12V NAKED BATTERY.

  • Page 5: Assembly

    2.1.1.Preparing the drive CAUTION Sunea 40 Solar io : interior diameter of the tube has to be Ø37 mm or greater. 1] Fit the accessories required to integrate the drive into the tube: ð Either only wheel (a) on the drive Ø...

  • Page 6: Wiring

    10  cm outside of the motorised product housing and at least 1  cm from all metal surfaces. To fix the drive antenna in the ideal position, it is recommended to use the Somfy ≥1 cm MOUNTED ANTENNA BRACKET accessory.
  • Page 7 3] Wire the 4-pin cable Y connector (p) to the 2-pin solar panel connector (q). 2.2.2.Wiring without connectors Wire the drive to the Oximo WireFree Battery, Oximo WireFree Battery Stick or Somfy 12V NAKED BATTERY battery (r) and the 3.2 W Solar Panel solar panel (s), following the figure: ▪...

  • Page 8: Commissioning

    Step 4: Programming the control point [⇢ 2.3.4.] Use and maintenance [⇢ 3.] NOTICE For information about the compatibility of the drive with the motorised product and accessories, contact the product manufacturer or Somfy. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 9 6] To confirm the end limits, press the my button until the motorised product briefly moves up and down. g The end limits are programmed. 2.3.3.2. Setting the end limits in manual mode NOTICE The end limits can be set in any order. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 10 - This function allows the fabric to be stretched after each opening movement of the motorised product. It can be adjusted up to ½ turn of the tube of the motorised product. - This function can only be activated once the end-limit setting of the drive is completed. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 11 - After the settings confirmation and before programming the first control point. - After programming the first control point and during the next 4 cycles. - After a single power outage and during the next 4 cycles. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 12 1 with a programmed control point, then perform step 2 with the sensor to be deleted. NOTICE For information about the compatibility of the drive with the motorised product and accessories, contact the product manufacturer or Somfy. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.

  • Page 13: Tips And Advice On Installation

    4] To confirm the new end limit, press the my button until the motorised product moves up and down. 2.4.3.Replacing a lost or broken Somfy control point NOTICE This reset deletes all the local control points, however the sensors, end limit settings and favourite position (my) are retained.

  • Page 14: Use And Maintenance

    6] Press the PROG button on the Somfy local control point for≈ 7 s, until the PROG. motorised product moves up and down twice.

  • Page 15: Favourite Position (My)

    NOTICE If the motorised product still does not work, contact a drive and home automation professional. 3.5.2.Replacing a lost or broken Somfy control point To replace a lost or broken control point, contact a drive and home automation professional. ©...

  • Page 16: Technical Data

    Philippe Geoffroy, Approval manager, acting on behalf of Activity director, Cluses, 04/2022. Somfy limited, Yeadon LS19 7ZA UK hereby declares that the drive covered by these instructions when marked for input voltage 12 V DC and used as intended according to these instructions, is in compliance with UK legislation of Machinery safety regulations S.I.2008 N°1597 and the Radio Equipment Regulations S.I.
  • Page 17 Sunea 40 Solar io PREVEDENA NAVODILA Ta navodila veljajo za vse pogonske sisteme Sunea 40 Solar io, katerih različice so naštete v tej knjižici. VSEBINA 1. Uvod ....................................18 1.1. Področje uporabe............................1.2. Odgovornost..............................2. Namestitev ..................................18 2.1. Montaža ................................

  • Page 18: Uvod

    • Pogonski sistem ne sme nikoli pasti na tla, ni ga dovoljeno tresti, vrtati vanj ali ga potapljati v tekočine. • Za vsak pogonski sistem namestite ločen upravljalnik. • Pogonski sistem Sunea 40 Solar io mora biti nameščen s sončnim panelom 3.2 W Solar Panel in Oximo WireFree Battery, Oximo WireFree Battery Stick ali Somfy 12V NAKED BATTERY.

  • Page 19: Montaža

    Sunea 40 Solar io 2.1.Montaža 2.1.1.Priprava pogonskega sistema POZOR Sunea 40 Solar io : notranji premer cevi mora znašati Ø37 mm ali več. 1] Namestite dele, ki so potrebni za vgradnjo pogonskega sistema v cev, in sicer sta na voljo naslednji možnosti: Ø...

  • Page 20: Kabelska Napeljava

    0,75 mm²). Pri dolžinah, daljših od 2,5 m, priporočamo uporabo podaljševalnega kabla z večjim presekom žice. • Pustite prost dostop do napajalnega kabla pogonskega sistema: njegova zamenjava mora biti preprosta. • Na napajalnem kablu vedno naredite upogib, da preprečite vdor vode v pogonski sistem. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 21 3] 4-polni Y-konektor kabla (p) povežite z 2-polnim konektorjem sončnega panela (q). 2.2.2.Žična povezava brez konektorjev Pogonski sistem povežite z akumulatorsko baterijo tipa Oximo WireFree Battery, Oximo WireFree Battery Stick ali Somfy 12V NAKED BATTERY (r) in sončnim panelom 3.2 W Solar Panel (s), kot je prikazano na sliki: ▪...

  • Page 22: Prvi Zagon

    Korak 4: Shranjevanje upravljalnika [⇢ 2.3.4.] Uporaba in vzdrževanje [⇢ 3.] OBVESTILO Za informacije o skladnosti pogonskega sistema z napravo na motorni pogon in dodatno opremo se obrnite na proizvajalca naprave ali družbo Somfy. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 23 Skrajna položaja sta zdaj nastavljena. 2.3.3.2. Nastavitev skrajnih položajev pomikanja v ročnem načinu OBVESTILO Skrajne položaje pomikanja lahko nastavite v katerem koli vrstnem redu. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 24 – Ta funkcija omogoča nategovanje blaga po vsakem odpiranju naprave na motorni pogon. Nastaviti je mogoče največ pol obrata navijalne cevi, s katero je opremljena naprava na motorni pogon. – Ta funkcija je lahko omogočena šele, ko je opravljen postopek nastavitve skrajne lege pogonskega sistema. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 25 – Po potrditvi nastavitev in preden shranite prvi upravljalnik. – Po shranjevanju prvega upravljalnika in med naslednjimi 4 cikli. – Po enkratnem izpadu električnega napajanja in med naslednjimi 4 cikli. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 26 1, s senzorjem, ki ga želite izbrisati, pa korak 2. OBVESTILO Za informacije o skladnosti pogonskega sistema z napravo na motorni pogon in dodatno opremo se obrnite na proizvajalca naprave ali družbo Somfy. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.

  • Page 27: Namigi In Nasveti Za Namestitev

    2.4.3.Menjava izgubljenega ali poškodovanega upravljalnika Somfy OBVESTILO Ta ponastavitev izbriše vse lokalne upravljalnike, ohranijo pa se shranjeni senzorji, nastavitve skrajnih položajev in priljubljeni položaj (my). © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.

  • Page 28: Uporaba In Vzdrževanje

    (Če je motorizirana naprava v zgornjem ali spodnjem skrajnem položaju, se na kratko premakne gor in dol.) 6] Pritisnite gumb PROG na lokalnem upravljalniku Somfy in ga zadržite za PROG. približno 7 s, dokler se motorizirana naprava ne pomakne dvakrat navzgor in navzdol.

  • Page 29: Funkcija Stop

    Motorizirana naprava ne deluje. Akumulatorska baterija v upravljalniku je Po potrebi zamenjajte akumulatorsko skoraj prazna. baterijo upravljalnika. Stanje napolnjenosti akumulatorske Glejte navodila za uporabo baterije je nizko ali pa je ta izpraznjena. akumulatorske baterije. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.
  • Page 30 Če naprava še vedno ne deluje, se obrnite na strokovnjaka za pogonske sisteme in sisteme za hišno avtomatizacijo. 3.5.2.Menjava izgubljenega ali poškodovanega upravljalnika Somfy Za menjavo izgubljenega ali poškodovanega upravljalnika se obrnite na strokovnjaka za pogonske sisteme in sisteme za avtomatizacijo hišne tehnike. © Copyright 2022 SOMFY ACTIVITES SA. All rights reserved.

  • Page 31: Tehnični Podatki

    Skrbimo za okolje. Naprave ne odvrzite med gospodinjske odpadke. Oddajte jo na ustreznem zbirnem mestu, kjer bo poskrbljeno za njeno recikliranje. SOMFY ACTIVITES SA, 74300 CLUSES FRANCE kot proizvajalec izjavlja, da je pogonski sistem, naveden v teh navodilih in uporabljen v namene, ki so opisani v teh navodilih, skladen z bistvenimi zahtevami veljavnih evropskih direktiv, predvsem Direktive o strojih 2006/42/ES in Direktive o radijski opremi 2014/53/EU.
  • Page 32 SOMFY ACTIVITES SA 50 avenue du Nouveau Monde 74300 CLUSES FRANCE www.somfy.com 5162933A...
