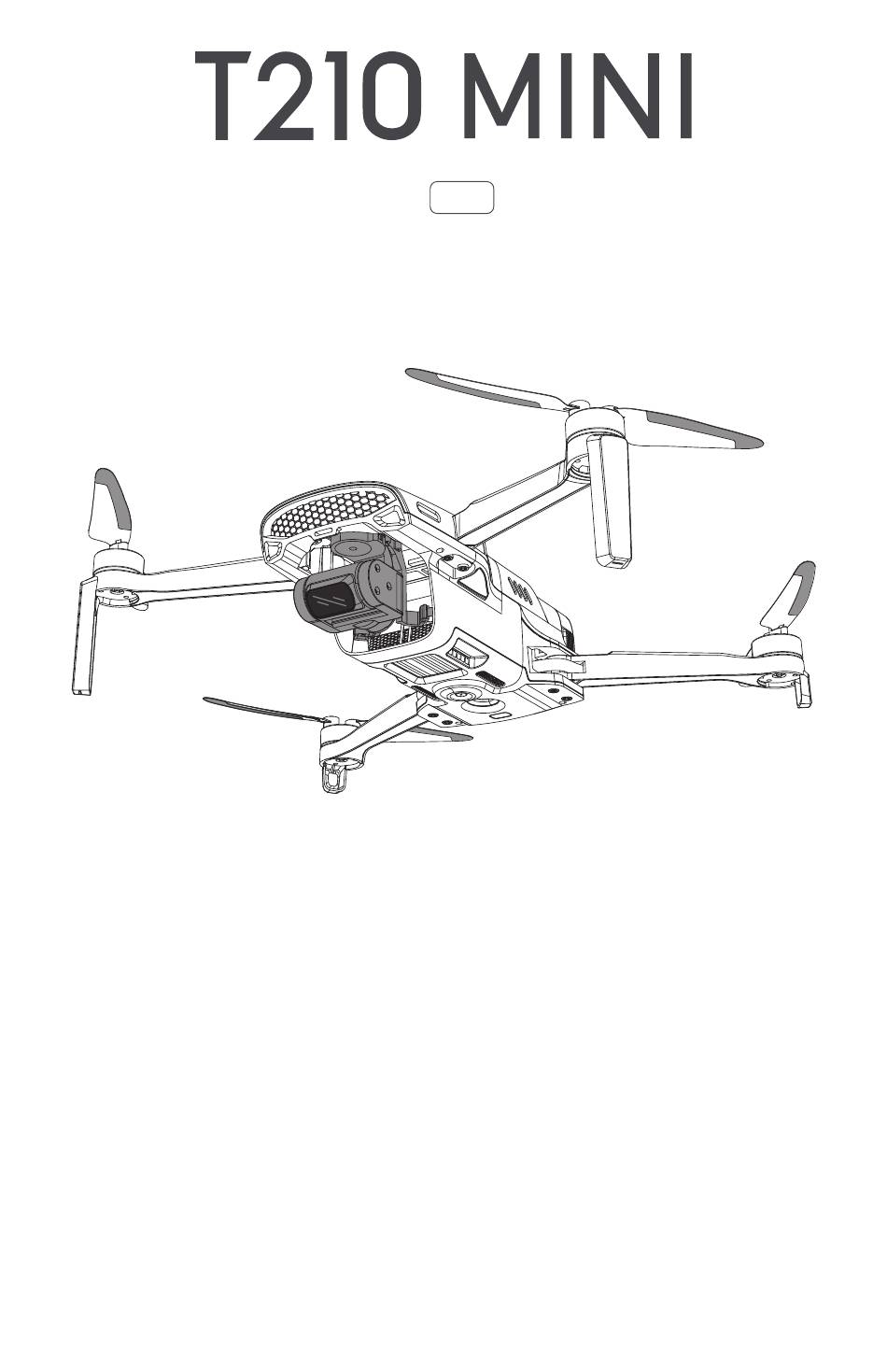

- Page 1 Operation Guide v1.0 2022.12.23 www.walkera.com...
-
Page 3: Table Of Contents
Catalogue Understand the flight safety Disclaimer & Warnings Know your aircraft Know your remote controller Parameters Check Battery Level Charging Download the WK Fly Application Introduction of the WK Fly APP interface 9-11 Preparing the remote control Prepare the aircraft 12-13 Ready to fly 13-14... -
Page 4: Understand The Flight Safety
The user undertakes to use this product only for legitimate purposes and agrees to these terms and conditions and to any related policies or guidelines that Walkera may establish. To the fullest extent permitted by law, in no event will Walkera be liable for any indirect, consequential, punitive, incidental, special or criminal damages, including damages resulting from your purchase of, use of, or inability to use this product (even if Walkera has been advised of the possibility of such damages). -
Page 5: Know Your Aircraft
15) Type-C upgrade/charging port 16) MicroSD card slot * 1) Before using T210 Mini, please watch the instructional video in WK Fly App to upgrade related firmware and calibration related items and read the "Operation Guide" carefully to avoid property damage or even personal injury caused by improper operation. -
Page 6: Know Your Remote Controller
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved Get to know your remote controller This remote control has a built-in a ground receiving terminal of 2.4G digital image transmission system . which can achieve a real-time display of high-definition images on a mobile device by using APP,with a foldable holder capable of holding mobile devices. -
Page 7: Parameters
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved Parameters Aircraft Symmetric Motor Wheelbase: 241.6mm Body Size: 167.4× 217.8× 57mm( Unfold); 143× 82.8× 57mm(Fold) Mas Take-off Weight: 249g Maximum Rise Speed: 8 m/s(adjustable) Maximum Decline Speed: 5 m/s(adjustable) Maximum Horizontal Flight Speed:... -
Page 8: Check Battery Level
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved Check Battery Level Remote controller battery: Short press the power switch to turn on the battery indicator light(displaying the battery level) to check the battery level. Aircraft battery: Short press the power switch to turn on the battery indicator light(displaying the battery level) to check the battery level. -
Page 9: Download The Wk Fly Application
Introduction of the WK Fly APP interface In this interface, you can preview the real-time HD video and photos taken by the T210 Mini, as well as dynamically set the parameters such as the aircraft, voice controller, camera gimbal and battery. - Page 10 T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved 1) Return: Return to the previous level. 15) Camera shutter icon: In photo mode, click this icon to take a photo at a time; in video mode, click the 2) Device connection status: green Device Connected shutter icon to start recording, click the shutter icon appears on the device connection;...
- Page 11 T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved 24) Take-off/RTL mode icon (when the aircraft is not 27) Position display switch: Click the icon to select taking off, the takeoff icon taking off, the takeoff icon is displayed; after the is displayed; after the...
-
Page 12: Preparing The Remote Control
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved Preparing the remote control Pull the mobile phone holder upwards and Expand the mobile phone holder Expand the antenna hold it, and after placing the mobile phone, release the hand pulling the mobile phone holder to clamp the mobile phone. -
Page 13: Ready To Fly
Activate and fly the aircraft and bind the device The new T210 MINI must be activated and bound to the device through the WK Fly App, please turn on the power of the aircraft and the remote control respectively, run the WK Fly App after connecting the mobile phone, and operate according to the interface prompts. -
Page 14: Flight Control
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved 98.5% 00:01 Connected Sport 00： 00 F en EV： TF： American 0. m 0. m 0. m/s 0. m/s V.S: H.S: Note: Before flying, download an offline map of the area you plan to fly(Download offline maps when the mobile device is connected to the Internet). - Page 15 T210 MINI(WKRC-H9) Operation guide Walkera All Rights Reserved Manual take-off Perform the following stick movements to start the motor, then slowly push the throttle stick upward to take off. Manual landing Slowly pull down the throttle stick until the aircraft touches the ground. After the aircraft touches the ground, pull the throttle stick to the lowest position and hold it for 2 seconds, then the motor stops.
- Page 16 T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved 2) When the aircraft is released by throwing, it is strictly forbidden to grab the aircraft or the propeller from the top of the aircraft, otherwise the consequences will be at your own risk.
- Page 17 T210 MINI(WKRC-H9) Operation guide Walkera All Rights Reserved 2) Move the tilt stick (ELEV) up or down to change the radius of the circle to control the aircraft to approach or move away from the target (5~50m, the default circle radius is 5m).
-
Page 18: To End The Flight
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved The horizontal distance between the aircraft and the Home point is＞20m or ＜20m The altiude difference from the Home point is greater than the set RTL Height The horizontal distance between the aircraft and the Home point is＞20m... -
Page 19: Gimbal Control
T210 MINI(WKRC-H9) Operation guide Walkera All Rights Reserved Gimbal control The three-axis stable gimbal provides a stable platform for the camera, so that the camera can also take a stable picture while the aircraft is flying at high speed.You can control the tilt angle (PIT) of the gimbal through left dial of the remote control. - Page 20 T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved Attentions: 1) In video recording, no automatic or manual switching can be made; in automatic recording, burst dimming compensation can be adjusted; in manual recording, light sensitivity ISO and burst dimming compensation can only be adjusted, and the shutter speed value cannot be adjusted.
-
Page 21: Intelligent Flight Function Description
T210 MINI(WKRC-H9) Operation guide Walkera All Rights Reserved Intelligent flight function description Intelligent flight function provides different preset auxiliary shooting intelligent flight modes such as Follow, TimeLapse, and Lock Assist. The aircraft can automatically follow the set auxiliary shooting flight mode to shoot a variety of classic aerial photography. -
Page 22: Additional Instructions
Description of downward vision system and TOF ranging system The T210 MINI downward vision system and TOF time-of-flight ranging sensing system are both located at the bottom of the aircraft. The downward vision system consists of a camera; the TOF ranging sensing system consists of a TOF detection light pulse sensor module, which can provide a reference for the height of the aircraft to ground and calculate the aircraft position information with the downward vision system. -
Page 23: Calibrating The Aircraft Compass
T210 MINI(WKRC-H9) Operation guide Walkera All Rights Reserved 4) The vision system cannot recognize surfaces without textural features, and cannot work properly in environments with insufficient or excessive light intensity. 5) Do not block or interfere with the vision system in any way, and avoid using it in an environment with too much dust and water mist, so as not to affect the clarity of the camera. -
Page 24: Remote Control Joystick Modes Switching
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved The nose up The ground The ground If the calibration is unsuccessful, please recalibrate as described above. Remote control joystick modes switching When the remote control and mobile device are connected, first click the icon "... -
Page 25: Battery Usage Instructions And Storage Safety
When the battery comes into contact with water, it may decompose with reactions, causing spontaneous combustion and even an explosion. 2) Using batteries not officially supplied by WALKERA are strictly prohibited.For replacement, please go to the WALKERA official website for the relevant purchase information.walkera is not responsible for battery accidents and flight failures caused by the use of batteries not officially provided by WALKERA. -
Page 26: Fcc Statement
T210 MINI(WKRC-H9)Operation guide Walkera All Rights Reserved FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 27 Product name Sport Aerial Aircraft T210 MINI Manufacturer Guangzhou Walkera Technology Co.,Ltd Add No.48 Wangtai Rd ,Taishi industrial Park,Dongyong Town,Nansha Dist Guangzhou,China. Service hotline +86 20-84915115 Subject to updates without notice. You can check the latest version on the official website.
