- Page 1 Instruction Manual AGF/AGFP Tabletop Gas Fryer...
-
Page 3: Table Of Contents
Exploded View ........................... 17 Parts List ..........................18-19 Replacement Parts ........................20 Warranty Information ........................ 21 Disposal & Recycling ......................... 22 Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT. Sales Tel: 01332 875544 Parry-British Built for Purpose IN107-9... -
Page 4: Product Overview

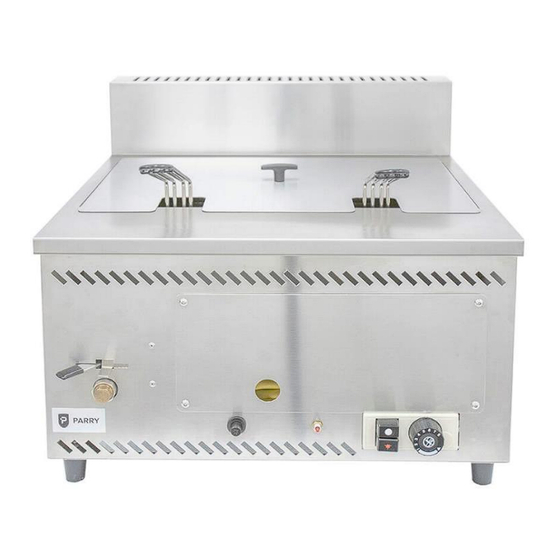

Product Overview The Parry AGF gas tabletop fryer is the ideal solution for mobile caterers and other catering establishments. Simple to clean and operate, it’s manufactured from stainless steel. Supplied with two fryer baskets as standard, the fryer is both powerful and reliable. Please note, this unit comes with a two-year, parts only warranty if purchased for a mobile catering business. - Page 5 GAS INPUT PRESSURE – Propane/ Butane Cannot be converted. Gas type must be specified Can be converted using conversion kit? at time of order. It leads the industry in: Design and aesthetic appeal Performance Power Functionality After sales support Parry-British Built for Purpose IN107-9...
-
Page 6: Safety Instructions
It is recommended the appliance be fitted below a ventilating hood, preferably of the extractor type, incorporating a grease filter. Parry-British Built for Purpose IN107-9... -
Page 7: Installation Instructions
Each fryer is supplied with 2 tabletop mounting brackets that can be used to sink the unit into a work surface. For tabletop fixings unscrew the four M5 bolts in the base of the unit until they are loose enough to slide the slotted end of the bracket underneath them and re-tighten. Parry-British Built for Purpose IN107-9... - Page 8 Manufacturer. The hose should not touch the ground and should be no longer than 1.5m long. A manual valve should be positioned upstream of the tube or hose unless the connection fitting incorporates a self-sealing quick release coupling. Parry-British Built for Purpose IN107-9...
-
Page 9: Technical Data
HEAT INPUT (NETT) NATURAL GAS G20 @ 20mbar 6.84kw PROPANE G31 @ 37mbar 5.8kw GAS RATE NATURAL GAS G20 @ 20mbar 0.71 M³/hr PROPANE G31 @ 37mbar 0.23 M³/hr INJECTORS NATURAL GAS INJECTOR 220 PROPANE INJECTOR 135 Parry-British Built for Purpose IN107-9... -
Page 10: Operating Instructions
Release the knob. If appliance fails to operate, repeat steps 3-5. The main burner is now controlled by the thermostat (B). To operate burner, turn thermostat knob (B) to required temperature. NOTE: LIDS SHOULD NOT BE USED WHILST FRYING Parry-British Built for Purpose IN107-9... - Page 11 The life expectancy of oils will be lengthened if they are filtered regularly – food particles not removed turn rancid and reduce oil quali The life of the oil will also be extended if the temperature is turned down when the fryer is not is use. Parry-British Built for Purpose IN107-9...
- Page 12 Remove the crumbs or pieces floating on the surface of the oil. When using frozen foods follow the food manufacturers cooking instructions carefully To conserve energy, turn the thermostat knob to the OFF position during breaks in frying. Parry-British Built for Purpose IN107-9...
-
Page 13: Cleaning Instructions
Re-assembly in reverse order. Stainless steel cleaners may be used for the outer surfaces of the unit, cleaning instructions on the product must be adhered to. Never clean the unit with water jets. Parry-British Built for Purpose IN107-9... -
Page 14: Maintenance Instructions
Maintenance and service must only be undertaken by a qualified electrician. Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts. - Page 15 Only leave burner on for a minimum amount of time to ensure the fryer does not get too hot. Turn the thermostat off and ensure the burner has extinguished completely within 4 seconds. Turn the thermostat on again to 150°C and ensure the burner cross lights smoothly from the pilot. Parry-British Built for Purpose IN107-9...
- Page 16 Go through the lighting up procedure, turn the thermostat to 150°C and allow to heat up. Check the thermostat cuts out the gas, turn the thermostat to 190°C, allow to heat up and note the oil temperature is 190°C+5°C. Parry-British Built for Purpose IN107-9...
-
Page 17: Fault Finding
/ 100°C Over temperature stat operates If yes, check calibration of the Manually reset over temperature control stat. (See Installation stat instructions for details) Replace Control stat then If not working manually reset over temperature stat. Parry-British Built for Purpose IN107-9... -
Page 18: Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void. -
Page 19: Exploded View
Exploded View Parry-British Built for Purpose IN107-9... -
Page 20: Parts List
*Burner Box No Code *Burner Deflektor Shield No Code Pilot w/o Electrode PILOT3WAY *Burner Box Support Leg No Code HT Lead CABLHT500 Electrode SITELCTRODE Interrupter SITWINTAG Interrupter Leads AGFINTLEAD Thermostatic Gas Valve SITGASVALVE Piezo Ignitor PIEZO1SP1 Parry-British Built for Purpose IN107-9... - Page 21 Couple 8mm x ¼” BSP Tapper COUPLE8MM Compression Fitting Main Burner Injector (Natural Gas) INJECT220 Main Burner Injector (LPG Gas) INJECT135 Tank Gland Fitting BUSH05900 Tank Gland Seal SEAL09000 Ball Valve Blanking Plug PLUGSP12 *Metalwork Components Parry-British Built for Purpose IN107-9...
-
Page 22: Replacement Parts
Refit in reverse order. SAFETY THERMOSTAT Drain fryer Remove spade connections on thermostat Remove the nut securing thermostat to fascia Untighten the gland fitting to release phial from the tank. Fit new thermostat in reverse order. Parry-British Built for Purpose IN107-9... -
Page 23: Warranty Information
Parry and not the sale or installation date of the equipment. Please ensure you have referred to the manufacturer’s instruction before placing a warranty... -
Page 24: Disposal & Recycling
Disposal & Recycling The packaging should be disposed of in accordance with the regulations in force. Parry-British Built for Purpose IN107-9...
