User Guide
Guía del usuario

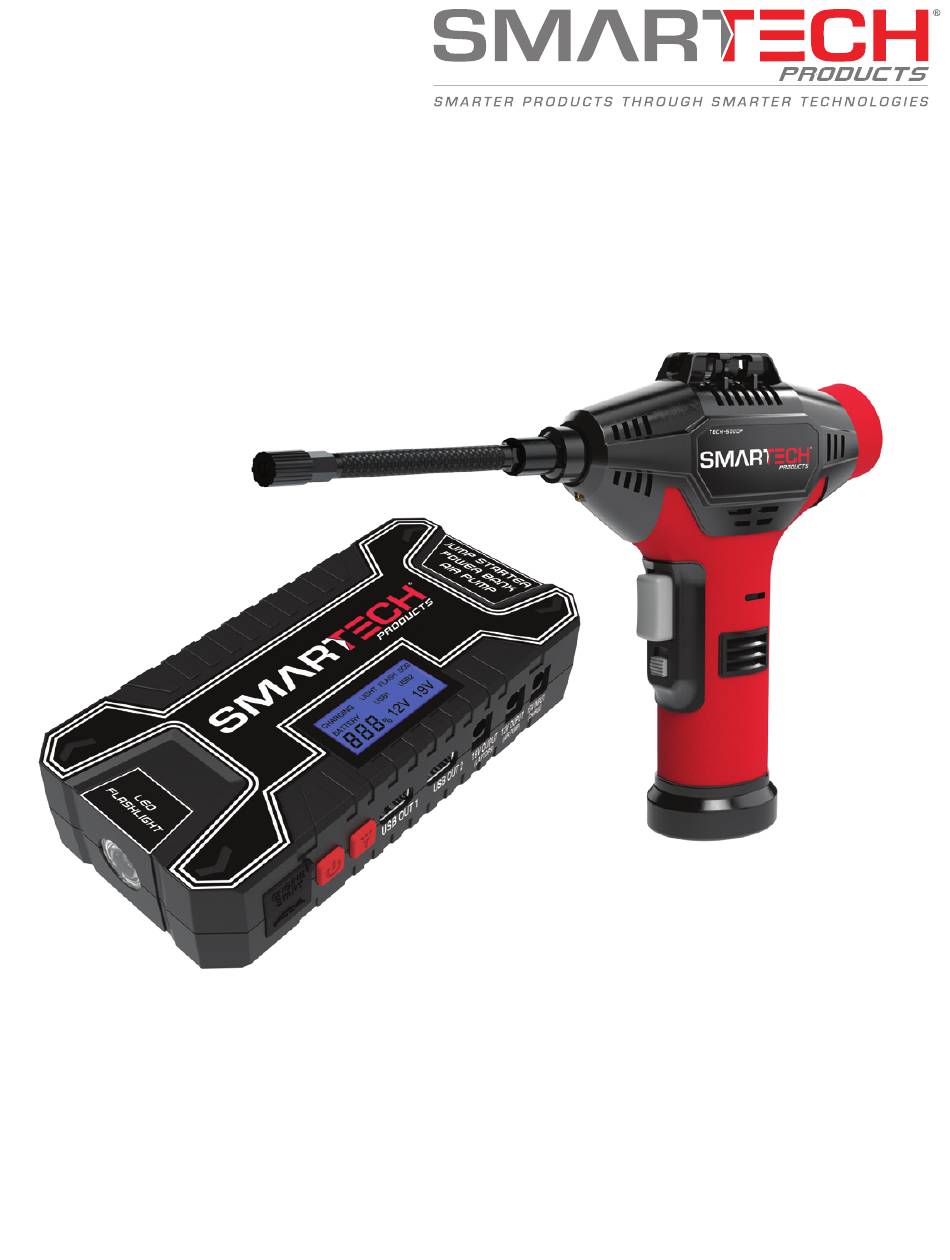

Smartech TECH-5000P Power Kit
Kit de alimentación Smartech TECH-5000P
Model/Modelo TECH-5000P
CAUTION:
Read and follow all safety
rules and operating instructions
before every use of this product.
SAVE THESE INSTRUCTIONS.
ATENCIÓN:
Lea y siga todas las reglasde
seguridad e instrucciones de uso
antes de cada uso de este producto.
GUARDE ESTAS INSTRUCCIONES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TECH-5000P and is the answer not in the manual?

Questions and answers

Related Manuals for Smartech TECH-5000P

Summary of Contents for Smartech TECH-5000P

  • Page 1 User Guide Guía del usuario Smartech TECH-5000P Power Kit Kit de alimentación Smartech TECH-5000P Model/Modelo TECH-5000P CAUTION: ATENCIÓN: Read and follow all safety Lea y siga todas las reglasde seguridad e instrucciones de uso rules and operating instructions antes de cada uso de este producto.

  • Page 2: Safety Information

    What’s included with the Smartech TECH-5000P Power Kit FULLY CHARGE IMMEDIATELY AFTER PURCHASE Fully recharge after each jumpstarting, or every 3 months to ensure long battery life. SAFETY INFORMATION Avoid dangerous environments. Do not charge this item in rain, snow, damp or wet environments.
  • Page 3 12. Do not store this unit for more than 10 days where tempera- tures may exceed 120 degrees F (50 degrees C) such as in direct sunlight, a vehicle, or metal building during the summer as it may cause damage it the unit. TECH-5000P USER’S MANUAL PAGE 3...
  • Page 4 (California law requires this warning to be given to customers in the state of California). TECH-5000P POWER BANK / JUMP STARTER The Power Bank / Jump Starter features a low voltage protection (for Power Bank / Jump Starter itself), spark proof, reverse polarity TECH-5000P USER’S MANUAL PAGE 4...

  • Page 5: Technical Specifications

    5.5L Gas Engine USB Output 5V/2.4A, 5V/2.4A LED Flashlight 19V Output 19V/3.5A for Laptops 12V Output 10A Max Operating Temperature -22˚F ~ +122˚ F Charging Temperature 32˚F ~ +104˚F Storage Temperature -4˚F ~ +95˚F (for 3 months) TECH-5000P USER’S MANUAL PAGE 5...
  • Page 6 PRODUCT FEATURES AND LAYOUT 15V/1A Input Port Output Port Output Flashlight Button Power USB Output ENGINE START Button Ports Socket TECH-5000P USER’S MANUAL PAGE 6...

  • Page 7: Lcd Display

    3 months even if this unit has not been used. If battery voltage in the TECH-5000P Power Kit is too low, the unit will shut off to prevent damage to itself. Recharge as soon as possible to be activated and fully charge it to ensure long battery life.
  • Page 8 Lithium Ion Powerbank and plug the other end of the 12V car charger cord to your car cigarette lighter. (See detailed diagram below.) Option 1 Wall Charger TECH-5000P Power Bank Wall Outlet Option 2 12V Car Car Cigarette lighter...
  • Page 9 JUMP START YOUR VEHICLE BATTERY USING THE TECH-5000P POWER BANK CONNECT TO BATTERY Identify polarity of battery posts. The positive battery terminal is typically marked by these letters or symbol (POS,P,+). The negative battery terminal is typically marked by these letters or symbol (NEG,N,-).

  • Page 10: Engine Start

    Vehicle Battery Connection TECH-5000P Power Bank BOOST Button Green Pull rubber tab to open ENGINE START Plug socket Positive Clamp Negative Clamp 12 Volt Vehicle Battery TECH-5000P USER’S MANUAL PAGE 10...

  • Page 11: Jump-Starting Procedure

    This unit is only for emergency use, not for frequent commercial use! ENGINE START socket is ALWAYS activated! Do not attempt to jumpstart your vehicle when the TECH-5000P Power Bank battery capacity is below 30%. Turn off the vehicle ignition and all accessories (radios, lights, air conditioners, etc.), and disconnect electronic devices.
  • Page 12 Green Buzzer Red LED Condition Sound One sound Jumper cables and jump starter are connected. Ready for connection to vehicle battery. One sound Jumper cable and vehicle battery are connected. Ready to start the engine. TECH-5000P USER’S MANUAL PAGE 12...

  • Page 13: Usb Power

    Jump Starter’s. USB POWER Connect the USB device to the TECH-5000P Power Bank with the included multi-tip cable (For Apple® for Apple® products, it’s better to use the original cable that came with the devise). Press the Power Button to start USB power, and press Power button to quit.
  • Page 14 The TECH-5000P Power Bank can run/charge computer laptops. Using the included accessory cord, select the appropriate input tip and connect the TECH-5000P Power Bank to your laptop. Press Power / Flashlight button to start 19V/3.5A power, and press Power button to quit. When disconnected, the TECH-5000P Power Bank will automatically shut off.
  • Page 15 10 amps or less. Two Options as follows: USING THE 12V ADAPTER Connect the TECH-5000P Power Bank to a 12V appliance with the included 12V adapter accessory. You don’t need to press the power button as the Power Bank output is ALWAYS activated.
  • Page 16 USING THE 12V CONNECTOR CORD Connect the TECH-5000P Power Bank to a 12V appliance using the included accessory cord and adapter tip. Press Power / Flashlight button to start 12V power, and press Power button to quit. When disconnected, the TECH-5000P Power Kit will automatically shut off.

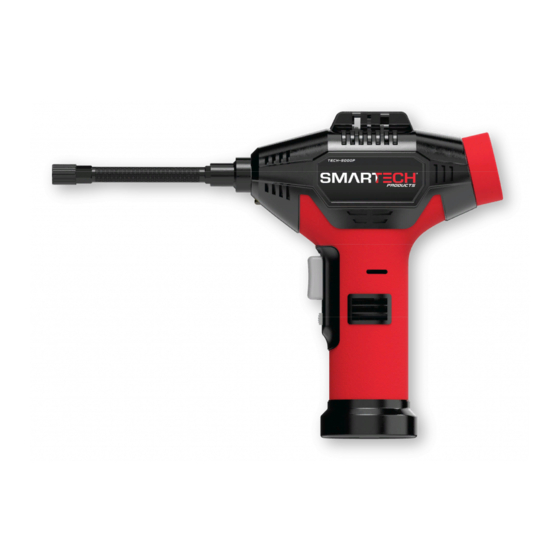

  • Page 17 TECH-5000P AIR PUMP LAP-3 Specification: Working Voltage:12V DC Current: 3.5A Peak Current: ≤7A Inflation Efficiency: 185/65R14 (Tire) to 35PSI in 5minutes Maximum Gas Pressure: 150PSI Hose Length: 5.31 inches (135mm) Working Temperature: -4˚F ~ 140˚F (-20˚C~+60˚C) Dimension: 2.44 X 7.16 X 8.90 inches (62mm X 182mm X 226mm) Weight: 1.37 lbs (620g)

  • Page 18: Work Area Safety

    IMPORTANT SAFETY INSTRUCTIONS FOR THE TECH-5000P POWER KIT (AIR PUMP) WORK AREA SAFETY Keep your work area clean and well lit. Cluttered areas invite accidents. Keep bystanders, children, and visitors away while operating an air pump. Distractions can cause you to lose control.
  • Page 19 Store idle air pumps out of reach of children and other untrained persons. Air pumps are dangerous in the hands of untrained users. TECH-5000P USER’S MANUAL PAGE 19...
  • Page 20 10. Do not exceed the pressure rating of any component in the system. 11. Protect material lines and air lines from damage or puncture. Keep hose and power cord away from sharp objects, chemical spills, oil, solvents, and wet floors. TECH-5000P USER’S MANUAL PAGE 20...

  • Page 21: Specific Safety Rules

    Never leave an air pump unattended with the air hose attached to the item being inflated. Do not continue to use a air pump or hose that leaks air or does not function properly. 10. Always disconnect the air supply and power supply before TECH-5000P USER’S MANUAL PAGE 21...
  • Page 22 A guard or other part that is damaged should be properly repaired or replaced by an authorized service center. Following this rule will reduce the risk of shock, fire, or serious injury. TECH-5000P USER’S MANUAL PAGE 22...
  • Page 23 Protect material lines and air lines from damage or puncture. Keep hose and power cord away from sharp objects, chemical spills, oil, solvents, and wet floors. TECH-5000P USER’S MANUAL PAGE 23...

  • Page 24: Operational Safety

    These items can burst and could cause serious injury. WARNING: The air pump is capable of inflating to 150 PSI. To avoid over inflation, carefully follow instructions on items to be inflated. To avoid product damage, never exceed recommended pressures. TECH-5000P USER’S MANUAL PAGE 24...
  • Page 25 WARNING: Battery tools are always in operating condition. Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. TECH-5000P USER’S MANUAL PAGE 25...
  • Page 26 POWERING THE AIR PUMP (3 OPTIONS) OPTION 1: (see Fig.1) Power the Air Pump with the TECH-5000P Power Bank and accessory cord. Using the included accessory cord, connect one end to the bottom of the Air Pump and the other end to the 12/V/10A output of the Power Bank.
  • Page 27 OPTION 2: (see Fig.2) Power the Air Pump with the TECH-5000P Power Bank, car charger and 12V adapter. Using the included car charger and 12V adapter, connect the 12V adapter to the Engine Start socket on the Power Bank. Connect one end of the car charger...
  • Page 28 Connect one end of the car charger to the bottom of the Air Pump and the other end directly to your vehicle 12V input socket. Fig.3 Fig.3 Vehicle 12V Input Socket Air Pump Input 12V Car Charger Cord TECH-5000P USER’S MANUAL PAGE 28...
  • Page 29 Pressure required for most sports balls is too low for accurate reading on tool gauge. Connect air pump to power (choose either of the 3 options mentioned in previous section). TECH-5000P USER’S MANUAL PAGE 29...
  • Page 30 If inflation time is not short, you can turn the Lock/Unlock switch upwards to lock while the Power button is pressed. In this way, the inflation continues without pressing any button. To stop the inflation, simply turn the Lock/Unlock switch downwards to unlock. TECH-5000P USER’S MANUAL PAGE 30...
  • Page 31 13. NOTE: Maximum PSI for this unit is 150 PSI 14. NOTICE: Always leave the hose free of obstructions when the tool is not in use. Overheating could occur if the hose is blocked. TECH-5000P USER’S MANUAL PAGE 31...

  • Page 32: California Proposition

    Some examples of these chemicals are: • Lead from lead-based paints • Crystalline silica from bricks and cement and other masonry products • Arsenic and chromium from chemically treated lumber. Your risk from exposure to these chemicals varies, depending on TECH-5000P USER’S MANUAL PAGE 32...
  • Page 33 Contact Smartech Inc. Customer Service and Smartech Inc. will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, Smartech Inc. will, at its option, authorize evaluation, repair or replacement of the defective part or component at a Smartech Inc.
  • Page 34 Problems caused by parts that are not original parts. Limits of Implied Warranty and Consequential Damage Smartech Inc. disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyonefrom using this product. THIS WARRANTY IS IN LIEU OF...
  • Page 35 SMARTECH INC. LIMITED WARRANTY (continued) A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit.
