User Guide
Guía del usuario
Smartech TECH-5000P Power Kit
Kit de alimentación Smartech TECH-5000P
Model/Modelo TECH-5000P
CAUTION:
Read and follow all safety
rules and operating instructions
before every use of this product.
SAVE THESE INSTRUCTIONS.
ATENCIÓN:
Lea y siga todas las reglasde
seguridad e instrucciones de uso
antes de cada uso de este producto.
GUARDE ESTAS INSTRUCCIONES.
Advertisement
Table of Contents
Related Manuals for Smartech TECH-5000P
Summary of Contents for Smartech TECH-5000P

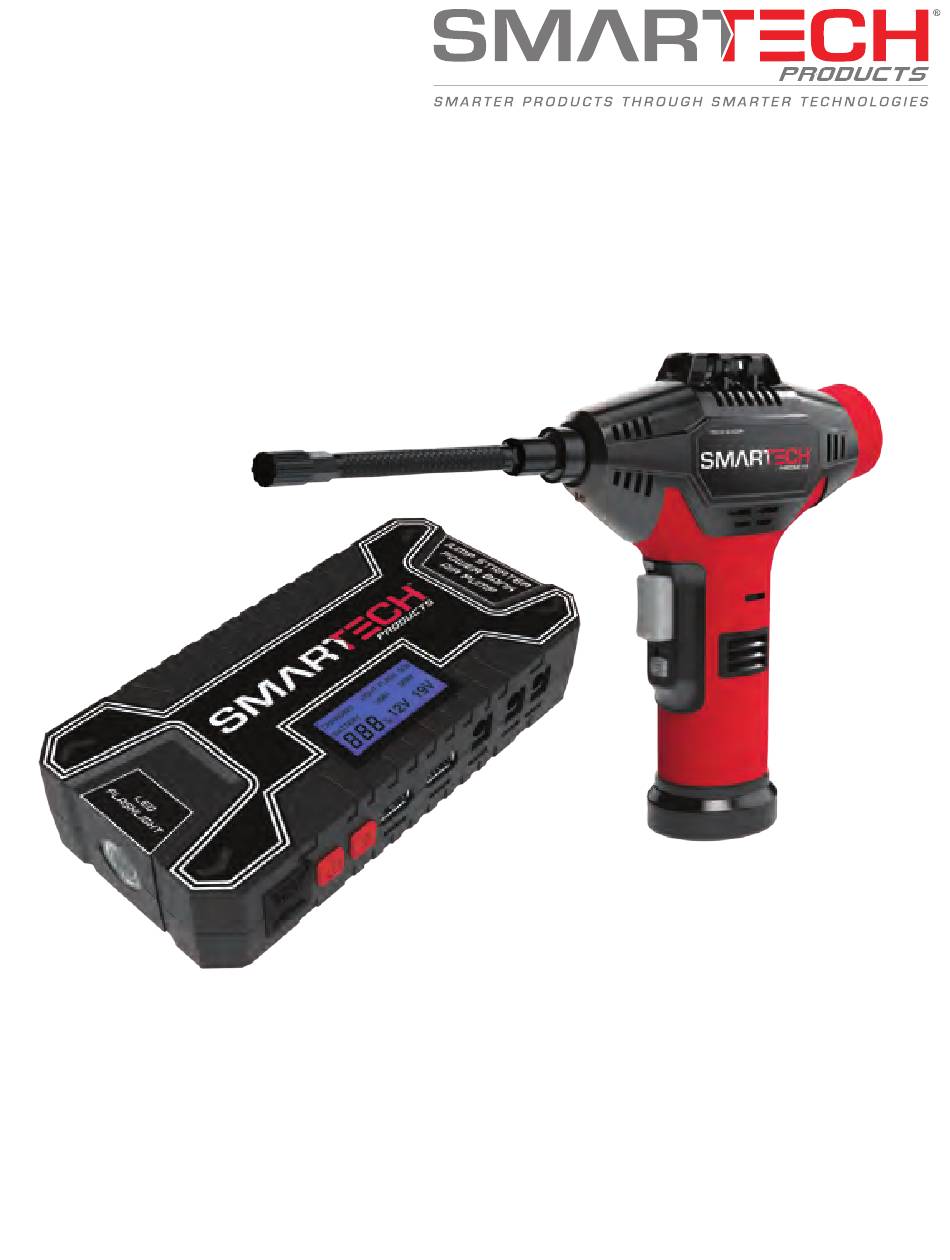

- Page 1 User Guide Guía del usuario Smartech TECH-5000P Power Kit Kit de alimentación Smartech TECH-5000P Model/Modelo TECH-5000P CAUTION: ATENCIÓN: Read and follow all safety Lea y siga todas las reglasde seguridad e instrucciones de uso rules and operating instructions antes de cada uso de este producto.
- Page 2 What’s included with the Smartech TECH-5000P Power Kit FULLY CHARGE IMMEDIATELY AFTER PURCHASE. Fully recharge after each jumpstarting, or every 3 months to ensure long battery life. TECH-5000P USER’S MANUAL PAGE 2...
- Page 3 To avoid damage to the vehicle’s electrical system, do not use the TECH-5000P Power Kit on a vehicle that has no battery installed. Use of an accessory not recommended or sold by the manufacturer may result in a risk of fire, electric shock or injury to persons.
- Page 4 11. Any repair must be carried out by the manufacturer or an authorized repair agent in order to avoid danger. TECH-5000P POWER BANK / JUMP STARTER The Power Bank / Jump Starter features a low voltage protection (for Power Bank / Jump Starter itself), spark proof, reverse polar- ity protection and short circuit protection.
- Page 5 5.5L Gas Engine USB Output 5V/2.4A, 5V/2.4A LED Flashlight 19V Output 19V/3.5A for Laptops 12V Output 10A Max Operating Temperature -22˚F ~ +122˚ F Charging Temperature 32˚F ~ +104˚F Storage Temperature -4˚F ~ +95˚F (for 3 months) TECH-5000P USER’S MANUAL PAGE 5...
- Page 6 Ports LCD DISPLAY 1 2 3 4 1. 15V/1A input 2. 5V/2.4A output 3. Light steady on 4. Light FLASH 5. 5V/2.4A output 6. Light SOS 7. Battery capacity 8. 12V output 9. 19V output TECH-5000P USER’S MANUAL PAGE 6...
- Page 7 3 months even if this unit has not been used. If battery voltage in the TECH-5000P Power Kit is too low. The unit will shut off to prevent damage to itself. Recharge as soon as possible to be activated and fully charge it to ensure long battery life.
- Page 8 This unit is only for emergency use, not for frequent commercial use! ENGINE START socket is ALWAYS activated! Do not attempt to jumpstart your vehicle when the TECH-5000P Power Bank battery capacity is below 30%. Turn off the vehicle ignition and all accessories (radios, lights, air conditioners, etc.), and disconnect electronic devices.
- Page 9 Connect the EC5 plug of smart jump clamp to the ENGINE START socket of TECH-5000P Power BANK. Wait a few seconds, the green LED light on smart jump clamp should be lit. If not, please refer to “BOOST” OPERATION section.
- Page 10 LED AND BUZZER COMMUNICATION: Red LED Green Buzzer Condition Sound One sound Smart jump clamp and Tech-5000P power bank are connected. One sound Smart jump clamp and vehicle battery are connected. Ready to start the engine. No buzzer Lithium battery voltage in TECH-5000P Power is rather low.
- Page 11 Fast buzzer Red and black clamps are connected with each other. Fast flash Fast buzzer Reverse connection of clamps. Fast flash No buzzer Engine is started. Fast flash No buzzer Vehicle’s battery voltage is higher than Jump Starter’s. TECH-5000P USER’S MANUAL PAGE 11...
- Page 12 USB POWER Connect the USB device to the TECH-5000P Power Bank with the included multi-tip cable (For Apple® products, it’s better to use the original cable that came with the devise). Press Power utton / Flashlight button to start USB power, and press Power button to quit.
- Page 13 Bank to a 12V appliance with the included 12V adapter accessory. You don’t need to press the power button as the Power Bank output is ALWAYS activated. When battery voltage of TECH-5000P Power Bank is too low, 12V appliances will stop running/charging. 12V ADAPTER...

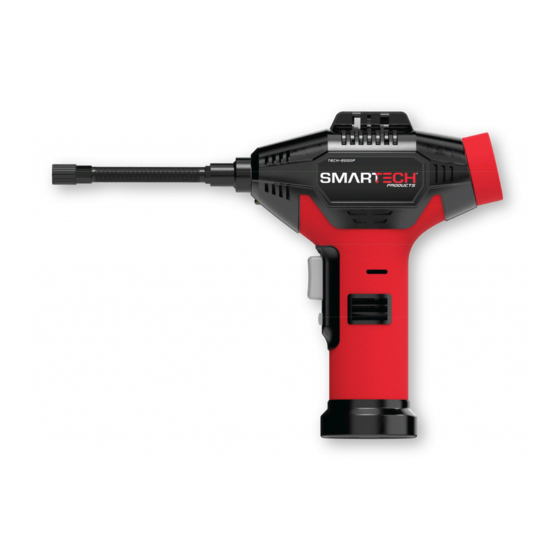

- Page 14 TECH-5000P AIR PUMP Working Voltage:12V DC Current: 3.5A Peak Current: ≤7A Maximum Gas Pressure: 150PSI Hose Length: 5.31 inches (135mm) Working Temperature: -4˚F ~ 140˚F (-20˚C~+60˚C) Dimension: 2.44 X 7.16 X 8.90 inches (62mm X 182mm X 226mm) Weight: 1.37 lbs (620g) TECH-5000P USER’S MANUAL PAGE 14...
- Page 15 IMPORTANT SAFETY INSTRUCTIONS FOR THE TECH-5000P POWER KIT (AIR PUMP) WORK AREA Keep your work area clean and well lit. Cluttered areas invite accidents. Keep bystanders, children, and visitors away while operating an air pump. Distractions can cause you to lose control.
- Page 16 Do not use air pump if switch does not turn it on or off. An air pump that cannot be controlled with the switch is dangerous and must be repaired. Store idle air pumps out of reach of children and other un- TECH-5000P USER’S MANUAL PAGE 16...
- Page 17 Never point any air pump toward yourself or others. Do not exceed the pressure rating of any component in the system. 10. Protect material lines and air lines from damage or puncture. Keep hose and power cord away from sharp objects, TECH-5000P USER’S MANUAL PAGE 17...
- Page 18 Never leave an air pump unattended with the air hose attached Do not continue to use an air pump or hose that leaks air or does not function properly. TECH-5000P USER’S MANUAL PAGE 18...
- Page 19 A guard or other part that is damaged should be properly repaired or replaced by an authorized service center. Following this rule will reduce TECH-5000P USER’S MANUAL PAGE 19...
- Page 20 Use of a product that is not properly and completely assembled or with damaged or missing parts could result in serious personal injury Protect material lines and air lines from damage or puncture. Keep hose and power cord away from sharp objects, TECH-5000P USER’S MANUAL PAGE 20...
- Page 21 WARNING: air pump is in use. These items can burst and could cause serious injury. WARNING: pressures. TECH-5000P USER’S MANUAL PAGE 21...
- Page 22 WARNING: Battery tools are always in operating condition. Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. TECH-5000P USER’S MANUAL PAGE 22...
- Page 23 POWERING THE AIR PUMP (3 OPTIONS) OPTION 1: (see Fig.1) Power the Air Pump with the TECH-5000P Power Bank and accessory cord. Using the included accessory cord, connect one end to the bottom of the Air Pump and the other end to the 12/V/10A output of the Power Bank.
- Page 24 OPTION 2: (see Fig.2) Power the Air Pump with the TECH-5000P Power Bank, car charger and 12V adapter. Using the included car charger and 12V adapter, connect the 12V adapter to the Engine Start socket on the Power Bank. Connect one end of the car charger to the 12V adapter and the other end to the bottom of the Air Pump.
- Page 25 Power the Air Pump directly from your vehicle using the included car charger. Connect one end of the car charger to the bottom of the Air Pump and the other end directly to your vehicle 12V accessory outlet. Fig.3 Vehicle 12V accessory input TECH-5000P USER’S MANUAL PAGE 25...
- Page 26 In any button. To stop the inflation, simply press the On/Off button. • When the desired pressure is reached, the air pump will stop running as it has pre-set func tion. when the desired pressure TECH-5000P USER’S MANUAL PAGE 26...
- Page 27 NOTE: Maximum PSI for this unit is 150 PSI NOTE: Always leave the hose free of obstructions when the tool is not in use. Overheating could occur if the hose is blocked. Fig.4 Fig.5 TECH-5000P USER’S MANUAL PAGE 27...
- Page 28 Wash hands after handling. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such particles. TECH-5000P USER’S MANUAL PAGE 28...
- Page 29 This warranty is void if this product is ever used while providing commercial services or if rented to another person. rights which vary from state to state. Product distributed in the United States by Smartech Inc. 8700 Larkin Rd. Suite B Savage, MD 20763 www.SmartechProduct.com...
