Introduction

Thank you for choosing our product!
If you are satisfied with the device we encourage you to share your opinion on the use of the product.
We make all the efforts to ensure our products meet high requirements of our customer. In case of any questions related with our devices, you can find help through our website: www.savio.net.pl

Before the use of the purchased device, it is recommended to read the whole user manual.

Package content

• Mini wireless keyboard
• USB receiver
• USB(M) - Micro USB(M) Cable
• Li-ion battery
• User manual

Basic information

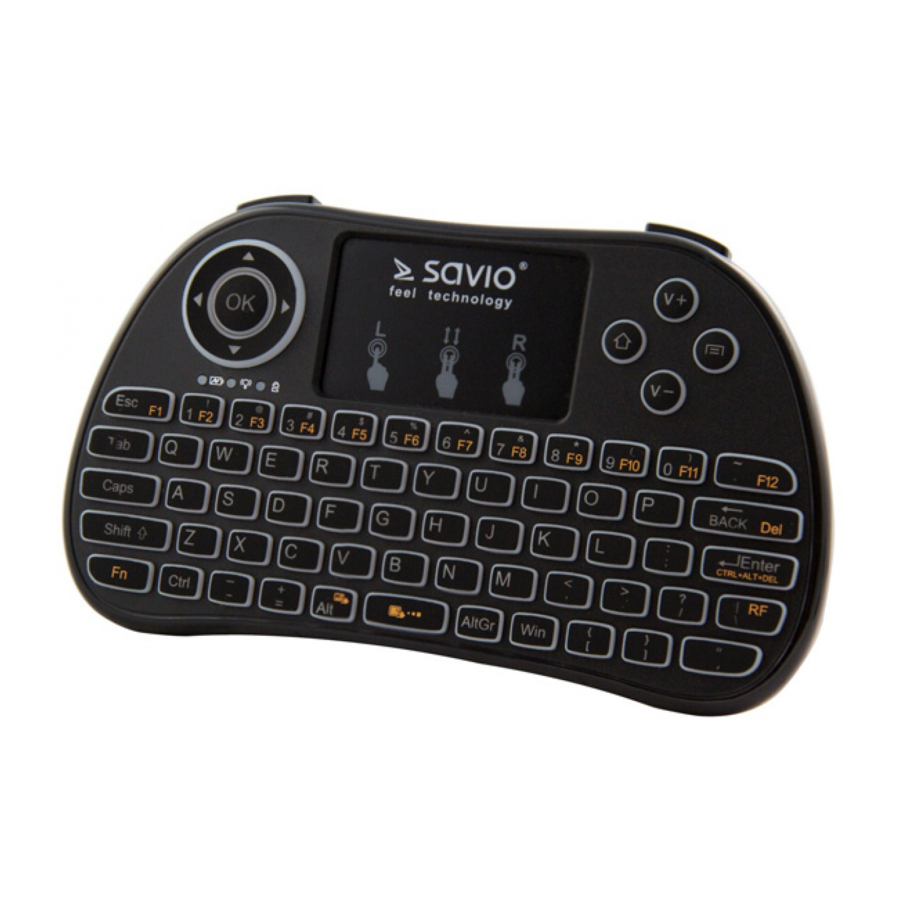

Wireless keyboard KW-03 is a compact, multifunctional device, that combines features of full-size QWERTY keyboard and a touchpad.
Thanks to a KW-03 keyboard you can browse internet websites or use installed applications in a quick and easy way.

Device compatible with

• PC computer
• Smart TV/Android TV
• TV BOX
• Xbox 360
• Smartphone(OTG)*
• Tablet(OTG)*
• Raspberry Pi
• Smartphone and a tablet need to have an OTG function(connection through USB OTG Cable)
• PlayStation 3

Indicator diodes description

• Diode - backlit while charging the battery, fully charged battery is indicated by turned off backlit
• Diode- blinking diode indicates, that the USB receiver is not connected or a keyboard is not paired.
• Diode - backlit with constant light when the keyboard is connected to adevice.
• Diode - indicates pressing of a button

Touchpad use

The integrated touchpad enables to browse internet websites and use of the installed application same way, as with a traditional computer mouse.

• A single touch of touchpad replaces the click of the left mouse button
• Double click of the touchpad replaces the right mouse click
• To use the scroll function, you need to use two fingers, one should be held still on the touchpad and the other will move up and down

Connecting the device

Put the USB receiver into the desired USB port in the device, After plugging it in you need to turn on the keyboard by moving the power switch in the lower part of the keyboard to the "ON" position. The Device pairs automatically. After finishing the use of the device, the switch needs to be in the "OFF" position.
Not turning off the device may cause the battery to discharge and wear off faster.

Auto sleep mode and wake up

Keyboard has the functions of automatic sleep mode and wake up
Keyboard automatically switches into the sleep mode within 3 minutes when idle. Pressing any button will cause the keyboard to wake up instantly.

Technical specification of the keyboard

• Range: up to 10 meters
• Battery capacity: 300mAh
• Power consumption: 8-15 mA, <15mA in sleep mode
• Transmission power: +5dBm Max
• Working Voltage: 3,7V
• Dimensions: 147*85*16mm
• Weight: 96g

Comments

• When the device is not being used for a long period of time, the battery may discharge
• When the keyboard is fully charged, it should be plugged off from power source
• Making any self-repairs and modifications cause instant loss of guarantee
• Protect against high and low temperatures, to save the battery from damage
• It is recommended to clean the keyboard with a soft cloth or cleaning agents for this type of devices. Use of the improper cleaning agents may damage the keyboard. Keep the keyboard away from water, the device is not water resistant
• In the case of connecting the keyboard to a SMART TV – the TV must support USB HID function or have an external controller support function
• Before the first use of the keyboard, it should be fully charged
• After the battery is fully charged, plug off the power cable Ÿ If the power cable is plugged when the keyboard is fully charged, it may cause damage to the battery or shorten its lifespan

Troubleshooting

Diagram of key combinations

Key combination										(KW-02, KW-03)
Function	Pairing the device	Turn on/off the touchpad	Sensor sensitivity	Main menu	Applications menu	Volume+	Volume-	Left mouse button	Right mouse button	On/Off keyboard

The backlit colour setting of the keyboard(for KW-03 model)

1. Press buttons: FN+ , to activate the keyboard backlit.
2. Press buttons FN+RGB, to get to the backlit colour setting.
3. 1Set a backlit colour by using the touchpad.
4. Confirm a backlit colour by pressing key combination FN+RGB Backlit colour is now saved, the keyboard is ready to use.

Charging the keyboard

1. Connect the power cable to micro USB in the keyboard (LED diode will backlight in red colour)
2. If the LED diode will go off, it means that the keyboard is fully charged.
3. Plug off the power cable, the keyboard is ready to use.

Information of the utilization of electrical and electronic equipment

This symbol means that in according with European Union directive 2012/12EU, electrical and electronic equipment should not be disposed of with other household waste. The equipment should be sent to a local collection point for this type of waste or to a recycling center. Please contact your local authority for information on available disposal methods. Importer disposal of waste is threatened by the penalties provided for by law in force in the given area. Proper disposal of equipment will help to avoid the negative effects that threaten the environment and human health, in the event of improper utilization.

Warranty

Sale date...............................
The warranty covers a period of 24 months. Defects discovered during this period will be removed or replaced with a new device free of charge within 14 working days from the date of delivery of the device along with proof of purchase to the company's headquarters. Warranty does not cover damage caused by improper use, mechanical damage, liquid flooding.

We are eager to help you in case of any comments. In order to do so, please contact us by e-mail at: support@savio.net.pl Opinions of our customers are very important to us, so the product was tailored to meet your expectations.
