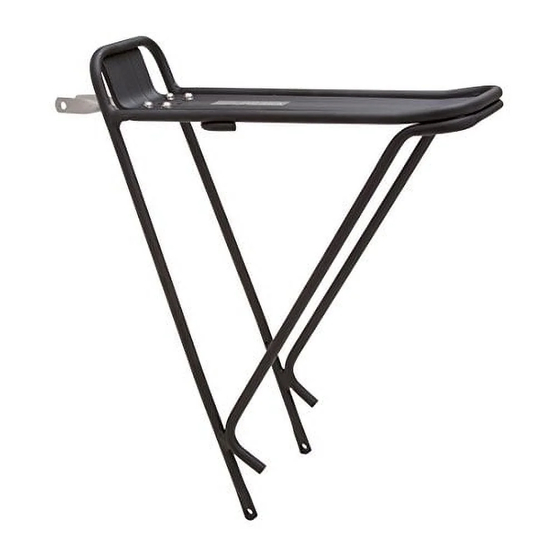

ECO RACK
INSTALLATION MANUAL
FOR MODELS: 4001 & 4002
Thanks for buying a Planet Bike Eco Rack. We designed it to help you
expand your horizons so you can carry more and go farther. If you are
unsure of any part of the installation process, please consult a qualified
bicycle mechanic or local bike shop. Failure to follow installation
instructions can result in loss of control, damage, personal injury or
death. If you have any questions regarding installation of the rear rack,
feel free to check out the FAQs at www.planetbike.com or email us at
info @ planetbike.com
We make quality products and they include a limited lifetime warranty to the
original owner of our products. This rack is warranted to be free from defects in
materials and workmanship for as long as the original purchaser owns the
product. This warranty does not cover damage due to accident, abuse, or
normal wear and tear. This warranty is void if the rack or rack mounting
hardware is modified, or is not properly installed on a bicycle for which it was
Rear Reflector / Light Mount
Upper Stays
Upper Rack Mounts
Lower Rack Mounts
designed. To make a claim under this warranty, return the rack together with
proof of purchase, to the retail dealer from which it was purchased, or contact
Planet Bike directly. Purchaser's sole remedy pursuant to this warranty is for
Planet Bike to repair or replace the faulty part(s). Planet Bike provides no other
warranty, expressed or implied. This warranty gives you specific legal rights;
you may also have other rights which vary from state to state.

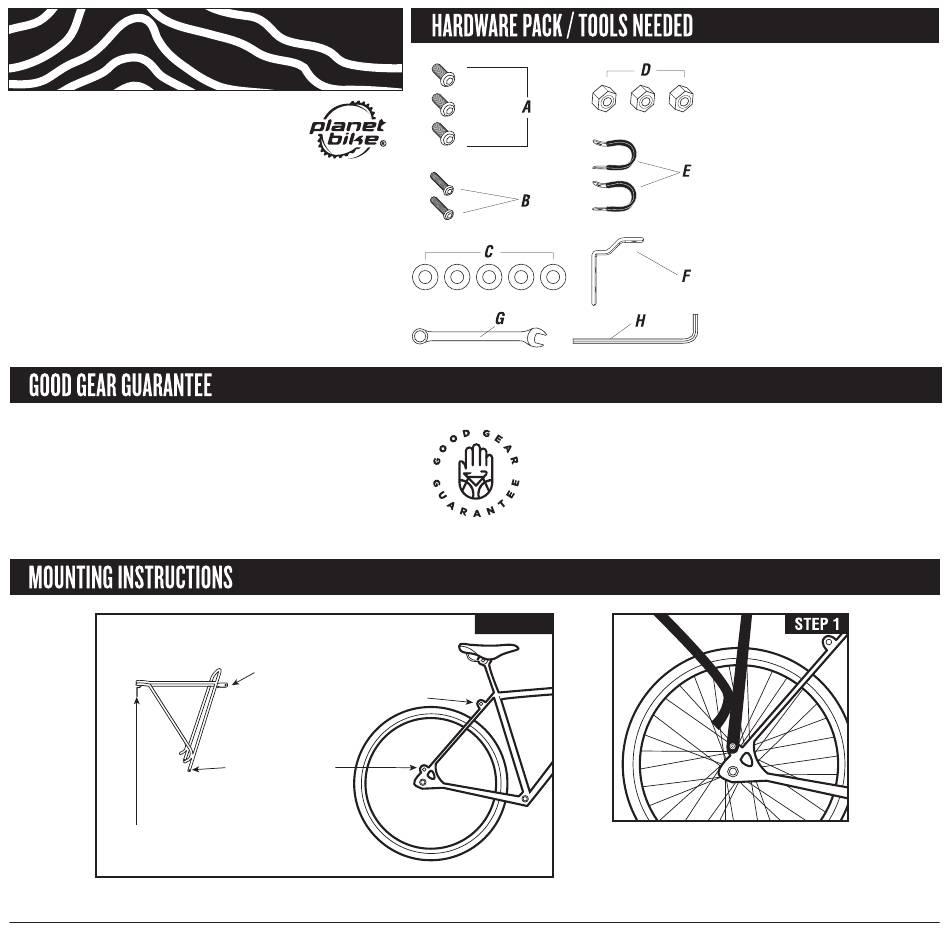

OVERVIEW
STEP 1:
Attach rack to bike frame at the lower
rack mounting points using lower mounting bolts
(A) and two washers (C). Do not fully tighten
bolts yet.
A) Lower Mounting Bolt (qty 3)
B) Upper Mounting Bolt (qty 2)
C) Washer (qty 5)
D) Nut (qty 3)
E) P-clamps (qty 2)
F) L-bracket (qty 1)
Tools You'll Need for Installation,
Not Included:
G) 8mm Box Wrench
H) 4mm Allen Wrench
