  • Page 1 WORLD PRECISION INSTRUMENTS INSTRUCTION MANUAL MMP/DMP Manual Microsyringe Pumps Serial No._____________________ www.wpiinc.com 090821...
  • Page 3: Table Of Contents

    Removing Air from the Pipette Coupling Tube ............6 Removing the Stopcock ..................... 6 Determination of Total Volume Pumped ................7 ACCESSORIES........................... 8 Syringes for MMP/DMP ......................8 Replacement Parts ........................8 SPECIFICATIONS ..........................9 DECLARATION OF CONFORMITY ....................10 WARRANTY .............................11 Claims and Returns ........................11...
  • Page 4 World Precision Instruments...
  • Page 5: About This Manual

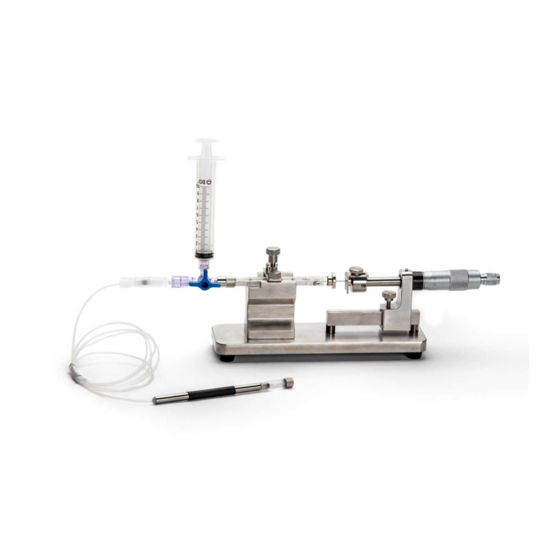

    Syringe Mount Bracket Connector with Syringe Attached Syringe Piston Mount Bracket Male Luer Micrometer Male Luer Connector Connector Syringe Mount Adjustable Micrometer Mount Teflon Tubing Pipette Pipette Holder Fig. 1—MMP Manual Microsyringe Pump is shown fully assembled. World Precision Instruments...
  • Page 6: Introduction

    Fig. 2—On the DMP the micrometer has a digital display INTRODUCTION The MMP is a convenient tool for precise manual injection of fluid using glass pipettes or similar injection devices. DMP has a digital micrometer head for increased precision and ease of use. The design allows visual feedback of flow at the pipette tip and can also be used as a manual micro syringe pump for perfusion or withdrawal of liquids.
  • Page 7: Unpacking

    Concealed damage should be reported at once to the carrier and an inspection requested. Please read the section entitled “Claims and Returns” on page 11 of this manual. Please contact WPI Customer Service if any parts are missing at 941.371.1003 or customerservice@wpiinc.com.
  • Page 8: Operating Instructions

    Fig. 4—(Right) Male, female and side luers are open (MFS position) The 10mL plastic syringe provided with the MMP/DMP is used to fill both the micro syringe and the Teflon tubing with the injection fluid of your choice. The procedure...
  • Page 9: Improving Performance

    MMP/DMP Fig. 7—Female and side Luers are open (MS position) Fig. 8—Male and female Luers are open (MF position) For each step in the filling process, make sure the Luer tips are filled with the fluid before connecting them so that bubble formation is minimized.
  • Page 10: Shortening The Teflon Tubing

    Shortening the Teflon Tubing In general, the MMP will work better if the Teflon tubing is as short as is convenient for a given application. Although the tubing is very stiff, it still may expand and contract slightly from the pressure generated by the micro syringe.
  • Page 11: Determination Of Total Volume Pumped

    Multiply this figure by the constants above to get nL per division and per turn. Example: The SGE 100µL gas tight luer lock syringe (WPI# SGE0100TLL) is 60mm from the “0µL” mark to the “100µL” mark. (100µL/60mm) • (1mm/1000µm) • (1000nL/µL) = 1.6667nL/micron (1.6667nL/µm) •...
  • Page 12: Accessories

    PicoNozzle gasket red 1.5mm, pkg. of 10 75122-410 PicoNozzle gasket clear 1.65mm, pkg. of 10 NOTE: The colors described here may be different than those supplied in the MMP KIT, and they are subject to change without notice. World Precision Instruments...
  • Page 13: Specifications

    MMP/DMP SPECIFICATIONS Travel Distance ........................25mm Advances per Revolution ..................... 0.5mm Minimum Injection Volume ............~10nL/div. for 100µL syringe Syringe Size ..............10µL to 1mL gas tight luer tip syringe ........................from SGE and Hamilton Tubing ...................1.5m of PTFE tubing with 0.5mm ID Pipette Holder Fits ................
  • Page 14: Declaration Of Conformity

    DECLARATION OF CONFORMITY World Precision Instruments...
  • Page 15: Warranty

    WPI shall not be liable for any damage to data or property that may be caused directly or indirectly by use of this product.
  • Page 16 175 Sarasota Center Blvd., Sarasota FL 34240-9258 Tel: 941-371-1003 • Fax: 941-377-5428 • E-mail: sales@wpiinc.com 1 Hunting Gate, Hitchin, Hertfordshire SG4 0TJ Tel: 44 (0)1462 424700 • Fax: 44 (0)1462 424701 • E-mail: wpiuk@wpi-europe.com Germany Pfingstweide 16, D-61169 Friedberg (Hessen), Germany Tel: +49 (0)6031 67708-0 •...
