Toa IP-300XI Instruction Manual

NETWORK MODULE
Thank you for choosing the TOA network module.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. GENERAL DESCRIPTION
IP-300XI is a network audio signal conversion module. It can transform analog audio signals to digital audio
signals or transform digital audio signals to analog audio signals for long-distance transmission via local area
networks or wide area networks, featuring low signal transmission loss, good anti-jamming capability and simple
wiring. It can be used in combination with other TOA products, including A-9000M2 series, M-9000M2 series,
A-900MK2 series, M-900MK2 series, AX-0120 series, AX-0240 series, FS-9205DA, DA-502H CE-GB, DA-502H
5TW, VX-2000 series and BG-2000 series.

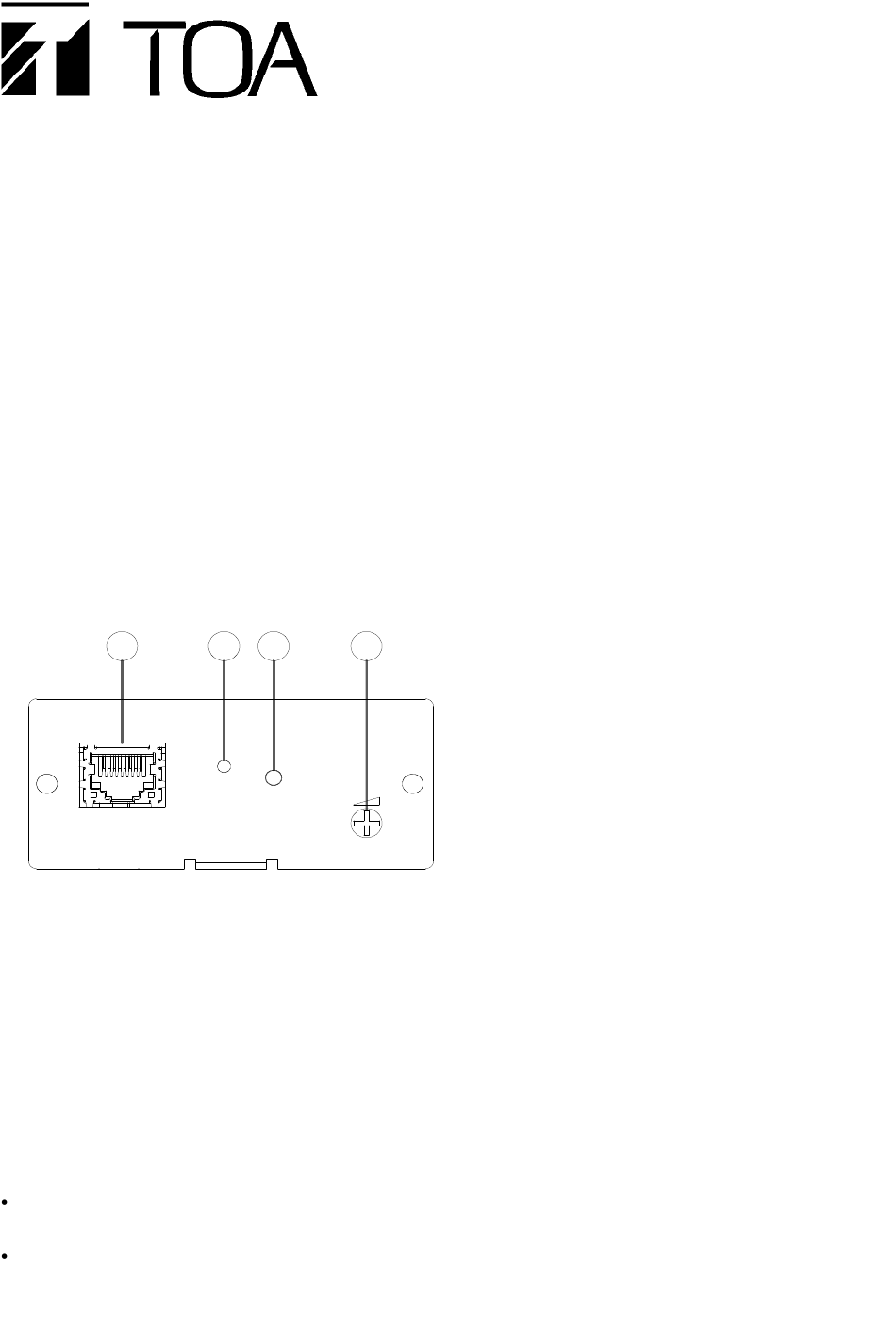

2. NOMENCLATURE AND FUNCTIONS
1
IP-300XI
LAN
Network connection port [LAN]
①
It can be connected with 100 BASE-T network cables.
Reset switch [RESET]
②
Press this button to reset the module.
③ Status indicator [STATUS]
The green indicator will flicker regularly when the module is normal.
Input volume control [VOLUME]
④
Adjusts gain of the input .
3. NOTICES
When IP-300XI is installed in a power amplifier, such installation shall be done with the power amplifier
disconnected from its power source.
The module shall be used in an environment with the temperature of 0~+40
more than 90% (no dew formation).
2 3 4
RESET
STATUS
VOLUME
INSTRUCTION MANUAL
℃
IP-300XI
and relative humidity of no
