User Manual
Release 1.0

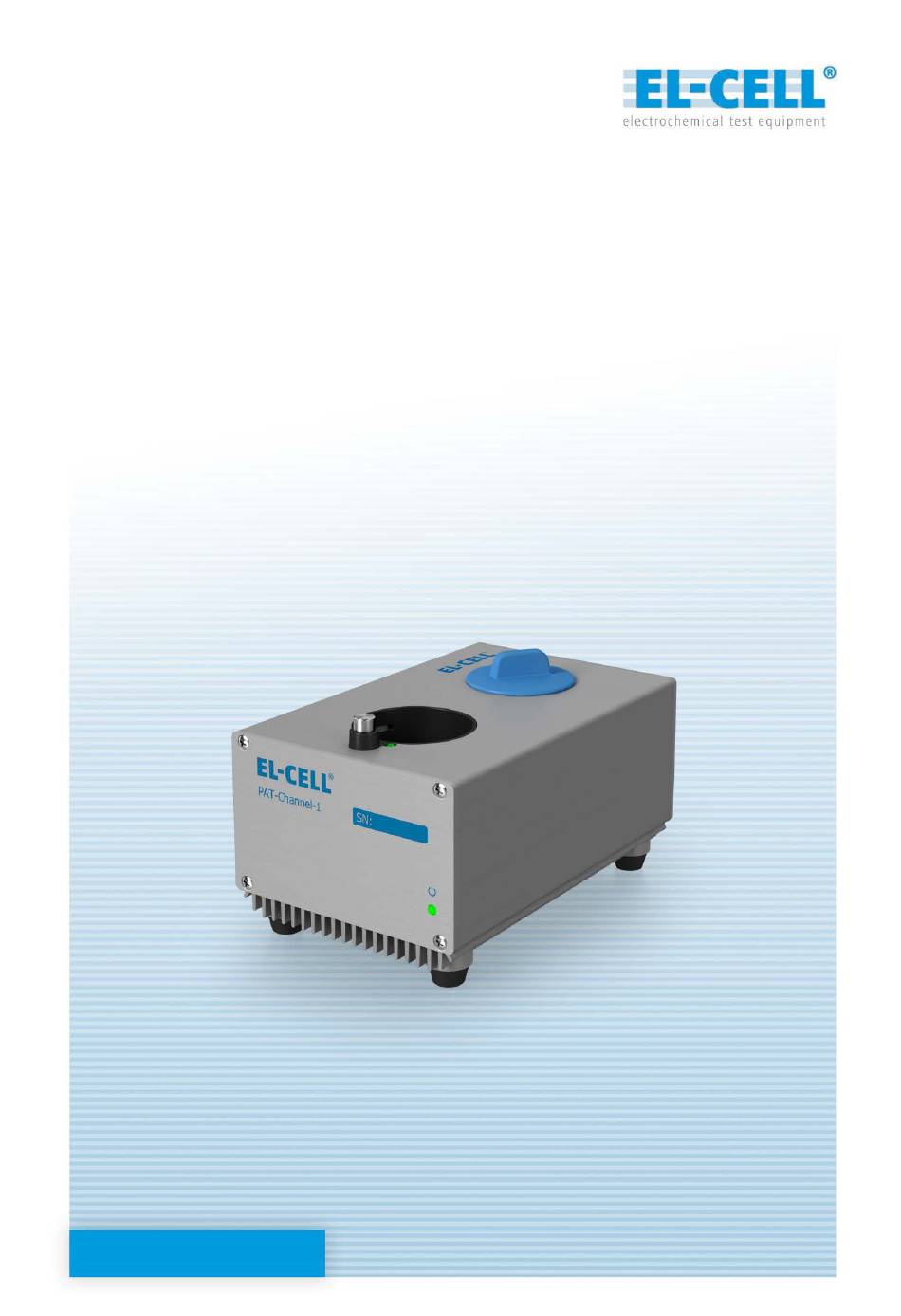

PAT-Channel-1
Single channel station for one test cell
© 2020 EL-CELL GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAT-Channel-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EL-CELL PAT-Channel-1

  • Page 1 User Manual Release 1.0 PAT-Channel-1 Single channel station for one test cell © 2020 EL-CELL GmbH...
  • Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-Cell GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -Cell GmbH does not assume any liability arising from the use or application of this product.
  • Page 3: Table Of Contents

    User Manual PAT-Channel-1 Content 1 Product description ............................4 2 Features ................................5 3 Technical data ..............................5 4 Specifications ..............................6 5 Connections and display ..........................9 6 Safety precautions............................10 7 Installation ..............................11 8 Cleaning ................................. 12 9 Unpacking..............................
  • Page 4: Product Description

    PAT-Channel-1 1 Product description The PAT-Channel-1 is a fully featured, single channel potentiostat / galvanostat/ impedance analyzer which is operated in conjunction with a PAT -Controller. It has a docking socket for one PAT series test cell and external connectors to connect a test cell of a different type or a separate docking station.
  • Page 5: Features

    User Manual PAT-Channel-1 2 Features Fully equipped with PStat/GStat/EIS  Voltage: +/-7 V control  Current: +/- 100 mA  PAT docking station  D-Sub port for active shielded cell cable, I2C bus signals and analog input  USB 2.0 port for additional sensor data ...
  • Page 6: Specifications

    User Manual PAT-Channel-1 4 Specifications 4.1 Accuracy Contour Plot 4.2 General # Channels per device Voltage -7 V to +7 V Current ±100 mA Cell connection / Electrode connection 3 electrodes plus sense wires, connection matrix 2 x 24 Bit...
  • Page 7 User Manual PAT-Channel-1 4.3 Voltage Acquisition of ... Full cell voltage Both half cell voltages Auxiliary voltage Measurement Accuracy ±0.02% of FSR Control Resolution 57 μV (18 Bit) 4.4 Current Current Ranges ±100 mA ±10 mA ±1 mA ±100 μA...
  • Page 8 User Manual PAT-Channel-1 4.5 Impedance (each channel) Frequency range 100 μHz to 100 kHz Impedance mode PEIS and GEIS (simultaneous measurement of full- and half-cell impedances Impedance range 1 mΩ to 100 MΩ 4.6 Other Additional Measurement (each channel) Digital (I²C) sensor signal, e.g. for cell temperature Analog sensor signal, e.g.
  • Page 9: Connections And Display

    User Manual PAT-Channel-1 5 Connections and display Front: Back: Power indicator USB 2.0 Hi-Speed, type C connection to PAT-Controller Top: D-Sub port PAT Socket USB 2.0 port for additional sensor data Page 9 of 16 Release 1.0...
  • Page 10: Safety Precautions

    User Manual PAT-Channel-1 6 Safety precautions WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Do not operate the device with any cover removed. Do not use the device in a wet environment. Protect equipment from liquid intrusion.
  • Page 11: Installation

    PAT-Channel-1 7 Installation Note: To operate the PAT-Channel-1 you need a PAT-Controller connected to an Ethernet Local Area Network (LAN). EL-Software Server (the server application of EL software) must be installed on the LAN server and EL-Software Client (the client component of EL software) on at least one client PC.
  • Page 12: Cleaning

    User Manual PAT-Channel-1 8 Cleaning Wipe the PAT-Channel-1 with a moist tissue. Do not use aggressive chemicals for cleaning. Protect the device from dust and moisture. 9 Unpacking Check the contents of the packages against the list given below to verify that you have received all of the required components.
  • Page 13: Ec Declaration Of Conformity

    User Manual PAT-Channel-1 10 EC declaration of conformity Page 13 of 16 Release 1.0...
  • Page 14 User Manual PAT-Channel-1 The products described are in conformity with the following harmonized standards: EN 61010-1:2010 Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte – Teil 1: Allgemeine Anforderungen (DIN EN 61010-1, VDE 0411-1:2011-07) Safety requirements for electrical equipment for...
  • Page 15 User Manual PAT-Channel-1 EN 61326-2-3:2013-07 Elektrische Mess-, Steuer-, Regel- und Laborgeräte - EMV- Anforderungen - Teil 2-3: Besondere Anforderungen - Prüfanordnung, Betriebsbedingungen und Leistungsmerkmale für Messgrößenumformer mit integrierter oder abgesetzter Signalaufbereitung (DIN EN 61326-2-3:2013-07, VDE 0843-20-2-3:2013-07) Electrical equipment for measurement, control and laboratory...
  • Page 16: Technical Support

    12 Warranty For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
