PAT-Channel-1 Disclaimer EL-Cell GmbH makes no assurances or warranties with respect to this manual and, to the extent permitted by law, limits its liability for violation of any implied warranty to the substitution of this manual for another. In addition, EL -Cell GmbH reserves the right to revise this publication at any time without notice to anyone.
Page 3
User Manual PAT-Channel-1 Manufacturer and customer service EL-Cell GmbH Tempowerkring 8 21079 Hamburg – Germany Telephone: +49 40 79012-734 Telefax: +49 40 79012-736 Email: info@el-cell.com Website: el-cell.com Technical support Telephone: +49 40 79012-734 Email: support@el-cell.com Website: el-cell.com/support/technical-support/ Please always quote the serial number on the nameplate when contacting customer service.
Only an authorized properly qualified, and experienced person 18 years of age or older may use the PAT-Channel-1, who: has read and understood these installation and operating instructions •...
User Manual PAT-Channel-1 1.3 Obtaining Documents and Information A current version of the documentation is available on the following website : https://el-cell.com/support/manuals/ Alternatively, you can scan this QR code, to access the website: Page 6 of 21 Release 1.2...

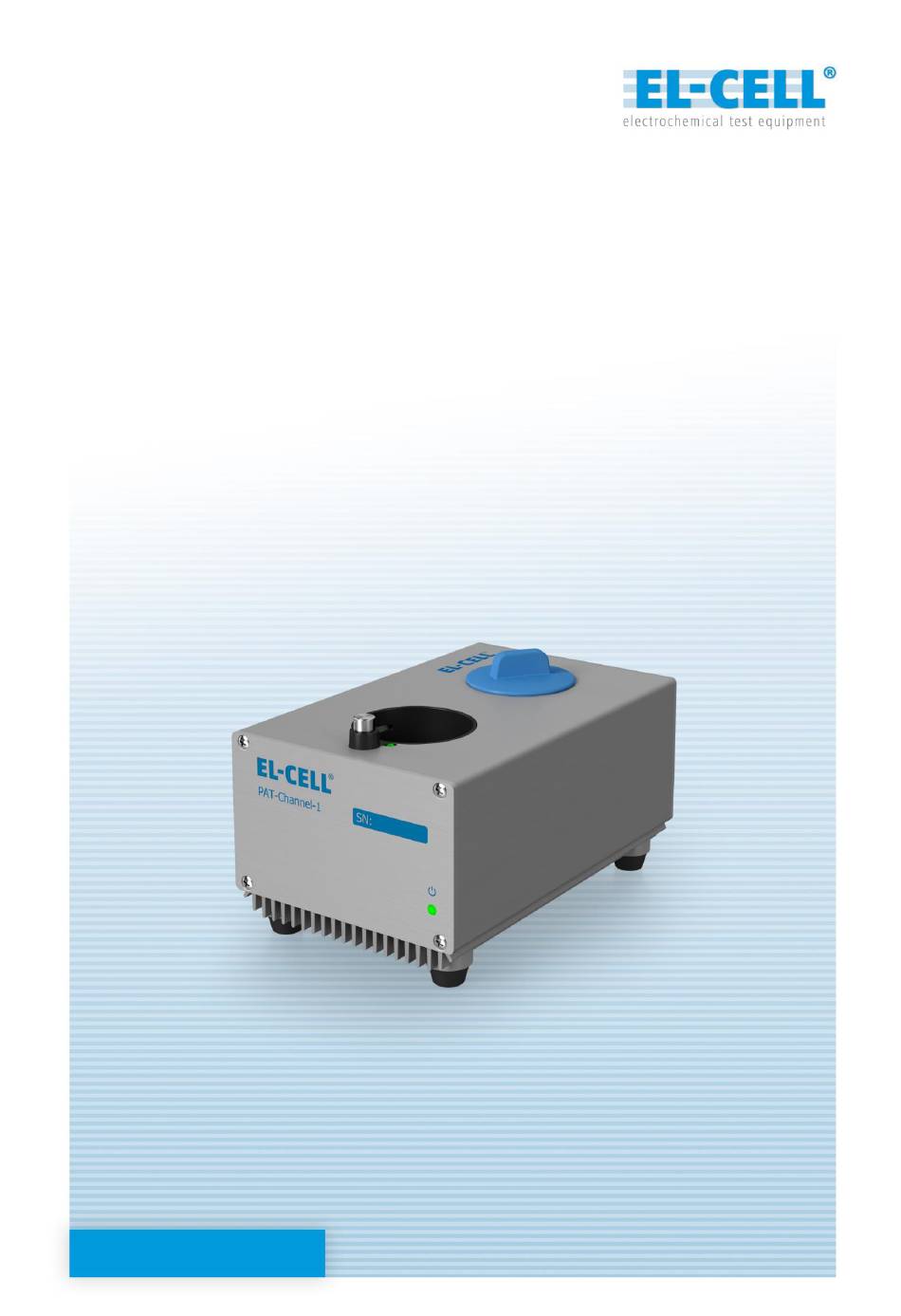

PAT-Channel-1 2 Product Description The PAT-Channel-1 is a fully featured, single-channel potentiostat/galvanostat/ impedance analyzer operated in conjunction with a PAT-Controller. It has a docking socket for one PAT series test cell and external connectors to connect a test cell of a different type or a separate docking station.
User Manual PAT-Channel-1 3 Features Fully equipped with PStat/GStat/EIS ▪ PAT docking station ▪ D-Sub port for active shielded cell cable, I C bus signals and analog input ▪ USB 2.0 port for additional sensor data ▪ 4 Technical Data Height: 97 mm ▪...
User Manual PAT-Channel-1 5 Specifications 5.1 Accuracy Contour Plot 5.2 Test Channel Specifications General -7 to +7 V Control voltage -8 V to +8 V (no load) Compliance voltage ±100 mA Current 3 electrodes, sense connections, connection Cell electrode connection...
Page 10
User Manual PAT-Channel-1 Voltage Full cell voltage Acquisition voltages Both half-cell voltages Auxiliary voltage ±0.02% FSR (Full Scale Range) Measurement accuracy 30 μV peak-peak typical Measurement noise floor 57 μV (18 Bit) Control resolution EIS amplitude: 3 μV (additional 16 Bit DAC for EIS) Current ±100 mA...
Page 11
User Manual PAT-Channel-1 Other Additional measurement (each channel) Multiple digital I²C bus sensors, e.g., for cell temperature and gas pressure, 1x analog voltage input, e.g., for dilatometer signal Calibration Fully automatic self-test and self-calibration with internal voltage references and internal...
User Manual PAT-Channel-1 6 Construction and Connections Front: Back: LED Front Panel (MB PWR) USB 2.0 Hi-Speed, type C connection to PAT-Controller Top: PAT-Socket Push button LED Channel D-Sub connector USB 2.0 port (used for power supply and data transfer of external devices) Page 12 of 21 Release 1.2...
User Manual PAT-Channel-1 6.1 LED Signals Overview Signal Meaning Front panel Red, lighting interval 3 sec Initializing mainboard Front panel Red, permanent Mainboard error Front panel Green, permanent Mainboard operational Front panel Blue*, permanent PAT-Controller is waiting for the assignment of an IP...
User Manual PAT-Channel-1 7 Safety Precautions WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Do not operate the device with any cover removed. Do not use the device in a wet environment. Protect equipment from liquid intrusion.
PAT-Channel-1 8 Installation Note: To operate the PAT-Channel-1 you need a PAT-Controller connected to an Ethernet Local Area Network (LAN). EL-Software Server (the server application of EL-Software) must be installed on the LAN server, and EL-Software Client (the client component of EL software) must be on at least one client PC.
User Manual PAT-Channel-1 9 Cleaning Wipe the PAT-Channel-1 with a moist tissue. Do not use aggressive chemicals for cleaning. Protect the device from dust and moisture. Unpacking Check the packages' contents against the list below to verify that you have received all of the required components.
User Manual PAT-Channel-1 11 EC Declaration of Conformity Page 18 of 21 Release 1.2...
Page 19
User Manual PAT-Channel-1 The products described conform with the following harmonized standards: EN 61010-1:2010 Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte – Teil 1: Allgemeine Anforderungen (DIN EN 61010-1, VDE 0411-1:2011-07) Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements (IEC 61010-1:2010 + Cor.
Page 20
User Manual PAT-Channel-1 EN 61326-2-3:2013-07 Elektrische Mess-, Steuer-, Regel- und Laborgeräte - EMV- Anforderungen - Teil 2-3: Besondere Anforderungen - Prüfanordnung, Betriebsbedingungen und Leistungsmerkmale für Messgrößenumformer mit integrierter oder abgesetzter Signalaufbereitung (DIN EN 61326-2-3:2013-07, VDE 0843-20-2-3:2013-07) Electrical equipment for measurement, control and laboratory...
User Manual PAT-Channel-1 12 Warranty For a period of one year from the date of shipment, EL -Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
