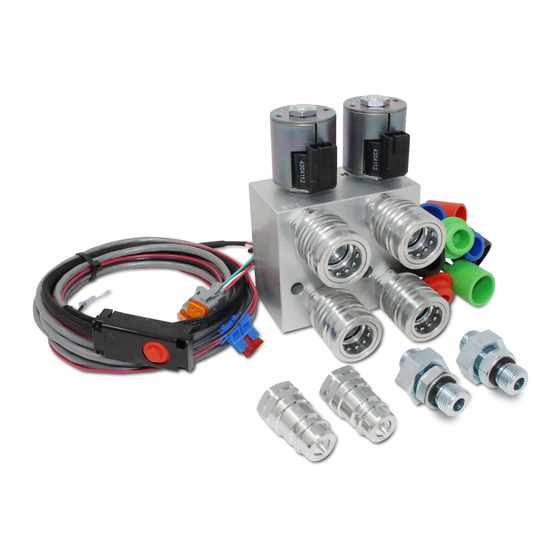

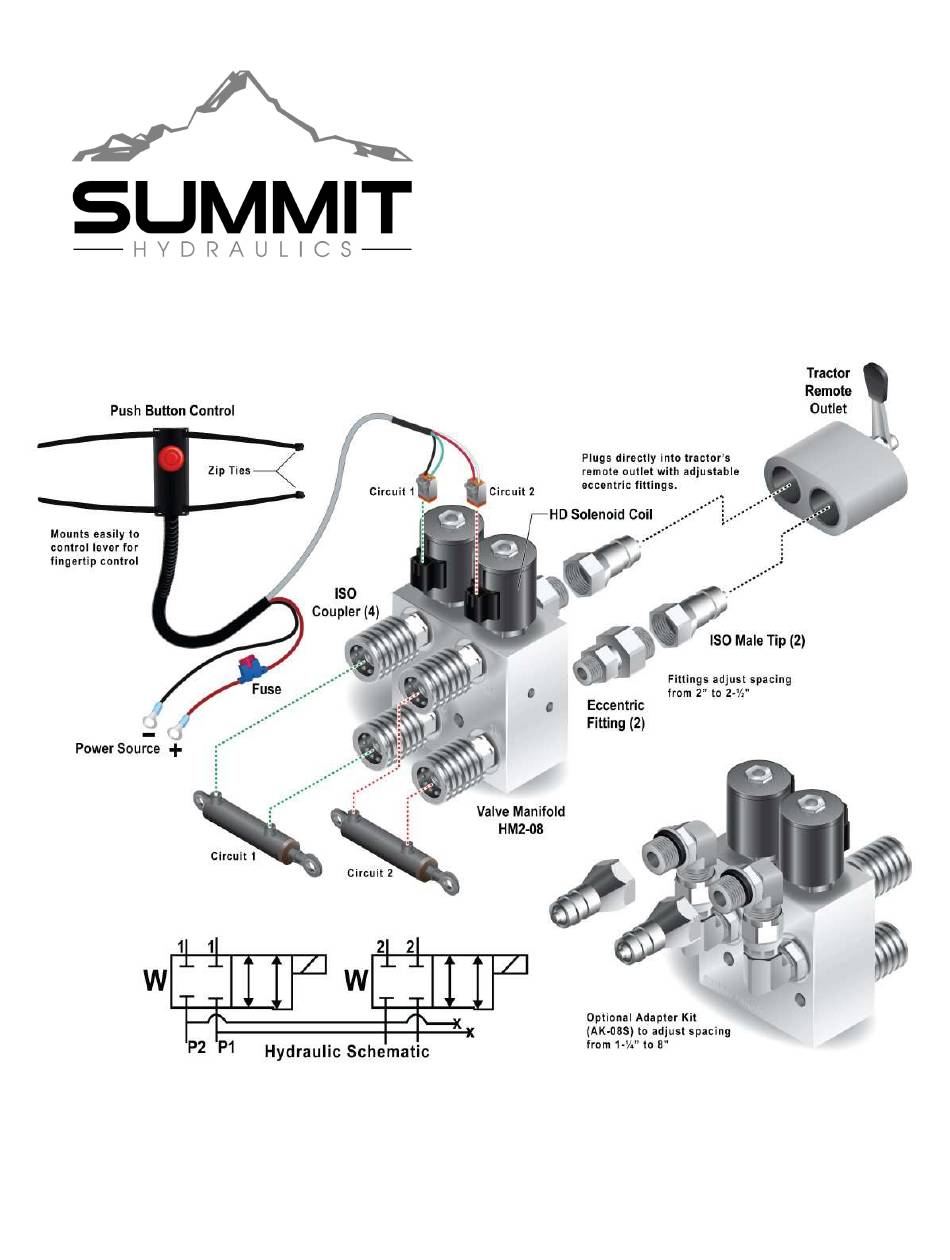

- Page 1 Hydraulic Multiplier Installation Guide Model: HM2-08-CC Summit-Hydraulics.com...
- Page 2 1. Adjust male tips and insert into the remote outlet 2. Push valve firmly into place using the SCV release lever where necessary. 3. Tighten jam nuts to 35 ft-lbs once valve is seated in SCV Install directly to Tractor’s SCV or Remote outlet Summit-Hydraulics.com...
- Page 3 (SV1) is de-energized and the secondary circuit (SV2) is energized. The second circuit will stay energized as long as the button is pressed. Hydraulic fluid is directed through the energized circuit via the SCV lever. Summit-Hydraulics.com...
- Page 4 If the problem changes to the opposite circuit, the cartridge may be some contamination. Visually inspect the cartridge, if no contamination is found the cartridge could be bad and need to be replaced. Summit-Hydraulics.com...
