10 Amp Battery Charger
A typical 10 amp charger is shown in Figure 1.12.
This is a dual rate charger with a higher output than
the two amp for more demanding applications. This
charger features both a DC ammeter and a voltmeter
on the front panel.

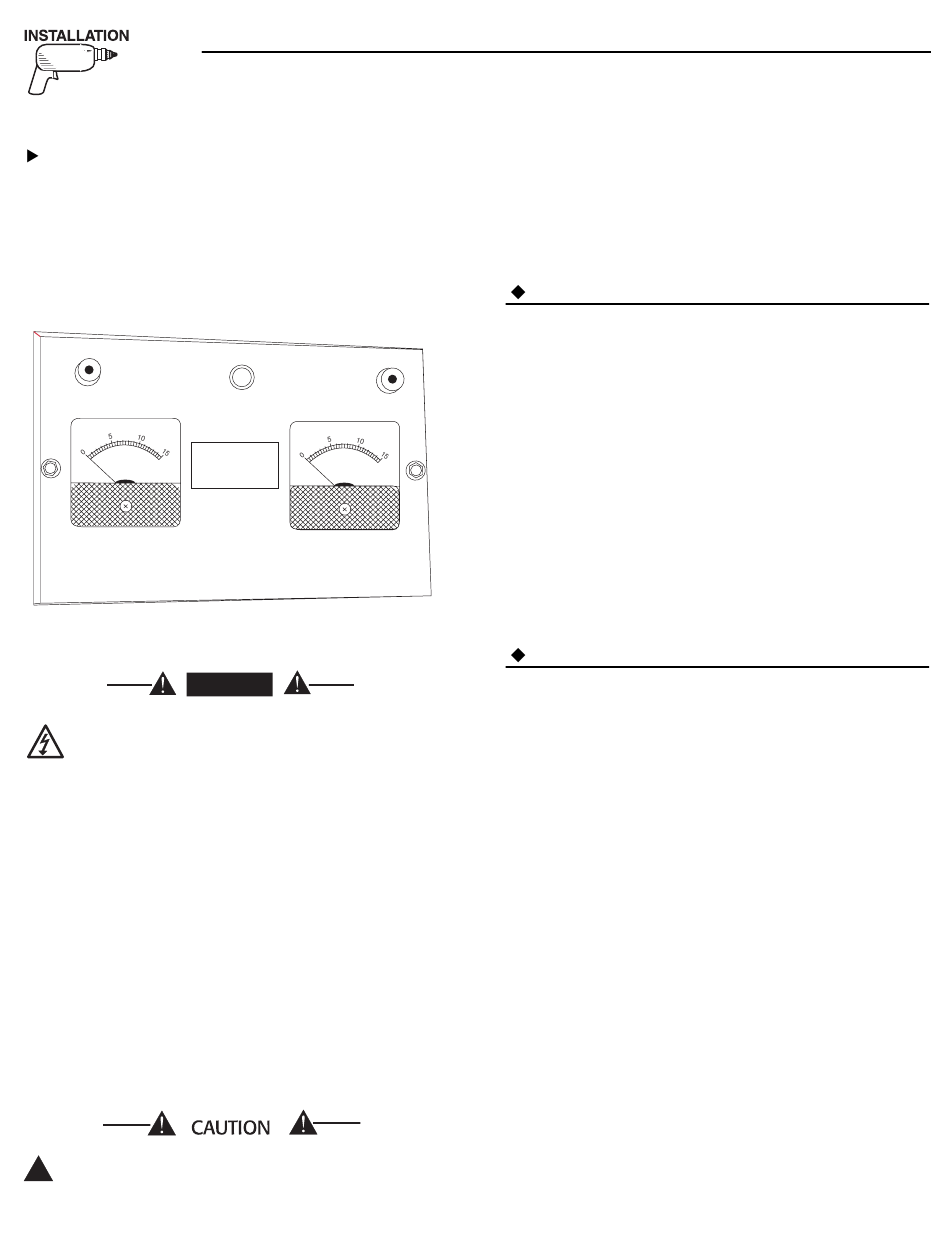

Figure 1.12 – Typical 10 Amp Battery Charger
INPUT
AGC
4 Amp
120-VOLTS AC INSIDE AT
V
ALL TIMES.
DISCONNECT AT CUSTOMER
MODEL BP-65
CLASS
2.5
SOURCE BEFORE REMOVING
COVER TO SERVICE.
BATTERY CHARGER
AUTOMATIC FLOAT EQUALIZE
INPUT: 120 VAC 50/60 Hz
STANDBY GENERATOR INSTALLATION
DANGER
Connecting this generator to an electrical sys-
tem normally supplied by an electric utility
shall be by means of a transfer switch (such
as the Generac "GTS" type transfer switch), so
as to isolate the electric system from the utili-
ty distribution system when the generator is
operating. Failure to isolate the electric sys-
tem by these means will result in damage to
the generator and may also result in injury or
death to utility workers due to backfeed of
electrical energy.
Only qualified, competent installation contractors or
electricians thoroughly familiar with applicable
codes, standards and regulations should install this
standby electric power system. The installation must
comply strictly with all codes, standards and regula-
tions pertaining to the installation.
This genset must be installed on a level surface. The
base frame must be level within two inches all
around.
After the system has been installed, do nothing
!
that might render the installation in noncompli-
ance with such codes, standards and regula-
tions.
12 Generac
®
Power Systems, Inc.
Section 2 – Installation
Generac Standby Generator Sets
POWER
OUTPUT
AGC
12 Amp
CAUTION
A
MODEL BP-65
CLASS
2.5
12 VOLT DC
D3490
For more information about the installation of a
standby system, order the Engine-Generator
Standby Electric Power Systems Installer's Guide
and Reference Manual (part #046622) from a
Generac Authorized Service Dealer.
NFPA STANDARDS
The following published standards booklets pertain-
ing to standby electric systems are available form the
National
Fire
Protection
Batterymarch Park, Quincy, MA 02269:
• NFPA
No.
37,
STATIONARY
ENGINES AND GAS TURBINES.
• NFPA No. 76A, ESSENTIAL ELECTRICAL SYS-
TEMS FOR HEALTH CARE FACILITIES.
• NFPA No. 220, STANDARD TYPES OF BUILDING
CONSTRUCTION
• NFPA No. 68, GUIDE FOR EXPLOSION VENTING
• NFPA No. 70, NATIONAL ELECTRICAL CODE.
• NFPA No. 30, FLAMMABLE AND COMBUSTIBLE
LIQUIDS CODE.
• NFPA No. 10, INSTALLATION, MAINTENANCE
AND USE OF PORTABLE FIRE EXTINGUISHERS.
OTHER PUBLISHED STANDARDS
In addition to NFPA standards, the following infor-
mation pertaining to the installation and use of
standby electric systems is available:
• Article X, NATIONAL BUILDING CODE, available
from the American Insurance Association, 85 John
Street, New York, N.Y. 10038.
• AGRICULTURAL WIRING HANDBOOK, obtainable
from the Food and Energy Council, 909 University
Avenue, Columbia, MO, 65201.
• ASAE EP-364.2, INSTALLATION AND MAINTE-
NANCE OF FARM STANDBY ELECTRIC POWER,
available from the American Society of Agricultural
Engineers, 2950 Niles Road, St. Joseph, MI
49085.
• A52.1, AMERICAN NATIONAL STANDARD FOR
CHIMNEYS, FIREPLACES AND VENTING SYS-
TEMS, available from the American National
Standard Institute, 1430 Broadway, New York, N.Y.
10018.
BASIC STANDBY ELECTRIC SYSTEM
Figure 2.1 shows a schematic diagram of a basic
standby electric system. Both the UTILITY power
supply and the STANDBY (generator) output are con-
nected to an approved transfer switch. The transfer
switch is required by electrical code and serves the
following functions:
NOTE:
Association
(NFPA),
COMBUSTION
