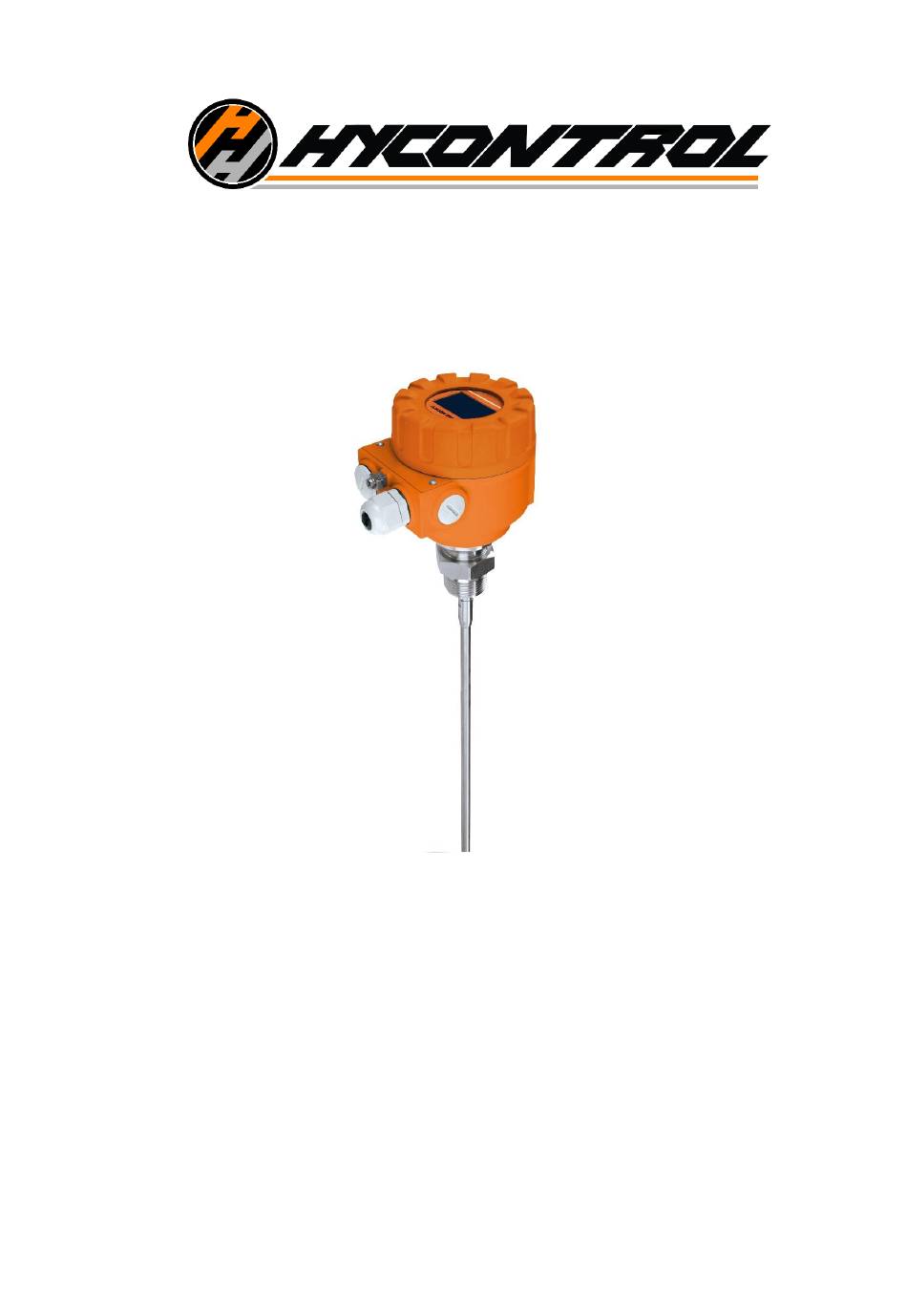

Issue 3

AH0123

VF05

VF05 2-WIRE GUIDED (TDR)

LEVEL TRANSMITTERS

USER AND PROGRAMMING MANUAL

(INCLUDES ATEX OPTION)

Hycontrol Ltd, Larchwood House, Orchard Street,

Redditch, Worcestershire, UK. B98 7DP

Tel: +44 (0)1527 406800 Fax: +44 (0) 1527 406810

Email: sales@hycontrol.com Web: www.hycontrol.com

Company registered in England No: 1755684

1 / 41

Table of Contents

Need help?

Do you have a question about the VF05 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hycontrol VF05

Page 1 VF05 2-WIRE GUIDED (TDR) LEVEL TRANSMITTERS USER AND PROGRAMMING MANUAL (INCLUDES ATEX OPTION) Hycontrol Ltd, Larchwood House, Orchard Street, Redditch, Worcestershire, UK. B98 7DP Tel: +44 (0)1527 406800 Fax: +44 (0) 1527 406810 Email: sales@hycontrol.com Web: www.hycontrol.com Company registered in England No: 1755684...
Page 2 LEVEL MEASUREMENT TECHNICAL CONCEPTS 2 / 41...
Page 3: Table Of Contents
Programming Examples using HyView ........................32 5.2. VGF-DISPLAY U ........................33 ROGRAMMING WITH THE 5.2.1. VGF-DISPLAY Unit ..............................33 5.2.2. The Behaviour of the VF05 while Programmed Manually ..................33 5.2.3. Manual Programming ............................. 33 5.3. VF05 T ................... 35 ROPERTIES OF ICROWAVE...
Page 4: Introduction
1. INTRODUCTION Application The VF05 two-wire guided microwave level transmitter measures the distance to the surface of liquids, solids and granules, from which the device calculates and transmits the level, volume, or weight values as required. The device can be used in storage and reaction tanks, rigid pipelines of suitable diameter and level reference vessels. The device can also be used with HART®...
Page 5: Vf05 - With Rod Probe
2.2. VF05 - WITH ROD PROBE VF05 2-wire guided microwave level transmitter Version / Code Probe / Process connection Code Housing Code Output Code Probe Probe Probe Temperature length Code length Code length Code 1" BSPP (G1) (x 10m) (x 1m) (x 0.1m)
Page 6: Technical Data
3.1. G ENERAL With aluminium housing With stainless steel housing VF05–7–4, 5, 6, 8 VF05–9–4, 5, 6, 8 Measured values Distance between the reference point and the plane of the reflection (surface of the material); derived values: level, volume or weight...
Page 7: Coated Probe Properties
3.3. C OATED PROBE PROPERTIES VF05F–– Type VF05X–– VF05Y–– VF05M–– VF05Q–– VF05O–– VF05I-- VF05G–– ∅4 mm (0.15") Fully PP-coated Version ∅4 mm (0.15") FEP-coated cable fully FEP / PFA- Fully PFA-coated rod coated cable Maximum 30 m (100 ft) 3 m (10 ft)
Page 8: Dimensions
3.4. D IMENSIONS L = Probe (Insertion) length as specified in tables 2.1 – 2.3. VF05TK–– VF05TL–– VF05TR–– VF05TS–– VF05TN–– VF05TT–– VF05TV–– VF05TP–– VF05TZ–– VF05TJ–– VF05TU–– VF05TW–– VF05TA–– VF05TD–– VF05TB–– VF05TF–– VF05TX–– VF05TY–– VF05TE–– VF05TC–– VF05TG–– VF05TH–– Sanitary VF05TM–– VF05TQ–– VF05TI––...
Page 9: Atex Information (For Products Codes Ending With E X )
User repairs are not permitted; in case of faults return the unit to Hycontrol. See section 3.7 Maintenance and Repair for further information. The level transmitter must be operated in an intrinsically safe circuit only.
Page 10: Temperature Limit Data For Atex (Ex Ia) Approved Models
3.5.4. Temperature limit data for ATEX (Ex ia) approved models 3.5.4.1 For standard temperature transmitters Hazardous gas atmospheres Explosive dust atmospheres VF05T/B–7–8 Ex VF05T/B–7–6 Ex Temperature data VF05T/B–9–8 Ex VF05T/B–9–6 Ex Ex ia IIC, Ex ia IIB Ex ia IIIC Maximum process temperature +80 °C (+176 °F) +90 °C (+194 °F)
Page 11: Conditions For Safe Use (Includes Atex)
User repairs are not permitted; in case of faults return the unit to Hycontrol. VF05 does not require maintenance on a regular basis. In some very rare instances, however, the probe may need cleaning to remove deposited material. This must be carried out gently, without damaging the probe.
Page 12: Installing
1½ " BSPP (G1½) or 1½" NPT threaded hole. h ≤ Ød, where = nozzle height Ød = nozzle diameter The nozzle must not extend into the tank, Consult HYCONTROL if the above condition cannot as the protruding part interferes with the be met. measurement. 12 / 41...
Page 13 Mounting two devices Effects of material influx Using a protective tube Do not place the nozzle near the material inlet pipe If two devices have to be mounted The floating lid is a common solution for petrochemicals. In connector. on one tank, they must be spaced at such cases, the use of a damping tube is recommended.
Page 14: Installing The Device For Measuring Solids
4.2.2. Installing the Device for Measuring Solids False readings Coning and strong tensile force on the probe The probe must not touch the side of the nozzle. Strong tensile force. The rope must not be anchored when measuring solids. The device is mounted at a distance of half the radius of the tank from the top of the tank with a minimum lift nozzle height.
Page 15: Wiring
4.3. W IRING Wiring in non-explosive environments 1. Take the device’s lid off. 2. Put the cable through the cable gland to the terminal block. 3. Remove the outer insulation for ~80 mm (~3.15″) from the cable so the wires can be accessed, then strip the wires for 4 mm.
Page 16: Connection In Explosive Environment
® ® The HyView program supports the use of both modes. According to the HART communication standard it can be used as a point-to-point connection between a VF05 as a “slave” and a HART “master”. ® ® There are two modes of communication: •...
Page 17: Programming
5. PROGRAMMING There are two ways to program the VF05. − Programming with the HyView software − Programming with the VGF-DISPLAY unit 5.1. P ROGRAMMING WITH 5.1.1. Installing and Running HyView The “HyView HART Configuration Software” (hereafter HyView) does not require installation, however prior to running the application, we recommend installing the FTDI Driver (Virtual COM-PORT), available to download from the website of FTDI (http://www.ftdichip.com/Drivers/VCP.htm).
Page 18 5.1.1.3 Detecting a device Click the Detect button to start the device selection on the selected communication port. The above Scanning network window appears when the detection starts A device has been detected. 18 / 41...
Page 19 To select the detected devices tick the checkbox and click Detect settings button. Parameter reading is in progress. Device has been detected and settings are being read. 19 / 41...
Page 20 Settings have been read. 20 / 41...
Page 21: Programming And Configuring The Device
HyView setting: “Device Settings” > “Device identification” > “Tag” VGF-DISPLAY: no adjustment available The following information will be read from the device and cannot be changed: - Descriptor: VF05 Message: 2-wire TDR Level Transmitter Long Tag: Hycontrol VF05 L.T. 21 / 41...
Page 22 5.1.2.2 Application setup Adjustable value range Name (number), function Description Default value Selectable values: The basic characteristic of the measured medium is set here. The measuring capabilities of the device Operating mode (P00a), − vary significantly depending on this characteristic of the medium (see specification). Liquid Measured medium property HyView setting: “Device Settings”...
Page 23 5.1.2.3 Measurement configuration Adjustable value range Name (number), function Description Default value Selectable values The device measures distance. The other quantities are calculated based on the specified tank Output function (P01ab), Metric (EU): parameters and material characteristics. Application mode − Distance HyView setting: “Device Settings”...
Page 24 Adjustable value range Name (number), function Description Default value Selectable values: The unit of temperature measurement is selected here. Unit system (P00d), − HyView setting: “Device Settings” > “Measurement configuration” > “Temperature” °C Temperature unit VGF-DISPLAY: − °F MAIN MENU / BASIC SETUP / UNITS / ENGINEERING UNITS / °C TEMPERATURE UNITS Probe length (P03)
Page 25 5.1.2.4 Output configuration Adjustable value range Name (number), function Description Default value Selects the current loop output mode when transmitting current. In “Auto” mode, the output current Current loop output (P12b), Selectable values: changes proportionally to the PV (4… 20 mA). In the case of “Manual,” the constant current set in the Set mode −...
Page 26 Relay configuration (only available on certain models – output code ‘H’, see pages 4 & 5) Adjustable value range Name (number), function Description Default value The operating mode of the RELAY with optional level switching functions can be set with this parameter. RELAY mode (P13a), Selectable values: The function is Off by default.
Page 27 5.1.2.5 Tank / Silo configuration Adjustable value range Name (number), function Description Default value Selecting a typical basic container shape for volume measurement. The tank dimensions can be set Tank type (P40a), Selectable values: using parameters P41… P45 (see figures below). If OCT (Output Conversion Table) is set, the tank Tank shapes for volume −...
Page 28 Adjustable value range Name (number), function Description Default value Gross tank volume (P47) 0…999 999 If the output (PV source) is set to “Ullage volume” transmission, the total volume can be specified in this parameter to calculate the actual transmitted value. In this case, the transmitted data is the difference between the total volume and the actual volume of the medium.
Page 29 Adjustable value range Name (number), function Description Default value The "Damping time" is used to reduce undesired fluctuations (e.g.: rippling) in the display of the Damping time (P20) 0…999 sec. measured data. If the level changes abruptly, the new value will be set to within 1% accuracy Time constant (exponential setting).
Page 30 5.1.2.7 Setting Up and Filling the OC (Output Conversion) Table This feature is required to create a level / volume conversion table of up to twenty points. Each new value entered must be greater than the previous one. The length and volume units can be changed later without changing the data in the table (length unit, volume unit). The Source column contains the measurement values and the Output column contains the required calibrated or calculated values.
Page 31 Figure 1 Attention! The “Cursor On” function does not give an exact value, it only recalculates the value of the given point based on the graphical representation. 31 / 41...
Page 32: Programming Examples Using Hyview
5.1.3. Programming Examples using HyView 5.1.3.1 Example 1: Changing tank height Changing the actual tank height (10.000 m [33.000 ft]) to the probe (cable) length L (9.000 m [29.500 ft]) configured by the manufacturer, and saving the new parameter. Step Operation Entered data / value Open the “Device Setup”...
Page 33: Programming With The Vgf-Display Unit
The device continues measuring while the menu is accessed. Changes made in the menu take effect when you exit the menu. • If you do not exit the VF05 menu, the device will automatically return to the measurement display state after 30 minutes. In this case, any changes made in the menu will be ignored.
Page 34 Display menu hierarchy 34 / 41...
Page 35: Properties Of Vf05 Two -Wire Microwave Level Transmitter
5.3. P VF05 T ROPERTIES OF ICROWAVE EVEL RANSMITTER This chapter discusses the following topics: - How does the transmitter measure the level, what factors play a role? - Setting up and illustrating the measuring scale of the device in five possible ways.
Page 36: To Illustrate The Five Possible Configurations, The Following Fluid Level Measurement Settings Are Assumed
5.3.2. 5.3.3. To illustrate the five possible configurations, the Echo Loss Handling following fluid level measurement settings are assumed The reflected signal usually disappears when the level is in the upper dead zone or near the bottom of the tank. - To illustrate the five possible configurations, the following fluid level The zones used to handle signal loss, which can be adjusted with parameters, measurement settings are assumed:...
Page 37 5.3.3.1. Gain and Voltage Amplitude Gain factor The gain is automatically set by default to make the measured signal as ideal as The TDR guided radar emits a radar pulse and then “waits” for its reflections possible. which it registers as a time-varying voltage. It then calculates the distance from The amplitude of the signal is proportional to the dielectric factor ( ...
Page 38: Typical Signal Forms
The Main threshold is defined by “1.”, “2.”, “3.” Refer to Figure 2: Echo map on page 37. • Adjustment is only permitted in justified cases: e.g.: elevated baseline, signal level, strong noise conditions close to the level transmitter. • Signals in the area below the two extremes and below the line are not selected.
Page 39: Troubleshooting
(ESD). If the display remains frozen, the device may be damaged due to an ESD discharge and will need to be replaced. Contact HYCONTROL. “Flange not found” The instrument is incorrectly programmed for a cable or rod Contact HYCONTROL to address the fault.
Page 40 Check the power supply. The output current setting is incorrect. Perform the calibration if you have permission to do so, or contact HYCONTROL. Display shows current output value is This occurs when 4 – 20 mA / error 22 mA are programmed.
Page 41 January 2023 Hycontrol reserves the right to change technical data without notice! 41 / 41...
