Hycontrol VF05 User And Programming Manual

2-wire guided (tdr) level transmitters
Hide thumbs Also See for VF05:
Table of Contents

Advertisement

Quick Links

Download this manual
Issue 2
AH0622

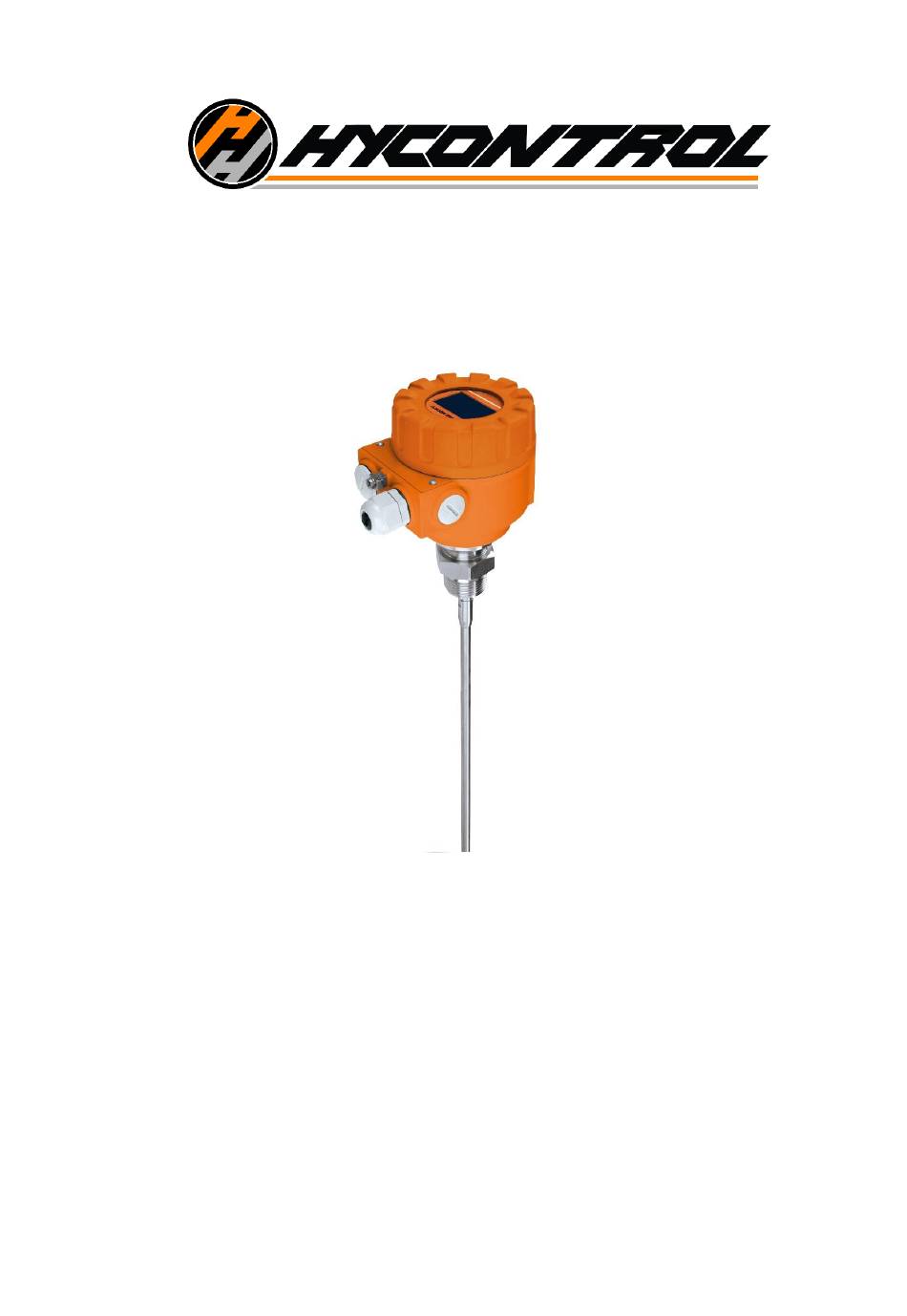

VF05
VF05 2-WIRE GUIDED (TDR)
LEVEL TRANSMITTERS
USER AND PROGRAMMING MANUAL
Hycontrol Ltd, Larchwood House, Orchard Street,
Redditch, Worcestershire, UK. B98 7DP
Tel: +44 (0)1527 406800 Fax: +44 (0) 1527 406810
Email: sales@hycontrol.com Web: www.hycontrol.com
Company registered in England No: 1755684
1 / 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VF05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hycontrol VF05

Summary of Contents for Hycontrol VF05

  • Page 1 VF05 VF05 2-WIRE GUIDED (TDR) LEVEL TRANSMITTERS USER AND PROGRAMMING MANUAL Hycontrol Ltd, Larchwood House, Orchard Street, Redditch, Worcestershire, UK. B98 7DP Tel: +44 (0)1527 406800 Fax: +44 (0) 1527 406810 Email: sales@hycontrol.com Web: www.hycontrol.com Company registered in England No: 1755684...
  • Page 2 LEVEL MEASUREMENT TECHNICAL CONCEPTS 2 / 27...

  • Page 3: Table Of Contents

    Programming with the VGF-DISPLAY: Display Unit ........................... 19 5.2.1. VGF-DISPLAY: Display Unit .................................. 19 5.2.2. The Behavior of the VF05 while Programmed Manually ........................19 5.3. Properties of VF05 Two-Wire Microwave Level Transmitter ........................21 5.3.1. Level Measurement – Level reflection, Threshold Line and Automatic Gain Adjustment ..............21 5.3.2.

  • Page 4: Introduction

    Application The VF05 two-wire guided microwave level transmitter is used to measure the distance, level, and volume of liquids, solids, and granules. The device can be used in storage and reaction tanks, rigid pipelines of suitable diameter, and level reference vessels. The device is HART capable, it can be programmed using HyView software or PACTWARE.

  • Page 5: Technical Data

    3. TECHNICAL DATA ENERAL With aluminum housing With stainless steel housing VF05–7–4, 5, 6, 8 VF05–9–4, 5, 6, 8 Measured values Distance between the reference point and the plane of the reflection (surface of the material); derived values: level, volume or weight...
  • Page 6 VF05F–– Type VF05TX–– VF05TY–– VF05TM–– VF05TQ–– VF05TI-- VF05G–– 4 mm (0.15") fully Fully PFA-coated Version 4 mm (0.15") FEP-coated cable Fully PP-coated rod FEP-coated cable Maximum measuring range 30 m (100 feet) 3 m (10 feet) Minimal measuring range 0.25 m / 0.35 m (9.84” / 13.8”) ...

  • Page 7: Explosion Protection, Designation, Limit Values

    EPAIR VF05 does not require maintenance on a regular basis. In some very rare instances, however, the probe may need cleaning to remove deposited material. This must be carried out gently, without damaging the probe. Repairs during or after the warranty period are carried out exclusively at the Manufacturer. The equipment sent back for repair should be cleaned or disinfected by the User.

  • Page 8: Installing

    1½" NPT threaded hole. h ≤ Ød, where = lifter height Ød = lifter diameter The lifter must not extend into the tank, Consult HYCONTROL if the above condition cannot as the protruding part interferes with the be met! measurement! 8 / 27...
  • Page 9 Mounting two devices Effects of material influx Using a protective tube Do not place the lifter near the material inlet If two devices have to be mounted on one The floating lid is a common solution for petrochemicals. In pipe connector. tank, they must be spaced at least 2 m such cases, the use of a damping tube is recommended.

  • Page 10: Installing The Device For Measuring Solids

    Installing the Device for Measuring Solids 4.2.2. False measured value Coning and strong tensile force on the probe The probe may not touch the lifter pipe Strong tensile force. The rope must not be anchored when measuring solids. The device is mounted at a distance of half the radius of the tank from the top of the tank with a minimum lift nozzle height.

  • Page 11: Wiring

    4.3. W IRING Wiring in non-explosive environments 1. Take the device’s lid off. 2. Put the cable through the cable gland (½" NPT) to the terminal block. 3. Remove the outer insulation for ~80 mm (~3.15″) from the cable so the wires can be accessed, then strip the wires for 4 mm.

  • Page 12: Bus

    N AND OMMISSIONING The VF05 two-wire device is supplied by HYCONTROL with the technical specifications requested by the customer, so it is ready for operation immediately after installation and wiring up. Measuring starts less than 20 seconds after switching on. Attention! The initial current consumption of the device is 3.5 mA right after switching on! If there is a change in the installation data due to shortening a cable probe, the set parameters must be changed according to the application before starting the measurement.

  • Page 13: Programming

    5. PROGRAMMING There are two ways to program the VF05. − Programming with the HyView software − Programming with the VGF-DISPLAY display unit 5.1. P ROGRAMMING WITH Installing and Running HyView 5.1.1. If necessary, install the “HyView HART Configuration Software” (hereafter HyView).
  • Page 14 Adjustable value range Name (number), function Description Default value The unit of measurement for the transmitter when the distance and level are set. Distance unit (P00b), Selectable values If “custom unit” is selected, the unit uses the unit of length as the distance unit based on the value Length unit Metric (EU): specified in “User Unit.”...
  • Page 15 Adjustable value range Name (number), function Description Default value HyView setting: “Device Settings” > “Measurement optimalization” > “Level descent rate …” VGF-DISPLAY: no adjustment available Current output, current output Path to parameters: signal settings: “Device settings” / Outputs” tab Selects the current loop output mode when transmitting current. In “Auto” mode, the output current Current loop output (P12b), Selectable values: changes proportionally to the PV (4…...
  • Page 16 Adjustable value range Name (number), function Description Default value HyView setting: “Device Settings” > “Outputs” > “De-Energized value” 5.000 m (16.400 ft) (level) VGF-DISPLAY: MAIN MENU / OUTPUT SETUP / RELAY OUTPUT / DEENERGIZED VALUE In the event that the PV measured value has reached the lower or upper switching value or an error RELAY delay (P16) 0…999 sec signal has occurred in the event of an error, the RELAY is activated and a change is visible on the...
  • Page 17 User defined multiplier (P22), 0.7…10 Adjusts the transmitted quantity by distance. If the value measured by the device differs from the value under real conditions, this multiplier can be used to adjust the result. The output value is Correction factor (measured/actual) multiplied by the number set here.

  • Page 18: Programming Example 1 (Using Hyview)

    Programming Example 1 (Using HyView): 5.1.3. Changing the actual tank height (10.000 m [33.000 ft]). To the probe (cable) length L (9.000 m [29.500 ft]) configured by the manufacturer, and saving the new parameter. Step Operation Entered data / value Open the “Device Setup”...

  • Page 19: Programming With The Vgf-Display: Display Unit

    The device continues measuring while the menu is accessed. Changes made in the menu take effect when you exit the menu. If you do not exit the VF05 menu, the device will automatically return to the measurement display state after 30 minutes. In this case, any changes made in the menu will be ignored.
  • Page 20 Menu hierarchy 20 / 27...

  • Page 21: Properties Of Vf05 Two-Wire Microwave Level Transmitter

    5.3. P VF05 T ROPERTIES OF ICROWAVE EVEL RANSMITTER This chapter discusses the following topics: - How does the transmitter measure the level, what factors play a role? - Setting up and illustrating the measuring scale of the device in five possible ways.

  • Page 22: To Illustrate The Five Possible Configurations, The Following Fluid Level Measurement Settings Are Assumed

    To illustrate the five possible configurations, The cases outlined on the right side of the figure above: 5.3.2. 1. The “current output” range is shorter than the max. possible measuring the following fluid level measurement settings are range: The 4 and 20 mA adjusters are located inside the near and far dead assumed zone on the probe, within the limits 2.
  • Page 23 Zone 3: Actual measuring zone Threshold line The threshold line is used to filter out interference. The principle of operation is By default, the device searches for the largest reflected signal along the length of as follows: the probe. If the pulse is lost, the display freezes at the last value measured in •...

  • Page 24: Typical Signal Forms

    The Main threshold is defined by “1.”, “2.”, “3.” • Adjustment is only permitted in justified cases: e.g.: elevated baseline, signal level, strong noise conditions close to the level transmitter! • Signals in the area below the two extremes and below the line are not selected. •...

  • Page 25: Troubleshooting

    *, display freezes (ESD). If the display remains frozen, the device may be damaged due to an ESD discharge and will need to be replaced. Contact HYCONTROL! “Flange not found” state * The instrument is incorrectly programmed for a cable or rod Contact HYCONTROL to address the fault.
  • Page 26 Check the connection between the device and the power supply. The output current setting is incorrect. Perform the calibration if you have permission to do so, or contact HYCONTROL. Display says the current output value This occurs when 4 – 20 mA / error 22 mA are programmed.
  • Page 27 June 2022 Hycontrol reserves the right to change technical data without notice! 27 / 27...
