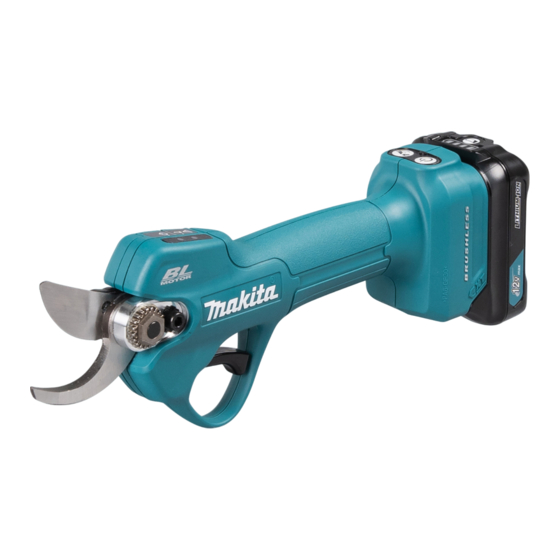

- Page 1 INSTRUCTION MANUAL Cordless Pruning Shears UP100D Read before use. Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: UP100D Max. cutting capacity 25 mm Overall length 259 mm (Without battery) Rated voltage D.C. 10.8 V - 12 V max Net weight 0.68 kg 0.89 - 1.1 kg • Due to our continuing program of research and development, the specifications herein are subject to change without notice. • Specifications may differ from country to country. *1: Weight without the battery and holster. -
Page 3: Save All Warnings And Instruc- Tions For Future Reference
Save all warnings and instruc- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left tions for future reference. attached to a rotating part of the power tool may The term "power tool" in the warnings refers to your result in personal injury. -
Page 4: Additional Safety Instructions
Maintain power tools and accessories. Check for Pruning shears safety warnings misalignment or binding of moving parts, break- age of parts and any other condition that may Do not use the pruning shear in bad weather affect the power tool’s operation. If damaged, have conditions, especially when there is a risk of the power tool repaired before use. - Page 5 Disconnect the supply and/or remove the Do not dispose of the battery(ies) in a fire. The battery pack from the tool: cell may explode. Check with local codes for possible special disposal instructions. • whenever the tool is left by the user, Do not open or mutilate the battery(ies).
-
Page 6: Parts Description
SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. 6 ENGLISH... -
Page 7: Functional Description
Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool before... -
Page 8: Indicator Lamps
Indicator lamps Main power button WARNING: Always turn off the tool when not in use. To turn on the tool, press and hold the main power button. The tool starts up in the standby mode and the green indicator lamp blinks in green. To turn off the tool, pull and hold the switch trigger more than 3 seconds to close the shear blades, then release the switch trigger, and then press the main power... -
Page 9: Cutting Depth Adjustment
Switching the shear blade angle NOTE: The upper blade returns to the shallowest position when you pull the switch trigger after the upper blade reaches the deepest position. The opening angle of the shear blades can be set in two levels. - Page 10 NOTICE: NOTICE: Do not loosen the nut before loosening When attaching the upper shear blade, the bolt. Otherwise, the nut may be damaged. make sure that the upper shear blade is placed in the direction shown in the figure. Loosen the nut with the box wrench, and then remove it.
-
Page 11: Operation
OPERATION NOTICE: Tighten the bolts with the hex wrench in the upright position as shown in the figure. Tightening the bolts too much may damage the bolts. CAUTION: Always hold the tool firmly. And keep firm footing. CAUTION: Do not put any of your body parts near the shear blades during operation. -
Page 12: Maintenance
Discoloration, deformation or cracks may result. cating oil) to the shear blades. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Shear blade maintenance NOTICE: Failure to perform blade maintenance may cause excessive blade friction and shorten the operating time per battery charge. - Page 13 Attach the bolt to the tool and tighten it with the Adjustment for shear blades hex wrench. clearance NOTICE: Adjust the clearance of shear blades properly. Too loose clearance may result in dull cut, and too tight blade clearance may result in overload for the motor and short running time of the tool.
- Page 14 Lower shear blade Grinding the shear blades Grind the lower shear blade with the grinding NOTE: When grinding the shear blades, adding water stone in the direction of the arrow as shown in the to the grinding stone will make the grinding smoother. figure.
-
Page 15: Troubleshooting
TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy The shear blade does not move even The battery is low. - Page 16 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A13-929 www.makita.com 20221128...
