HIRD GLASS KAPPEL Hydraulica 1200 Operator's Manual

Hide thumbs Also See for KAPPEL Hydraulica 1200:
Table of Contents

Advertisement

Quick Links

Download this manual
Northern (Head Office)
Tel: +44 (0)1482 227333
DISCLAIMER - ALL INSTRUCTIONS ARE SUPPLIED FROM MANUFACTURER AND WHERE CORRECT AT TIME OF PRINT
www.hird.co.uk
www.hird.co.uk
OPERATOR MANUAL
KAPPEL
Hydraulica 1200
Central
Tel: +44 (0)1302 341659
Western
Tel: +44 (0)1384 900388
Southern
Tel: +44 (0)203 174 0658
OM 1120-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAPPEL Hydraulica 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIRD GLASS KAPPEL Hydraulica 1200

Summary of Contents for HIRD GLASS KAPPEL Hydraulica 1200

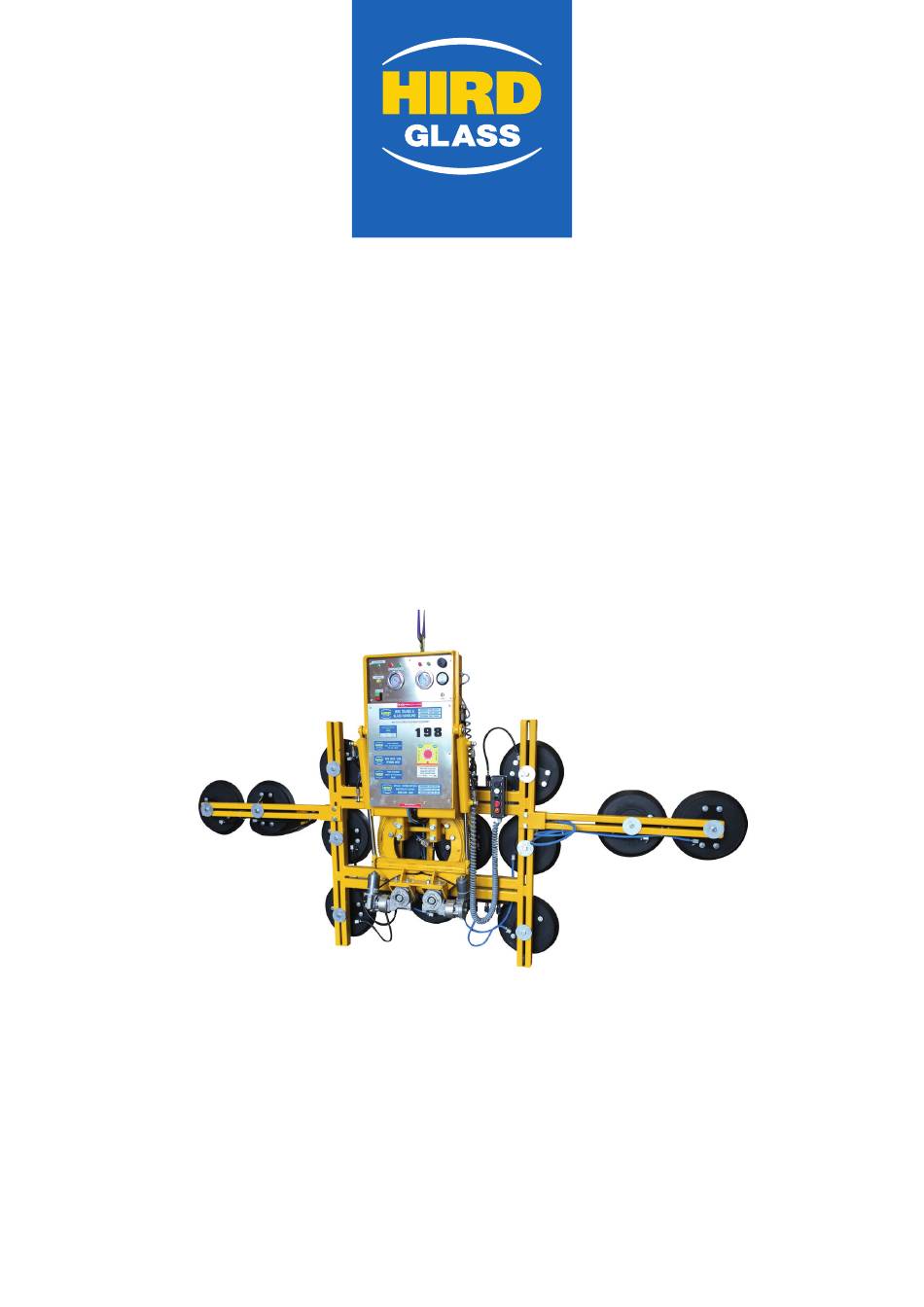

  • Page 1 www.hird.co.uk www.hird.co.uk OPERATOR MANUAL KAPPEL Hydraulica 1200 Northern (Head Office) Central Western Southern Tel: +44 (0)1482 227333 Tel: +44 (0)1302 341659 Tel: +44 (0)1384 900388 Tel: +44 (0)203 174 0658 DISCLAIMER - ALL INSTRUCTIONS ARE SUPPLIED FROM MANUFACTURER AND WHERE CORRECT AT TIME OF PRINT OM 1120-2...

  • Page 2: Technical Description

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL TECHNICAL DESCRIPTION The dual circuit Hydraulica multi-purpose vacuum lifter is capable of lifting non-porous loads of up to 1000kgs (DSH2) or larger area loads of up to 1200kgs (DSH2-1200). It features 270 manual rotation and hydraulic power tilt from 0 to 90 .

  • Page 3: Intended Use

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL HEALTH AND”SAFETY INSTRUCTIONS General 1. The DSH2 Hydraulica variants are-designed in accordance with the relevant European standard (EN13155:2003). However, operating errors and misuse will result in hazards; a - to the life of the operator and others; b - to the lifter and materials of the company and others;...

  • Page 4: Environmental Considerations

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL Emissions 8. The equivalent continuous A-weighted sound pressure level (LpA) approximately 80dbA at a distance of one meter whilst the pump and warning siren are operating a This is below the first action level as defined in the Control of Noise at Work Regulations 2005.
  • Page 5 DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL LIMITED WARRANTY AND LIABILITIES In principle, dependent upon type of supply our Hire Terms and Conditions or ‘Sales Terms and Conditions’ are valid and apply. Warranties and liability claims for injury to persons or material damaged are limited to where it can be proven that aforesaid injury or damage is due to negligence on the part of Hird Ltd or their authorised representative.

  • Page 6: Safety Devices

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL SAFETY DEVICES The DSH2 Hydraulica variants have several safety devices to prevent the loss of vacuum. The non-return valves in the vacuum pumps prevents loss of vacuum when the pump shuts of or ails.

  • Page 7: Transportation And Storage

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL TRANSPORTATION & STORAGE 1. Do not set down the suctions cups, nor try to apply them on a surface that is likely to damage the sealing lips,·such as; rough stone or concrete, sharp edges. The-resulting damage to the lips could impair the cups ability to seal when required and may lead to the loss of the load).

  • Page 8: Operation

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL OPERATION CHARGING THE BATTERY 1. Ensure that the mains supply voltage corresponds with the charger voltage i.e. 110 volts. 2. Unwind the supply cable and any extension leads fully. 3. Plug the lead receptacle onto the plug fitted on the lifter prior to inserting any other plugs.
  • Page 9 DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL OPERATION 6. Check the test plate of the lifter for: a. Safe Working Load (SWL), this will always show the maximum SWL. The current Report of Thorough Examination must be consulted to confi rm the SWL in the confi guration being used.
  • Page 10 DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL LIFTING AND POSITIONING 1. Carry out pre-use check. 2. Position lifter on load within 40mm of centre of gravity. 3. Ensure all pads are in contact with the unit surface and all relevant pad shot off taps are ON (in-line) and quick release fittings are correctly connected (extension arms only) 4.

  • Page 11: Troubleshooting

    DSH2 VARIANTS HYDRAULICA VACUUM LIFTER OPERATING AND MAINTENANCE MANUAL TROUBLESHOOTING Lifter fails to achieve 65% vacuum 1. Check whether all cups are in contact with the load . Reposition cups if necessary 2. Check that nothing is stopping the vacuum lips on the cup from forming a seal. This may be cork spacer pads, an outer lip that has curled under, etc.
  • Page 12 (Head Office) Central Tel: +44 (0)1302 341659 Vacuum Lifter Western Tel: +44 (0)1384 900388 Southern Tel: +44 (0)203 174 0658 www.hird.co.uk Kappel Hydraulica 1200 Machine Model: Site Name: Date Week Commencing: Fleet No: Address: Inspected by: Daily Pre-use Checks COMMENTS...
