OPERATOR MANUAL
KAPPEL
HYDRAULICA 2000
Central
Tel: +44 (0)1302 341659
Western
Tel: +44 (0)1384 900388
Southern
Tel: +44 (0)203 174 0658
OM 1128-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HIRD GLASS KAPPEL HYDRAULICA 2000
Summary of Contents for HIRD GLASS KAPPEL HYDRAULICA 2000

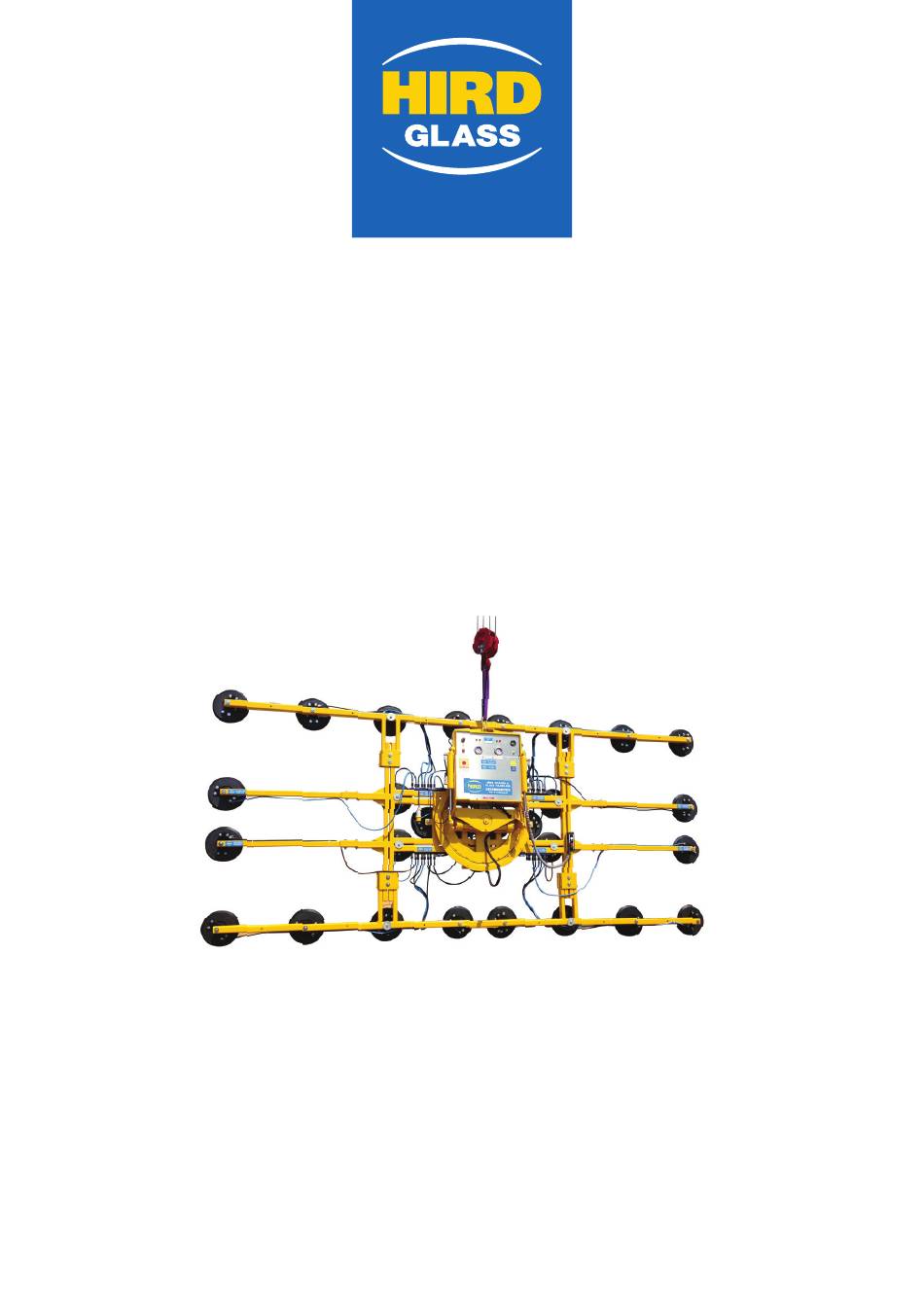

- Page 1 www.hird.co.uk www.hird.co.uk www.hird.co.uk OPERATOR MANUAL KAPPEL HYDRAULICA 2000 Northern (Head Office) Central Western Southern Tel: +44 (0)1482 227333 Tel: +44 (0)1302 341659 Tel: +44 (0)1384 900388 Tel: +44 (0)203 174 0658 DISCLAIMER - ALL INSTRUCTIONS ARE SUPPLIED FROM MANUFACTURER AND WHERE CORRECT AT TIME OF PRINT OM 1128-2...
-
Page 2: Technical Description
Both vacuum circuits must be functioning correctly and MUST ALWAYS be operated before attempting to lif the load. Failure to do so could lead to loss of the load with potentially fatal consequences. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... -
Page 3: Intended Use
6) Unauthorised alterations to the structure or operations controls of the device is prohibited for safety reasons. 7) Intended use also requires observance of the operating manual and adherence to the conditions for inspection and maintenance. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... -
Page 4: Organisational Measures
18) As a designated “accessory for lifting” the Hydraulica 2000 is subject to a thorough examination by a competent person every 6 months in accordance with the Lifting Operations and Lifting Equipment Regulation 1998, Redulation 9(3)(a)(i). OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... -
Page 5: Troubleshooting
There are no user serviceable parts within and the lifter must be returned to Pete Hird and Sons Ltd. 3) If the lifter still does not function return to Peter Hird and Sons Ltd for investigation OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... - Page 6 14) The Vacuum takes a few seconds to release, so it is vital that all the pads are free before the crane or hoisted is raised. This prevent any residual vacuum in the system from lifting the load whilst no power is applied to the pump. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk...
- Page 7 Unauthorised modification or alteration to the device; Use of the device by personnel with inadequate knowledge of the operation of vacuum devices. g) Improper repair; h) Natural catastrophe or force majeure. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk...
-
Page 8: Operation
N.B. Never attempt to lift if the battery charge is indicating below 20%. 7) If the Power light fails to illuminate, check the 2A trip S1 and reset if required. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... -
Page 9: Pre-Use Inspection
9) Turn the pumps in using green button indicated 10) Ensure that all warning lights and sirens are on during the vacuum build up. 11) Ensure vacuum reaches correct level on both circuits before pump turns off OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... - Page 10 OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk...
- Page 11 C should be avoided for storage as this may cause premature perishing of the pads and render them unsafe and unusable. 7) Preferably the lifter should be stored on its own stand or transport frame in a warm, dry atmosphere. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk...
-
Page 12: Safety Devices
5) The remote control has a “press to apply and lock – pull to release” control knob for each circuit to prevent the inadvertent release of vacuum. OPERATOR MANUAL | KAPPEL HYDRAULICA 2000 www.hird.co.uk... - Page 13 (Head Office) Central Tel: +44 (0)1302 341659 Vacuum Lifter Western Tel: +44 (0)1384 900388 Southern Tel: +44 (0)203 174 0658 www.hird.co.uk Kappel Hydraulica 2000 Machine Model: Site Name: Date Week Commencing: Fleet No: Address: Inspected by: Daily Pre-use Checks COMMENTS...
