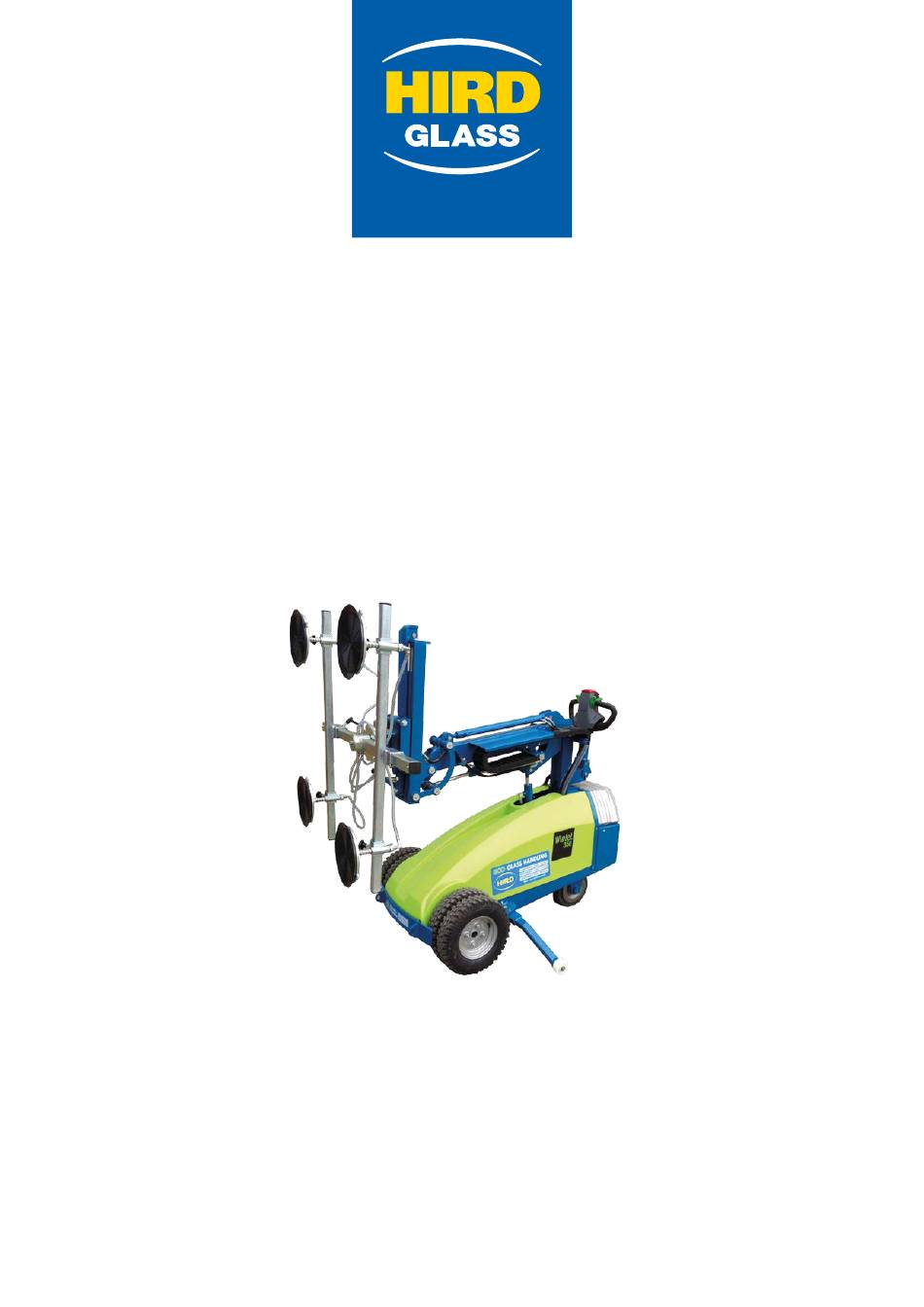

OPERATOR MANUAL
WINLET 350
Central
Southern
Northern (Head Office)
Tel: +44 (0)203 174 0658
Tel: +44 (0)1302 341659
Tel: +44 (0)1482 227333
DISCLAIMER - ALL INSTRUCTIONS ARE SUPPLIED FROM MANUFACTURER AND WHERE CORRECT AT TIME OF PRINT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINLET 350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIRD GLASS WINLET 350

  • Page 1 OPERATOR MANUAL WINLET 350 Central Southern Northern (Head Office) Tel: +44 (0)203 174 0658 Tel: +44 (0)1302 341659 Tel: +44 (0)1482 227333 DISCLAIMER - ALL INSTRUCTIONS ARE SUPPLIED FROM MANUFACTURER AND WHERE CORRECT AT TIME OF PRINT...
  • Page 2 Northern Tel: +44 (0)1482 227333 (Head Office) Central Tel: +44 (0)1302 341659 Glazing Robots Southern Tel: +44 (0)203 174 0658 www.hird.co.uk Winlet 350 Machine Model: Site Name: Date Week Commencing: Fleet No: Address: Inspected by: Daily Pre-use Checks COMMENTS Are all operators manuals present and readable...
  • Page 3: Table Of Contents

    Description Safety instructions Operation and safety Safety test (before starting) Use of WinLet 350 Running Lifting and handling Service/maintenance Storage and lifting of WinLet 350 Servicing Troubleshooting Charging the batteries Service/maintenance Specifications CE – EU declaration of conformity Version: 2011-UK-6...
  • Page 4: Description

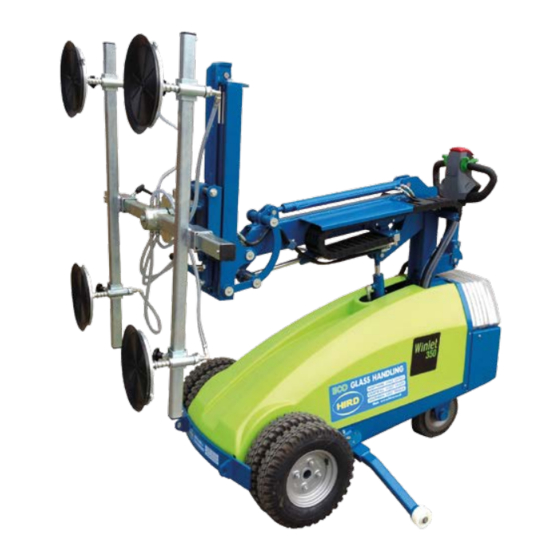

    8 Operating box Description WinLet 350 is a battery-operated window robot with a lifting capacity of 350 kg. The truck is made by GMV A/S to facilitate conveying and mounting of window elements or similar sealed items. WinLet 350 can also be supplied with other specially made lifting and handling fixtures to enable conveying and handling of other types of heavy loads.
  • Page 5: Safety Instructions

    Before use, check that the WinLet 350 is not damaged in any way that could impair safety. • Never use the WinLet 350 when the battery indicator is lit up red, as this could ruin the battery. Instead, charge as •...
  • Page 6: Operation And Safety

    3 Drive direction/speed regulator 4 Safety cut-out switch (stomach WinLet 350 is equipped with a standard type of manoeuvring handle. This incorporates a number of safety functions. Safety switch ("stomach switch”); when activated, stops the movement of the window robot. Once •...
  • Page 7 Place all suction cups on a level, dry and airtight surface (e.g. a window). Start the WinLet 350 at the on/off button and wait until the red lamps go out on the operating panel. Now activate the vacuum by engaging both buttons on the operating panel at the same time.
  • Page 8: Lifting And Handling

    Using the vacuum function: Start the WinLet 350 with the on/off button. Press both buttons for the vacuum function on the operating panel and wait a moment until both red LED lamps go out. During this time, a vacuum of at least 60% has been created in the vacuum system.
  • Page 9 ! Make sure the load is placed securely and that it cannot slide after being put down! Handling of load (use of hydraulic cylinders) The WinLet 350 is equipped with an electro-hydraulic system which makes it possible to move the lifting arm of the machine in 4 different directions: 1.
  • Page 10: Running

    The stated values are for reference. And based on a 100% level surface. The WinLet 350 is equipped with load monitoring whereby a red lamp flashes on the operating panel when approaching the max. capacity in a given position. At this warning, all cylinders must be retracted. If you continue running the cylinders "outwards", the warning lamp will remain on constantly and there is a risk of...
  • Page 11: Servicing

    Charging/batteries Important! The WinLet 350 contains batteries with battery acid. Exercise great care with any leaked acid. Normally, acid can only leak if the machine overturns. If any acid comes into contact with skin or eyes, flush with plenty of water, and seek medical advice if required.
  • Page 12: Service/Maintenance

    Service/maintenance General The WinLet 350 is designed to cope with the demands and the environment extant at a construction site, but its service life and safety can be reduced considerably if the stated service/maintenance items are not complied with.
  • Page 13 Bearing liner – side shift The two bearing liners in the side-shift mechanism in the front are fitted with lubrication nipples for a grease gun. To guarantee the performance of the window robot and to avoid unnecessary repair costs, it is important to lubricate these lubrication nipples regularly and as required.
  • Page 14: Specifications

    Specifications: Max. load 350 kg Width 690 mm External length 1450 mm Intrinsic weight 390/495kg Min. extension 550 mm Max. protrusion 1050 mm Max. height of centre lifting yoke 2850 mm Lateral displacement 100 mm Fine hoisting in tower 500 mm Rotation 360 degrees Suction cups...
  • Page 15: Ce – Eu Declaration Of Conformity

    CE – EU Declaration of conformity Manufacturer Company name: GMV Manufacturing A/S Address: Industriparken 1 Post code: DK-7182 Bredsten Tel.: +45 7573 8247 Responsible for the technical dossier Authorised to prepare the technical dossier: Jesper Faurskov GMV Manufacturing A/S Industriparken 1 DK-7182 Bredsten hereby declares that Machine...
